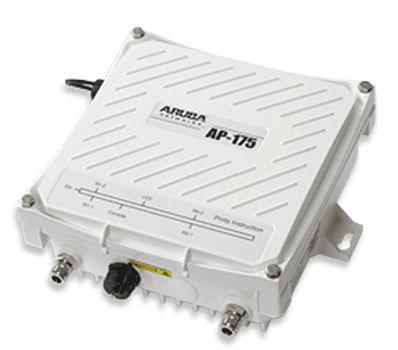

Aruba AP-175 Access Point
Features two 2x2 MIMO dual-band 2.4-GHz/5-GHz radios with quad antenna interfaces.
| Aruba Networks Products | ||
|---|---|---|
| Aruba Wireless Access Point | ||
| Aruba AP-175P Outdoor Access Point, PoE 802.11n dual 2x2 320mW; POE *Requires ArubaOS 5.0.2.1 or 6.0 (or later) |
AP-175P List Price: $2,295.00 Our Price: $2,065.00 |
|
| Aruba AP-175AC Outdoor Access Point, AC Powered 802.11n 2x2 dual radio 320mW; AC powered (with PSE) *Requires ArubaOS 5.0.2.1 or 6.0 (or later) |
AP-175AC List Price: $2,595.00 Our Price: $2,335.00 |
|
| Aruba AP-175DC Outdoor Access Point, DC Powered 802.11n 2x2 dual radio 320mW; DC powered (with PSE) *Requires ArubaOS 5.0.2.1 or 6.0 (or later) |
AP-175DC List Price: $2,595.00 Our Price: $2,335.00 |
|
Aruba AP-175 Access Point:
Overview:
The multifunction AP-175 is an affordable, fully hardened outdoor 802.11n access point (AP) that provides maximum deployment flexibility in high-density campuses, storage yards, warehouses, container/transportation facilities, extreme industrial production areas and other harsh environments. The highperformance AP-175 delivers wire-like performance at data rates up to 300 Mbps per radio.
The AP-175 features two 2x2 MIMO dual-band 2.4-GHz/5-GHz radios with quad antenna interfaces. Each radio is capable of providing a maximum aggregate transmit power of up to 25dBm.
With wall and mast mounting options, the AP-175 is built to provide years of trouble-free operation. Engineered to survive in harsh outdoor environments, the AP-175 withstands exposure to high and low temperatures, persistent moisture and precipitation, and is fully sealed for protection from airborne contaminants. All electrical interfaces include industrial-strength surge protection.
As an 802.11n AP, the AP-175 works with Aruba’s centralized Mobility Controllers to enable the use of wireless as a primary connection with speed and reliability comparable to a wired LAN. It also increases performance by utilizing techniques such as channel bonding, block acknowledgement and MIMO radios. Advanced antenna technology also increases range and reliability.
The key to ensuring wire-like performance and reliability is Aruba’s unique Adaptive Radio Management (ARM) and spectrum analysis* capabilities, which manage the 2.4-GHz and 5-GHz radio bands to mitigate RF interference and maximize Wi-Fi client performance.
The multifunction AP-175 can be configured through the Aruba Mobility Controller to provide wireless LAN access with parttime air monitoring, dedicated air monitoring for wireless IPS and spectrum analysis, Remote AP (RAP) functionality or secure enterprise mesh.
The AP-175 can operate either from standard 802.3at power-over-Ethernet (PoE+) sources (AP-175P model), a 100-240 volt AC power source (AP-175AC model), or a 12-48 volt DC power supply or solar and plant bus power sources. The AC and DC powered models provide an 802.3af POE power source (PSE) on the Ethernet interface.
Specifications:
| Technical Specifications for AP-175 | |
|---|---|
| Application | |
| 802.11n outdoor AP provides maximum deployment flexibility in high-density campuses, storage yards, warehouses, container/transportation facilities, extreme industrial production areas and other harsh environments. | |
| Operating Mode | |
| 802.11a/b/g/n AP, air monitor (AM) and Remote AP (RAP) Spectrum monitor, AM and RAP AM and RAP Remote AP Secure enterprise mesh |
|
| Radios | |
| Software-configurable dual radio capable of supporting 2.4 GHz and 5 GHz 802.11n capable, implementing 2x2 MIMO with two spatial streams, providing up to 300 Mbps data rate per radio • Maximum (aggregate) transmit power per radio: 25dBm |
|
| RF Management | |
| Automatic transmit-power and channel-management control with auto coverage-hole correction via Adaptive Radio Management (ARM)
Spectrum analysis* remotely scans the 2.4-GHz and 5-GHz radio bands to identify sources of RF interference. This provides visibility into non-802.11 RF interference sources and their effect on 802.11 channel quality |
|
| Advanced Features | |
| Integrated RAP, secure enterprise mesh point or portal, and wireless intrusion detection and prevention | |
| Antenna | |
| Quad, N-type female interfaces (2 x 2.4 GHz, 2 x 5 GHz) for external antenna support (supports MIMO) Feeder cable may be used for external antenna deployments |
|
| Wireless Radio Specifications | |
| AP type: | Dual-radio, dual-band 802.11n outdoor |
| Supported Frequency Bands (country-specific restrictions apply): | 2.400 - 2.4835 GHz 5.150 - 5.250 GHz 5.250 - 5.350 GHz 5.470 - 5.725 GHz 5.725 - 5.850 GHz |
| Available Channels: | Controller-managed, dependent upon configured regulatory domain |
| Supported Radio Technologies: | 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n: Orthogonal frequency division multiplexing (OFDM) 802.11n: 3x3 MIMO with 2 spatial streams |
| Supported Modulation Types: | 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM |
| Transmit Power: | Configurable in increments of 0.5 dBm |
| Maximum Transmit Power: | 2.4GHz: 25 dBm (limited by local regulatory requirements) 5 GHz: 25 dBm (limited by local regulatory requirements) |
| Maximum ratio combining (MRC) for improved receiver performance | |
| Association Rates (Mbps): | 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: MCS0 - MCS15 (6.5 Mbps to 300 Mbps) |
| 802.11n High-Throughput (HT) Support: | HT 20/40 |
| 802.11n Packet Aggregation: | A-MPDU, A-MSDU |
| Power In | |
| AP-175P: | 48-volt DC 802.3at power over Ethernet (PoE+) |
| AP-175AC: | 100-240 volt AC from external AC power source |
| AP-175DC: | 12-48 volt DC from external DC power source |
| Maximum Power Consumption: | 18 watts (excludes power consumed by any PoE device connected to and powered by the AP-175AC or AP-175DC) |
| Power Out | |
| The AC and DC powered models provide an 802.3af PoE power source (PSE) on the Ethernet interface. | |
| Interfaces | |
| Network: | 1 x 100/1000Base-T Ethernet (RJ-45), auto-sensing link speed and MDI/MDX |
| Power: | 1 x DC power connector (in AP-175DC model only) 1 x AC power connector (in AP-175AC model only) |
| Antenna: | 4 x N-Type female antenna interfaces |
| Other: | 1 x USB console interface |
| Mounting | |
| Wall or mast mounted using the mounting bracket supplied with the unit; solar shield included | |
| Mechanical | |
| Dimensions / Weight (unit): | 260 mm x 240 mm x 105 mm (10.2" x 9.4" x4.1") 3.25 kg (7 lb) |
| Dimensions / Weight (shipping): | 330 mm x 320 mm x 300 mm (12.9" x 12.6"x 11.8") 7.5 kg (16.6 lb) |
| Environmental | |
| Operating: | Temp: -30º C to 60º C (-22º F to 140º F) for PoE powered models; -40º C to 55º C (-40º F to 131º F) for AC and DC powered models Relative humidity: 5% to 95% non-condensing Altitude: Up to 3,000 meters (9,850 feet) |
| Storage and Transportation Temperature Range: | -40° C to +70° C (-40° F to +158° F) |
| Weather Rating: | IP66 |
| Wind Survivability: | Up to 165 mph |
| Shock and Vibration: | ETSI 300-19-2-4 spec T41.E class 4M3 |
| Transportation: | ISTA 2A |
| Regulatory | |
| FCC/Industry of Canada | R&TTE Directive - 1995/5/EC |
| EN 300 328 | EN 301 893 |
| CB Scheme Safety, cTUVus | Korea KCC |
| Mexico NOM/COFETEL | UL2043 Compliant |
| CE Marked | Low Voltage Directive - 72/23/EEC |
| EN 301 489 | UL/IEC/EN 60950 |
| Japan MIC/VCCI | Brazil ANATEL |
| China SRRC/CCC | |
| Certifications | |
| Wi-Fi certified: | 802.11a/b/g/n |
| Warranty | |
| Limited lifetime warranty | |
Wireless Radio Specifications:
| RF Performance Table | ||||
|---|---|---|---|---|
| Max TX power (dBm) | RX Sensitivity (dBm) | Max TX power (dBm) | RX Sensitivity (dBm) | |
| AP-68 | AP-68P | |||
| 802.11b | ||||
| 1 Mbps | 20 | -96 | ||
| 2 Mbps | 20 | -96 | ||
| 5.5 Mbps | 20 | -94 | ||
| 11 Mbps | 20 | -93 | ||
| 802.11a/g | ||||
| 6 Mbps | 20 | -96 | 22 | -97 |
| 9 Mbps | 20 | -96 | 22 | -96 |
| 12 Mbps | 20 | -96 | 22 | -96 |
| 18 Mbps | 20 | -95 | 22 | -94 |
| 24 Mbps | 19 | -92 | 22 | -88 |
| 36 Mbps | 18 | -89 | 20 | -86 |
| 48 Mbps | 17 | -85 | 19 | -82 |
| 54 Mbps | 17 | -83 | 18 | -80 |
| 802.11n HT20 | ||||
| MCS0 | 22 | -94 | 21 | -97 |
| MCS1 | 22 | -93 | 20 | -94 |
| MCS2 | 22 | -92 | 19 | -91 |
| MCS3 | 22 | -89 | 18 | -87 |
| MCS4 | 21 | -85 | 17 | -86 |
| MCS5 | 20 | -81 | 16 | -81 |
| MCS6 | 19 | -80 | 15 | -79 |
| MCS7 | 18 | -78 | 15 | -77 |
| MCS8 | 22 | -94 | 21 | -97 |
| MCS9 | 22 | -93 | 20 | -94 |
| MCS10 | 22 | -92 | 19 | -91 |
| MCS11 | 22 | -89 | 18 | -87 |
| MCS12 | 21 | -85 | 17 | -86 |
| MCS13 | 20 | -81 | 16 | -81 |
| MCS14 | 19 | -80 | 15 | -79 |
| MCS15 | 18 | -78 | 15 | -77 |
| 802.11n HT40 | ||||
| MCS0 | 21 | -92 | 19 | -92 |
| MCS1 | 21 | -91 | 19 | -90 |
| MCS2 | 21 | -89 | 18 | -88 |
| MCS3 | 20 | -86 | 17 | -85 |
| MCS4 | 19 | -83 | 16 | -83 |
| MCS5 | 18 | -79 | 15 | -79 |
| MCS6 | 18 | -77 | 14 | -77 |
| MCS7 | 17 | -75 | 14 | -73 |
| MCS8 | 21 | -92 | 19 | -92 |
| MCS9 | 21 | -91 | 19 | -90 |
| MCS10 | 21 | -89 | 18 | -88 |
| MCS11 | 20 | -86 | 17 | -85 |
| MCS12 | 19 | -83 | 16 | -83 |
| MCS13 | 18 | -79 | 15 | -79 |
| MCS14 | 18 | -77 | 14 | -77 |
| MCS15 | 17 | -75 | 14 | -73 |
Maximum capability of the hardware provided. Maximum transmit power will be limited by local regulatory settings.
Products Comparision:
| Aruba Indoor 802.11 a/b/g/n Access Point Description | ||||||
|---|---|---|---|---|---|---|
 |
The multifunction AP-68 and AP-68P2 are low-cost 802.11n access points (APs) for small, very low-density deployments in offices, hospitals, schools and retail stores. The non-MIMO AP-68 has one 2.4-GHz radio with 100-milliwatt transmit power and two internal antennas while the AP-68P has one 2.4-GHz radio with 500-milliwatt transmit power and an external antenna. Both APs provide WLAN access with part-time air monitoring, dedicated air monitoring for wireless IPS, Remote AP (RAP) functionality or secure enterprise mesh. | |||||
 |
The multifunction AP-92 and AP- 93 are entry-level indoor 802.11n access points (APs) designed for low-density deployments in offices, hospitals, schools and retail stores. The AP-92 features a single 2x2 MIMO dual-band 2.4-GHz/5-GHz radio with external antennas while the AP-93 features the same radio with internal antennas. Both APs can provide WLAN access with part-time air monitoring for wireless IPS and spectrum analysis, dedicated air monitoring for wireless IPS and spectrum analysis, Remote AP (RAP) functionality or secure enterprise mesh. | |||||
 |
The multifunction AP-105 is an affordable indoor 802.11n access point (AP) designed for high-density deployments in offices, hospitals, schools and retail stores. It features two 2x2 MIMO dual-band 2.4-GHz/5- GHz radios with two internal omni-directional antennas, plus ceiling and wall mounting options. The AP-105 can provide WLAN access with part-time air monitoring for wireless IPS and spectrum analysis, dedicated air monitoring for wireless IPS and spectrum analysis, Remote AP (RAP) functionality or secure enterprise mesh. | |||||
 |
The multifunction AP-120 and AP-121 are indoor 802.11n access points (APs) designed for maximum deployment flexibility in low-density environments that require above-ceiling or enclosure-based installations. The AP-120 features a single 3x3 MIMO dual-band 2.4-GHz/5GHz radio with detachable antenna interfaces while the AP-121 features the same radio with integrated antenna elements. Both APs can provide WLAN access with part-time air monitoring for wireless IPS and spectrum analysis, dedicated air monitoring for wireless IPS and spectrum analysis, Remote AP (RAP) functionality or secure enterprise mesh. | |||||
 |
The multifunction AP-124 and AP-125 are ultra-high-performance indoor 802.11n access points (APs) designed for maximum deployment flexibility in high-density environments. The AP-124 features two 3x3:2 MIMO radios (2.4GHz / 5GHz) with external antenna interfaces while the AP-125 features the same radios with integrated antenna elements. Both APs can provide WLAN access with parttime air monitoring for wireless IPS and spectrum analysis, dedicated air monitoring for wireless IPS and spectrum analysis, Remote AP (RAP) functionality or secure enterprise mesh. | |||||
 |
The two-radio, multifunction AP-134 and AP-135 are ultra-high performance indoor 802.11n access points (APs) designed for high-density environments. The AP-134 features two 3x3:3 MIMO radios (2.4GHz / 5GHz) with external antenna interfaces while the AP-135 features the same radios with integrated antenna elements. Compared to 3x3:2 and 2x2:2 MIMO radios, AP-134 and 135 radios offer 50% greater aggregate performance. Both APs can provide WLAN access with part-time air monitoring for wireless IPS and spectrum analysis, dedicated air monitoring for wireless IPS and spectrum analysis, Remote AP (RAP) functionality or secure enterprise mesh. | |||||
| Aruba Indoor 802.11 a/b/g/n Access Point Product Line Matrix | ||||||
| AP-68 & AP-68P | AP-92 & AP-93 | AP-105 | AP-120 & AP-121 | AP-124 & AP-125 | AP-134 & AP-135 | |
| Applications1 | ||||||
| Campus AP | Yes (ArubaOS 6.0+) | Yes (ArubaOS 5.0.1+) | Yes (ArubaOS 3.3.3+ or ArubaOS 3.4.1+) | Yes | Yes | Yes (ArubaOS 6.1+) |
| Remote AP | Yes (ArubaOS 6.0+) | Yes (ArubaOS 5.0.1+) ) | Yes (ArubaOS 3.3.3+ or ArubaOS 3.4.1+) | Yes (ArubaOS 3.3.2+) | Yes (ArubaOS 3.3.2+) | Yes (ArubaOS 6.1+ |
| Mesh | Yes (ArubaOS 6.0+) | Yes (ArubaOS 5.0.1+) | Yes (ArubaOS 3.3.3+ or ArubaOS 3.4.1+) | Yes (ArubaOS 3.4+) | Yes (ArubaOS 3.4+) | Yes (ArubaOS 6.1+) |
| Remote Mesh | Yes (ArubaOS 6.0+) | Yes (ArubaOS 5.0.1+) | Yes (ArubaOS 3.4.1+) | Yes (ArubaOS 3.4+) | Yes (ArubaOS 3.4+) | Yes (ArubaOS 6.1+) |
| Air Monitor (AM) | Yes (ArubaOS 6.0+) | Yes (ArubaOS 5.0.1+) | Yes (ArubaOS 3.3.3+ or ArubaOS 3.4.1+) | Yes | Yes | Yes (ArubaOS 6.1+) |
| AP and AM | Yes (ArubaOS 6.0+) | Yes (ArubaOS 5.0.1+) | Yes (ArubaOS 3.3.3+ or ArubaOS 3.4.1+) | Yes | Yes | Yes (ArubaOS 6.1+) |
| Spectrum Analysis | No. | Yes. Spectrum analysis (enabled with ArubaOS 6.0+) remotely scans the 2.4-GHz and 5-GHz radio bands to identify sources of RF interference. This provides visibility into non-802.11 RF interference sources and their effect on 802.11 channel quality. Monitors 4.9GHz frequency band when in dedicated Air Monitor (AM) mode. | Yes. Spectrum analysis (enabled with ArubaOS 6.0+) remotely scans the 2.4-GHz and 5-GHz radio bands to identify sources of RF interference. This provides visibility into non-802.11 RF interference sources and their effect on 802.11 channel quality. Interference classification, real-time FFT and Spectograms are not supported on AP-12x series. Monitors 4.9GHz frequency band when in dedicated Air Monitor (AM) mode. | Yes. Spectrum analysis remotely scans the 2.4-GHz and 5-GHz radio bands to identify sources of RF interference. This provides visibility into non-802.11 RF interference sources and their effect on 802.11 channel quality. | ||
| Number of Radios | Single Radio | Single Radio | Dual Radio 3 | Single Radio | Dual Radio 3 | Dual Radio 3 |
| Operating Frequencies | 2.4-2.5 GHz Radio channel availability is centrally managed by the controller, based on configured regulatory domain |
.4-2.5 GHz 5.150-5.950 GHz Radio channel availability is centrally managed by the controller, based on configured regulatory domain |
||||
| DFS Support | Not applicable | Yes (ETSI/EU, MKK/JP), planned (FCC/US) | Yes (ETSI/EU, MKK/JP), planned (FCC/US) | Yes | Yes | Yes (ETSI/EU, MKK/JP), planned (FCC/US) |
| RF Management | Adaptive Radio Management (ARM) provides dynamic, application-aware channel management to maximize network capacity and ensure fairness in bandwidth availability per user. Capabilities include adaptive power and channel assignments, coordinated access to a single channel, band steering, channel load balancing, airtime fairness, airtime performance protection and coverage hole detection. In addition, spectrum analysis remotely scans the 2.4-GHz and 5-GHz radio bands to identify sources of RF interference. This provides visibility into non-802.11 RF interference sources and their effect on 802.11 channel quality. | |||||
| Antennas | AP-68: Integrated, omni-directional antenna elements (supporting receive spatial diversity). Antenna gain: 3 dBi (max) AP-68P (available only in China): RP-SMA interface for external antenna support |
AP-92: Dual RP-SMA interfaces for external dual-band antenna (supports 2x2 MIMO spatial diversity) AP-93: Integrated, dual, omni-directional dual-band dipole (supports 2x2 MIMO spatial diversity) |
Integral, Dual, Omni-directional Dual-Band dipole (supports 2x2 MIMO spatial diversity) | AP-120: Tri (3x3), RP-SMA interfaces for external antenna support (supports 3x3 and below MIMO spatial diversity) AP-121: Integral, Tri (3x3), Omni-directional Dual-Band dipole (supports 3x3 and below MIMO spatial diversity) |
AP-124: Tri (3x3), RP-SMA interfaces for external antenna support (supports 3x3 and below MIMO spatial diversity) AP-125: Integral, Tri (3x3), Omni-directional Dual-Band dipole (supports 3x3 and below MIMO spatial diversity) |
AP-134: Three RP-SMA antenna interfaces for external dual-band antennas (supports 3x3 and below MIMO spatial diversity) AP-135: Six internal downtilt omnidirectional antennas; 3 per frequency band (supports 3x3 and below MIMO spatial diversity) |
| Network Interfaces | 1 x 10/100BASE-T Ethernet (RJ- 45), auto-sensing link speed and MDI/MDX | 1x10/100/1000BASE-T Ethernet (RJ-45), auto-sensing link speed and MDI/MDX | 1x10/100/1000BASE-T Ethernet (RJ45), Auto-sensing link speed and MDI/MDX | 2x100/1000BASE-T Ethernet (RJ45) , Auto-sensing link speed and MDI/ MDX | 2x100/1000BASE-T Ethernet (RJ45) , Auto-sensing link speed and MDI/ MDX | 2x100/1000BASE-T Ethernet (RJ45), Auto-sensing link speed and MDI/DX Supports MACS |
| Other Interfaces | Console interface (RJ-45) | Console interface (RJ-45) | Console interface (RJ45) | Console interface (RJ45) | Console interface (RJ45) | Console interface (RJ45) |
| Power over Ethernet (PoE) Interfaces | 48 V DC 802.3af compliant | 48 V DC 802.3af compliant | 48 V DC 802.3af compliant | 48 V DC 802.3af or 802.3at or PoE + inter operable with intelli-source PSE sourcing intelligence (both ports) | 48 V DC 802.3af or 802.3at or PoE + inter operable with intelli-source PSE sourcing intelligence (both ports) | 48 V DC 802.3af or 802.3at or PoE+ inter operable with intelli-source PSE sourcing intelligence (both ports) |
| DC Power Interfaces | 12 V | 12 V, 1.25 A | 12 V , 1.25 A | 5 V, 2.4 A | 5 V, 3.2 A | 12 V, 1.25A |
| Power Consumption | 8 watts (maximum) | 10 watts (maximum) | 12.5 watts (maximum) | 12 watts (maximum) | 16 watts (maximum) | 15 watts (maximum) |
| Environmental | ||||||
| Class | Indoor | Indoor, plenum-rated | Indoor, plenum-rated | Indoor, plenum-rated | Indoor, plenum-rated | Indoor, plenum-rated |
| Operating Temperature | 0° C to +40° C (+32° F to +104° F) | 0° C to +50° C (+32° F to +122° F) | 0° C to +50° C (+32° F to +122° F) | 0° C to +50° C (+32° F to +122° F) | 0° C to +50° C (+32° F to +122° F) | 0° C to +50° C (+32° F to +122° F) |
| TAA | Planned | Planned | Yes | No | No | No |
| TAA/FIPS (AP HW) | Planned | Planned | Planned | No | Yes | Planned |
| FIPS (SW) | Planned | Planned | Planned | ArubaOS 3.3-FIPS | ArubaOS 3.3-FIPS | Planned |
| CC-EAL | Planned | Planned | Planned | Planned | Planned | Planned |
| Product Warranty | 1 year parts and labor | Limited lifetime | Limited lifetime | Limited lifetime | Limited lifetime | Limited lifetime |
[1] Concurrent operation of both radios in the same frequency band (2.4GHz / 5GHz) is NOT supported
