Aruba Instant AP-205 Access Point
Bringing 802.11ac to the masses

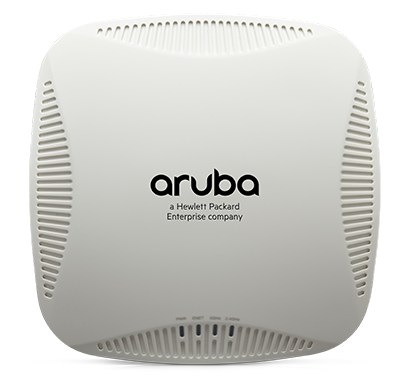

Aruba AP-205 Access Point

Looking for a better price? Call our Sales team today - 844-356-5141 or click here to request a quote.

Aruba Networks Products
Aruba Wireless Access Point
Aruba Instant IAP-205 802.11n/ac Dual 2x2:2 Radio Integrated Antenna Access Point
#JW213A
List Price: $695.00
Our Price: $625.00

Click here to jump to more pricing!

HPE Aruba 5 for 3 Bundle Promotion

Overview:

Multifunctional and affordable Aruba 200 series 802.11ac wireless APs maximize mobile device performance in medium-density enterprise Wi-Fi environments.

These compact and cost-effective dual-radio APs deliver wireless data rates of up to 867 Mbps to 5-GHz devices with 802.11ac technology leveraging two spatial MIMO streams while simultaneously suppor ting 2.4-GHz 802.11n clients with data rates of up to 300 Mbps.

The AP-205 and IAP-205 models feature four integrated omni-directional downtilt antennas, while the AP-204 and IAP-204 support external detachable dual-band antennas using two RP-SMA antenna connectors.

Get a big performance advantage
Get a big performance advantage

Patented ClientMatch technology improves performance and eliminates sticky client behavior while roaming.

Protect service quality over the air
Protect service quality over the air

AppRF technology enables prioritization and policy enforcement for business-critical enterprise apps like Microsoft Lync.

You have the freedom to choose
You have the freedom to choose

The 200 series can be managed by an Aruba Mobility Controller or deployed in controllerless Aruba Instant mode.

Choose your operating mode

The 200 series APs offer a choice of operating modes to meet your unique management and deployment requirements.

  • Controller-managed AP or Remote AP (RAP) running ArubaOS.
    When managed by Aruba Mobility Controllers, 200 series APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding. Please refer to the Aruba Mobility Controller data sheets for more details.
  • Aruba Instant AP running InstantOS.
    In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up on Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes.

For large installations across multiple sites, the Aruba Activate ser vice significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, Instant APs are factory-shipped to any site and configure themselves when powered up.

If WLAN requirements change, a built-in migration path allows 200 series Instant APs to become part of a WLAN that is managed by a Mobility Controller.

Aruba Instant Wi-Fi:

Solution Benefits

Fastest network

  • Up to 36%* faster than competition at high density.
  • Wi-Fi setup in minutes.
  • Airtime fairness allows more clients to move faster on the network.
  • Always-on scanning avoids performance-slowing interference.
  • Aruba Instant APs optimize Wi-Fi channel use and power to speed-up clients.

Most resilient network

  • 100% functional WLAN without a WAN link.
  • Integrated spectrum management without compromise to identify and self- heal around Wi-Fi and non-Wi-Fi interference.
  • Redundant ISP uplink and 3G/4G uplink option.

Most flexible architecture

  • Single architecture across headquarters, branch and home.
  • Local, cloud and on-premises management options.
  • AppRF technology performs deep packet inspection and web content filtering.
  • Internal RADIUS server on Aruba Instant AP, plus flexible external AAA options.
  • 100% investment protection to convert to controller-managed APs.

* Based on internal testing – IAP225 50 client downstream throughput testing.

The undisputable need for users to be productive on their mobile devices is driving organizations everywhere to look for ways to cost-effectively build and support Wi-Fi networks that deliver the best connectivity and user experience.

Controllerless Wi-Fi solutions are simple and affordable. They eliminate the need for additional controller hardware by distributing controller functionality such as authentication and configuration to the access points (AP).

However, not all controllerless solutions are equal. Some solutions may have some serious limitations if speed and reliability associated with business-grade networks are sacrificed in favor of simplicity. The result can be Wi-Fi disruptions, poor performance, and unhappy users.

Business-Grade Wi-Fi in an Instant

Aruba Instant is the only controllerless Wi-Fi solution that delivers superior Wi-Fi performance, business-grade security, resiliency and flexibility with the simplicity of zero-touch deployment. Aruba Instant is simple to setup and does not require network expertize to deploy and manage.

One dynamically-elected Instant AP automatically distributes the network configuration to other Instant APs in the network. Simply power-up one Instant AP, configure it over the air or in the cloud, and plug in the other APs – the entire process takes about five minutes.

The free local management interface, unique to Aruba Instant APs, eliminates dependency or required investment in external network management systems. Instant is a turnkey business-grade Wi-Fi solution that works right out of the box.

Even guest access to your network can be secure and uncomplicated for you and all yours visitors. Simply create a guest network (SSID) and determine who gets access, how and what they have access to.

Use the simple built-in captive portal or a customizable externally hosted portal for guests to easily login. And secure the network by authenticating users with built-in guest accounts or integrate with external authentication servers.

Enhance User Experience and Productivity

Aruba Instant's business-grade network performance delivers speeds up to 10-times faster than other solutions in environments with high densities of devices. The Aruba InstantOS comes with integrated Adaptive Radio Management (ARM) technology, which optimizes Wi-Fi behavior and automatically ensures that the Instant APs stay clear of RF interference, resulting in a more reliable, higherperforming wireless network.

It also integrates patented ClientMatch technology, which continuously gathers session performance metrics from mobile devices. These metrics are then used to intelligently steer individual clients to the best AP with the strongest Wi-Fi signal as users move.

The Aruba 802.11ac Wave 2 Instant APs deliver enhanced multi-user MIMO (MU-MIMO) enhanced ClientMatch. By grouping MU-MIMO capable devices on the same stream, the network can take advantage of the simultaneous transmissions to these devices, increasing its overall network capacity and efficiency. These Wave 2 Instant APs also have an integrated BLE Beacon to remotely manage battery-powered Aruba Beacons for advanced location and wayfinding applications.

Secure and Optimize your Network with Smart Application Handling

AppRF technology in Aruba Instant intelligently monitors application usage and web traffic to secure and optimize network performance.

Deep packet inspection (DPI) monitors mobile app usage and performance while optimizing bandwidth, priority and network paths in real time – even for apps that are encrypted or appear as web traffic. DPI is vital to understanding usage patterns that may require changes to network design and capacity.

AppRF provides insight into over 1,800 apps, including apps like GoToMeeting, Box, Skype for Business, SharePoint, and Salesforce.com. AppRF technology also provides web content filtering, enabling IT to control what users can browse on the Internet. AppRF redirects web URL requests to a cloud database that contains always-up-to-date content and reputation information about millions of web pages.

This information can be used to determine what types of web browsing and web apps are allowed on the network for different users or different times of day. You can even combine rules that allow Facebook traffic but block other social media or permit Netflix traffic only after business hours.

The AppRF cloud database is updated in real-time with new information about malicious web addresses. Aruba AppRF will catch new types of web attacks before they cause damage. Clients can be configured to use the AppRF web content filter even when they're not connected to an Aruba Instant network, which keeps clients safe no matter where they are.

Whether users are local or remote, AppRF web content filtering is instrumental in protecting the network against viruses and malware and gives IT precise control over which web sites users can access.

Avoid Business Disruptions due to Wi-Fi Failure

Aruba Instant is a resilient network with advanced businessgrade features that keep networks up and running, even if an Internet connection fails. Key capabilities include:

  • Network survivability to the last AP. The controller function of an individual Instant network transitions seamlessly from one AP to the next to the last AP with no disruption or administrator intervention.
  • Dual Ethernet uplinks leverage already-strong uplink resiliency options. Internet connections from two different ISPs can now plug into one Instant AP. This feature gives you the best-possible Internet availability.
  • Supports a variety of 3G/4G USB modems that slot into Aruba APs. Now you have the fastest available cellular uplink, either as a primary connection in hard-to-wire areas or as a backup for mission-critical applications.
  • Flexible image upgrade features let you download firmware now and reboot later during off hours. This lets you leave the office on time and upgrade when no one is using the network.
  • Spectrum load-balancing evens out the client load across channels in a dense deployment. Everyone gets faster access through more efficient use of the available wireless spectrum.

Choose a Network Management Option Right for your Business

Manage your Instant network locally, in the cloud or on premises. Instant access points include a free management interface that provides visibility into the network. All capabilities required to manage a single Instant network are available on the local interface.

Additionally, organizations also have a choice of acquiring the Aruba Central services platform, for network management hosted in the cloud or Aruba AirWave for an on-premises management system.

Aruba Central simplifies network operations by providing zero-touch setup, centralized management of multiple Aruba Instant networks and Mobility Access Switches, historical data reporting, PCI compliance monitoring, and troubleshooting for networks located around town or around the world.

Aruba AirWave is a powerful network management system that not only manages Aruba APs and switches, but also wired and wireless infrastructures from a wide range of thirdparty manufacturers.

Make a Smart Investment in a Cost-Effective Solution

Aruba Instant is one of the most cost-effective business-grade Wi-Fi solutions available to day.

  • Low capex
    With Aruba Instant, you get enterprise-grade features and controller functions embedded in the AP. We eliminate the hardware and maintenance expense of a separate controller, but keep all the performance and reliability advantages.
  • Low opex
    Aruba Instant Wi-Fi integrates everything into the AP – controller functions, security, ARM RF management, ClientMatch performance optimization, and AppRF to improve the use of bandwidth, priority and network paths. It's so easy to setup and manage that you won't need a dedicated wireless expert.
  • Investment protection
    Only Aruba, a Hewlett Packard Enterprise company offers controllerless and controller-managed Wi-Fi with public cloud, private cloud and on-premises management. You can even mix and match between them. You're not locked into one architecture, so when your needs change, you keep 100% of your investment.

No hardware changes. All Aruba Instant APs can utilize VPNs to access centralized resources like guest access or authentication services from corporate headquarters.

At any time, Aruba Instant APs can easily convert to controllermanaged mode, enabling you to mix and match the right solution for the right location – headquarters, branch or home. No matter what you decide, your existing AP investments are fully protected.

The Aruba Instant product family consists of a wide range of APs with a variety of wireless, wired and WAN connectivity options.

Benefits:

Wi-Fi client optimization

  • To eliminate sticky client behavior while users roam, 200 series APs feature patented ClientMatch technology, which continuously gathers session performance metrics from mobile devices.
  • If a mobile device moves away from an AP or if RF interference impedes performance, ClientMatch automatically steers the device to a better AP.

Advanced Cellular Coexistence (ACC)

  • ACC lets WLANs perform at peak efficiency by minimizing interference from 3G/4G LTE networks, distributed antenna systems and commercial small cell/femtocell equipment.

Quality of service for unified communication apps

  • The 200 series APs support priority handling and policy enforcement for unified communication apps, including Microsoft Lync with encrypted videoconferencing, voice, chat and desktop sharing.

Features:

RF management

  • Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs.
  • The 200 Series APs can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available.

Spectrum analysis

  • Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4-GHz and 5-GHz radio bands to identify sources of RF interference.

Security

  • With an OpenDNS service subscription, Aruba Instant RAPs deliver integrated web filtering, malware and botnet protection to every device connected to the WLAN.
  • Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys
  • SecureJack-capable for secure tunneling of wired Ethernet traffic.

Specifications:


IAP-204 and IAP-205 Specifications

AP-200 Series Specifications

  • AP-205 and IAP-205
    - 2.4-GHz (300 Mbps max rate) and 5-GHz (867 Mbps max rate) radios, each with 2x2 MIMO and four integrated omni-directional downtilt antennas.
  • AP-204 and IAP-204
    - 2.4-GHz (300 Mbps max rate) and 5-GHz (867 Mbps max rate) radios, each with 2x2 MIMO and two combined, diplexed external RP-SMA antenna connectors.

Operating Modes

  • Aruba Instant AP
  • Mobility Controller-managed AP
  • Remote AP (RAP) for branch deployments
  • Air monitor (AM) for wireless IDS, rogue detection and containment
  • Spectrum analyzer, dedicated or hybrid
  • Secure enterprise mesh

Wireless Radio Specifications

  • AP type: Indoor, dual radio, 5-GHz 802.11ac and 2.4-GHz 802.11n 2x2:2
  • Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
  • 2x2 MIMO with two spatial streams and up to 867 Mbps wireless data rate
  • Supported frequency bands (country-specific restrictions apply):
    - 2.4000 GHz to 2.4835 GHz
    - 5.150 to 5.250 GHz
    - 5.250 to 5.350 GHz
    - 5.470 to 5.725 GHz
    - 5.725 to 5.850 GHz
  • Available channels: Dependent on configured regulatory domain
  • Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
  • Supported radio technologies:
    - 802.11b: Direct-sequence spread-spectrum (DSSS)
    - 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
  • Supported modulation types:
    - 802.11b: bPSK, QPSK, CCK
    - 802.11a/g/n/ac: bPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
  • Transmit power: Configurable in increments of 0.5 dbm
  • Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
    - 2.4-GHz band: +21 dbm (18 dbm per chain)
    - 5-GHz band: +21 dbm (18 dbm per chain)
  • Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks
  • Maximum ratio combining (MRC) for improved receiver performance
  • Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
  • Short guard interval for 20-MHz, 40-MHz and 80-MHz channels
  • Space-time block coding (STbC) for increased range and improved reception
  • Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
  • Transmit beamforming (TxbF) for increased reliability in signal delivery
  • Supported data rates (Mbps):
    - 802.11b: 1, 2, 5.5, 11
    - 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    - 802.11n: 6.5 to 300 (MCS0 to MCS15)
    - 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2)
  • 802.11n high-throughput (HT) support: HT 20/40
  • 802.11ac very high throughput (VHT) support: VHT 20/40/80
  • 802.11n/ac packet aggregation: A-MPDu, A-MSDu

Antennas

  • AP-204/IAP-204: Two RP-SMA connectors for external dual band antennas. Internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 1.5 db in 2.4 GHz and 3.0 db in 5 GHz.
  • AP-205/IAP-205: Four integrated down-tilt omnidirectional antennas for 2x2 MIMO with maximum antenna gain of 4.0 dbi in 2.4 GHz and 6.0 dbi in 5 GHz. built-in antennas are optimized for horizontal ceiling mounted orientation of the AP.

Other Interfaces

  • 10/100/1000bASE-T Ethernet network interface (RJ-45)
    - Auto-sensing link speed and MDI/MDX
    - 802.3az Energy Efficient Ethernet (EEE)
    - PoE-PD: 48 Vdc (nominal) 802.3af PoE
  • DC power interface, accepts 1.7/4.0-mm center-positive circular plug with 9.5-mm length
  • Visual indicators (LEDs):
    - Power/system status
    - Ethernet link status (ENET)
    - Radio status (two; RAD0, RAD1)
  • Reset button: factory reset (during device power up)
  • Serial console interface (RJ-45)
  • Kensington security slot

Power

  • Maximum (worst-case) power consumption: 12.5 watts (PoE) or 11.7 watts (DC)
  • Maximum (worst-case) power consumption in idle mode: 8.4 watts (PoE) or 7.7 watts (DC)
  • Direct DC source: 12 Vdc nominal, +/- 5%
  • Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af-compliant source
  • Power sources sold separately
  • When both power sources are available, DC power takes priority

Mounting

  • Included with AP:
    - Mounting brackets (2) for attaching to 9/16-inch or 15/16-inch T-bar drop-tile ceiling
  • Spare mounting kit:
    - AP-220-MNT-C1: Aruba AP mount kit contains two ceiling-grid rail adapters for flat rails
  • Optional mounting kits:
    - AP-220-MNT-C2: Aruba AP mount kit contains two ceiling-grid rail adapters for Interlude and Silhouette style rails
    - AP-220-MNT-W1: Aruba AP mount kit contains one basic flat-surface wall/ceiling mount bracket
    - AP-200-MNT-W2: Aruba AP mount kit contains one secure flat-surface wall/ceiling mount cradle

Mechanical

  • Dimensions/weight (unit, excluding mount accessories):
    - 150 mm x 150 mm x 41.5 mm (W x D x H)
    - 380 g
  • Dimensions/weight (shipping):
    - 190 mm x 187 mm x 57 mm (W x D x H)
    - 550 g

Environmental

  • Operating:
    - Temperature: 0° C to +40° C (+32° F to +104° F)
    - Humidity: 5% to 95% non-condensing
  • Storage and transportation:
    - Temperature: -40° C to +70° C (-40° F to +158° F)

Regulatory

  • FCC/Industry of Canada
  • CE Marked
  • R&TTE Directive 1995/5/EC
  • Low Voltage Directive 72/23/EEC
  • EN 300 328
  • EN 301 489
  • EN 301 893
  • uL/IEC/EN 60950
  • EN 60601-1-1 and EN 60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative.

Reliability

  • MTbF: 711,187 hours (81.2 years) at +25° C operating temperature

Regulatory Model Number

  • AP-204 and IAP-204: APIN0204
  • AP-205 and IAP-205: APIN0205

Certifications

  • Cb Scheme Safety, cTuVus
  • uL2043 plenum rating
  • Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac

Warranty

  • Aruba limited lifetime warranty

Minimum Software Versions

  • ArubaOS 6.4.1.0
  • Aruba InstantOS 4.2.0.0

Wireless Radio Specifications:


RF Performance Table
  Maximum transmit power (dBm) per transmit chain Receiver sensitivity (dBm) per receive chain
2.4 GHz - 802.11b
1 Mbps 18.0 -95.0
11 Mbps 18.0 -88.0
2.4 GHz - 802.11g
6 Mbps 18.0 -92.0
54 Mbps 16.0 -74.0
2.4 GHz - 802.11n HT20
MCS0/8 18.0 -91.0
MCS7/15 16.0 -71.0
2.4 GHz - 802.11n HT40
MCS0/8 18.0 -88.0
MCS7/15 16.0 -68.0
 5 GHz - 802.11a
6 Mbps 18.0 -93.0
54 Mbps 16.0 -75.0
 5 GHz - 802.11n HT20
MCS0/8 18.0 -91.0
MCS7/15 15.0 -71.0
 5 GHz - 802.11n HT40
MCS0/8 18.0 -89.0
MCS7/15 15.0 -68.0
 5 GHz - 802.11ac VHT20
MCS0 18.0 -91.0
MCS9 12.0 -64.0
 5 GHz - 802.11ac VHT40
MCS0 18.0 -88.0
MCS9 12.0 -62.0
 5 GHz - 802.11ac VHT80
MCS0 18.0 -85.0
MCS9 12.0 -59.0

Antenna Pattern Plots:

Horizontal or azimuth plane (top view), 0 degrees downtilt

Horizontal or azimuth plane (top view), 0 degrees downtilt

Horizontal or azimuth plane (top view), 30 degrees downtilt

Horizontal or azimuth plane (top view), 30 degrees downtilt

Elevation plane (side view, 0 degrees angle)

Elevation plane (side view, 0 degrees angle)

Elevation plane (side view, 90 degrees angle)

Elevation plane (side view, 90 degrees angle)

Pricing Notes:

Aruba Networks Products
Aruba Wireless Access Point
Aruba Instant IAP-205 802.11n/ac Dual 2x2:2 Radio Integrated Antenna Access Point
#JW213A
List Price: $695.00
Our Price: $625.00
HPE Aruba Foundation Care Next business day Exchange
Aruba 1 Year Foundation Care Next business day Exchange IAP 205
#H3VS5E
Our Price: $31.00
Aruba 3 Year Foundation Care Next business day Exchange IAP 205
#H3VT3E
Our Price: $78.00
Aruba 4 Year Foundation Care Next business day Exchange IAP 205
#H3VV6E
Our Price: $102.00
Aruba 5 Year Foundation Care Next business day Exchange IAP 205
#H3VX9E
Our Price: $125.00
HPE Aruba Foundation Care 4-Hour Exchange
Aruba 1 Year Foundation Care 4-Hour Exchange IAP 205
#H3VS6E
Our Price: $43.00
Aruba 3 Year Foundation Care 4-Hour Exchange IAP 205
#H3VT4E
Our Price: $125.00
Aruba 4 Year Foundation Care 4-Hour Exchange IAP 205
#H3VV7E
Our Price: $164.00
Aruba 5 Year Foundation Care 4-Hour Exchange IAP 205
#H3VY0E
Our Price: $201.00
HPE Aruba Services Renewal
Aruba 1 Year Renewal Foundation Care Next business day Exchange IAP 205
#H3WA2PE
Our Price: $27.00
Aruba 1 Year Renewal Foundation Care 4-Hour Exchange IAP 205
#H3WA5PE
Our Price: $43.00
Mounting Spares
AP-220-MNT-C1 2x Ceiling Grid Rail Adapter for Basic Flat Rails Mount Kit
#JW044A
Our Price: $25.00
Mounting Accessories
AP-220-MNT-C2 2x Ceiling Grid Rail Adapter for Interlude and Silhouette Mt Kit
#JW045A
Our Price: $25.00
AP-MNT-CM1 Industrial Grade Indoor Access Point Metal Suspended Ceiling Rail Mount Kit
#JX961A
Our Price: $35.00
AP-220-MNT-W1 Flat Surface Wall/Ceiling Black AP Basic Flat Surface Mount Kit
#JW046A
Our Price: $25.00
AP-200-MNT-W2 AP AP-200 Series Flat Surface Mount Kit
#JW038A
Our Price: $50.00
AP-200-MNT-W3 White Low Profile Box Style Secure Small AP Flat Surface Mount Ki
#JY705A
Our Price: $50.00
Generic Indoor AP Accessories
AP-AC-12V30A 12V/30W AC/DC Desktop Style 1.7/4.0/9.5mm Circular 90 Deg Plug DoE Level VI Adapter 96
#JX989A
Our Price: $65.00
PD-3510G-AC 15.4W 802.3af PoE 10/100/1000Base-T Ethernet Midspan Injector
#JW627A
Our Price: $95.00
Aruba Central Cloud Services
Aruba Central Device Management Subscription for 1 Year
#JY925AAE
Our Price: $100.00
Aruba Central Device Management Subscription for 3 Years
#JY926AAE
Our Price: $200.00
Aruba Central Device Management Subscription for 5 Years
#JY927AAE
Our Price: $300.00
Services Subscription
Aruba Central Services Subscription for 1 Year
#JY928AAE
Our Price: $25.00
Aruba Central Services Subscription for 3 Years
#JY929AAE
Our Price: $50.00
Aruba Central Services Subscription for 5 Years
#JY930AAE
Our Price: $75.00
