Aruba RAP-5WN Remote Access Point
High-performance, wired and 802.11n wireless remote access point

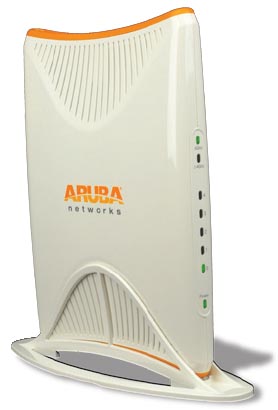

Aruba RAP-5WN Remote Access Point

Aruba Networks Products
Aruba Remote Access Points
Aruba RAP-5WN Multi-port Remote Access Point
Wireless, 1x 100/1000Base-T & 4x 10/100Base-T
#RAP-5WN-US
List Price: $595.00
Our Price: $505.00

Click here to jump to more pricing!

Overview:

The RAP-5WN is a powerful platform for the multi-user small branch office or for power users who work from a home office. The RAP-5WN is a high-performance indoor Remote Access Point platform with multiple access and uplink technologies available. The RAP-5WN features wired and wireless connectivity and security, the ability forward traffic based on policy, user centric security, and backup connectivity over cellular networks make this platform ideally suited to the always-on office.

This multi-function Remote Access Point provides wired LAN connectivity on four 10/100 ports that can each be configured with a unique set of policies for secure user access and traffic forwarding. The RAP-5WN features wireless LAN capabilities on multiple SSIDs, air monitoring, and wireless intrusion detection and prevention over the 2.4GHz and 5 GHz RF spectrum (802.11a/b/g/n). The RAP-5WN provides a USB port for connection to a 3G modem for cellular backup of the WAN link.

The Remote Access Point works in conjunction with Aruba controllers to deliver high-speed, secure network services to remote locations. The RAP-5WN operates over any available WAN or LAN transport connection and can be installed by the end user through simple one-click provisioning.

Specifications:


Technical Specifications
Application
Application High-performance, wired and 802.11n wireless, remote branch office & fixed teleworker applications, high-performance SecureJack ports, indoor use
Operating Modes
Wired Modes
  • 10/100 Ethernet
  • User authentication - 802.1X, Captive Portal, Mac Authentication, or Open Access
  • Policy based forwarding for local resource access
Wireless Modes
  • Multi-service 802.11a/n or 802.11b/g/n WLAN
  • 802.11a/b/g/n air monitor
  • Hybrid combination of WLAN/AM
  • Remote access point
  • Configurable to support 802.11n HT 20/40 channels or mixed-mode deployment IEEE 802.11a/b/g/n
Radio
Single Radio Software configurable to support 2.4GHz or 5 GHz
RF Management
RF Management Automatic transmit power and channel management control with auto coverage hole correction via Adaptive Radio Management (ARM)
Advanced Features
Features
  • Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys
  • SecureJack capable for secure tunneling of wired Ethernet traffic
  • Policy based forwarding for tunneled, locally bridged, and Internet bound traffic
Wireless Radio Specifications
AP type 2x3, 3x3 Multiple-In, Multiple-Out (MIMO)
Supported Frequency Bands (country-specific restrictions apply)
  • 2.400 - 2.4835 GHz
  • 5.150 - 5.250 GHz
  • 5.250 - 5.350 GHz
  • 5.470 - 5.725 GHz
  • 5.725 - 5.850 GHz
Available Channels Controller-managed, dependent upon configured regulatory domain
Supported Radio Technologies
  • 802.11b: Direct-Sequence Spread-Spectrum (DSSS)
  • 802.11a/g/n: Orthogonal Frequency Division Multiplexing (OFDM)
  • 802.11n: 2x2 MIMO with 2 spatial streams
Supported Modulation Types
  • 802.11b: BPSK, QPSK, CCK
  • 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
Transmit Power Configurable in increments of 0.5 dBm
Maximum Ratio Combining (MRC) Maximum Ratio Combining (MRC) for improved receiver performance
Association Rates (Mbps)
  • 802.11b: 1, 2, 5.5, 11
  • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
  • 802.11n: MCS0 - MCS15 (6.5Mbps - 300Mbps)
802.11n High-Throughput (HT) Support HT 20/40
802.11n Packet Aggregation A-MPDU, A-MSDU
Antenna
Type 3 x integral, omni-directional multi-band dipoles
Antenna Max Gain
  • 2.4-2.5 GHz / 2.9 dBi
  • 5.150-5.875 GHz / 4.9 dBi
Power
Adapter (included)
  • AC Input: 100-240V/0.5A
  • DC Output: 12V/1.25A
Maximum Power Consumption 12 Watts
Interfaces
Network
  • 1 x 10/100/1000Base-T Ethernet (RJ45), Auto-sensing link speed and MDI/MDX
  • 4 x 10/100Base-T Ethernet (RJ45), Auto-sensing link speed and MDI/MDX
Power 1 x DC power connector
USB 1 x USB 2.0 (type A connector)
Mounting Options
Standard Desktop (stand)
Operating Specifications and Dimensions
Operating Temperature 0°C to +40°C (+32°F to +104°F)
Storage and Transportation Temperature Range -40°C to +70°C (-40°F to +158°F)
Humidity 5% to 95% (non-condensing)
Dimensions 6.9" x 9.5" x 1.4" in. (175 mm x 240 mm x 35 mm)
Weight 1.0 pounds (450 grams)
Warranty
Hardware Lifetime Hardware Warranty
Regulatory
  • FCC 15.247/15.407
  • EU R&TTE Directive 1999/5/EC (EN 300 328, EN 301 893, EN 301 489)
  • EU LV Directive 2006/95/EC
  • IEC/EN 60950
  • CE Marking
  • cULus Marked
  • CB Scheme Certified

For more country-specific regulatory information, and approvals, please see your Aruba representative.

Wireless Radio Specifications:


RF Performance Table
  Max TX power (dBm) RX Sensitivity (dBm)
802.11b 2.4GHz
1Mbps
2Mbps
5.5Mbps
11Mbps
+18.0
+18.0
+18.0
+18.0
-96.0
-95.0
-93.0
-92.0
802.11g 2.4GHz
6Mbps
9Mbps
12Mbps
18Mbps
24Mbps
36Mbps
48Mbps
54Mbps
+17.0
+17.0
+17.0
+17.0
+17.0
+17.0
+16.0
+15.0
-96.0
-96.0
-96.0
-95.0
-92.0
-89.0
-85.0
-83.0
802.11a 5GHz
6Mbps
9Mbps
12Mbps
18Mbps
24Mbps
36Mbps
48Mbps
54Mbps
+17.0
+17.0
+17.0
+17.0
+17.0
+16.0
+15.0
+15.0
-96.5
-96.5
-96.5
-95.5
-92.0
-89.0
-85.0
-83.5
802.11n 2.4GHz
MCS0 HT20
MCS1 HT20
MCS2 HT20
MCS3 HT20
MCS4 HT20
MCS5 HT20
MCS6 HT20
MCS7 HT20
MCS8 HT40
MCS9 HT40
MCS10 HT40
MCS11 HT40
MCS12 HT40
MCS13 HT40
MCS14 HT40
MCS15 HT40
+19.0
+19.0
+19.0
+19.0
+19.0
+17.0
+13.0
+11.0
+18.0
+18.0
+18.0
+18.0
+18.0
+17.0
+13.0
+11.0
-96.0
-95.0
-93.0
-89.0
-86.0
-82.0
-80.0
-78.0
-92.0
-89.0
-87.0
-84.0
-81.0
-76.0
-75.0
-73.0
802.11n 5GHz
MCS0 HT20
MCS1 HT20
MCS2 HT20
MCS3 HT20
MCS4 HT20
MCS5 HT20
MCS6 HT20
MCS7 HT20
MCS8 HT40
MCS9 HT40
MCS10 HT40
MCS11 HT40
MCS12 HT40
MCS13 HT40
MCS14 HT40
MCS15 HT40
+17.0
+17.0
+17.0
+16.0
+16.0
+16.0
+12.0
+11.0
+17.0
+17.0
+17.0
+16.0
+16.0
+16.0
+12.0
+11.0
-96.5
-94.5
-92.5
-89.5
-86.0
-82.0
-80.5
-79.0
-92.5
-89.5
-87.0
-84.0
-81.0
-77.0
-75.0
-73.0

Maximum capability of the hardware provided. Maximum transmit power will be limited by local regulatory settings.

Aruba Networks Products
Aruba Remote Access Points
Aruba RAP-5WN Multi-port Remote Access Point
Wireless, 1x 100/1000Base-T & 4x 10/100Base-T
#RAP-5WN-US
List Price: $595.00
Our Price: $535.00
Aruba Support for RAP-5WN
Aruba Next-Day Support for RAP-5WN, 1 Year #SN1-RAP-5WN
Our Price: $24.00
Aruba Next-Day Support for RAP-5WN, 2 Years #SN2-RAP-5WN
Our Price: $44.00
Aruba Next-Day Support for RAP-5WN, 3 Years #SN3-RAP-5WN
Our Price: $64.00
Aruba Next-Day Support for RAP-5WN, 4 Years #SN4-RAP-5WN
Our Price: $83.00
Aruba Networks Accessories
Aruba RAP-5WN Remote Access Point Wall Mount #RAP-5WN-MNT
List Price: $35.00
Our Price: $31.00
