AP-ANT-6
2.4 Ghz Detachable Antenna
(135 Degree Sector)
The AP-ANT-6 is a 135° wide H-plane indoor / outdoor antenna designed for wall-mounted applications where
omni-directional coverage is required. Traditional omni-directional antennas, when wall-mounted, can suffer from
undue multi-path effect; the AP-ANT-6 significantly reduces this. These antennas are ideal for healthcare, educational,
office and industrial campus applications.
Aruba
Indoor/Outdoor Antenna AP-ANT-6 Datasheet (.PDF)
AP-ANT-6
Our Price: $400.00
|
| Technical Specifications |
| Frequency/Gain |
2.4 Ghz - 2.5 Ghz / 5.0 dBi |
| Polarization & Element Type |
Linear
Wide-angle 135° Directional |
| Beamwidth |
• E-Plane – 55º
• H-Plane – 135º |
| Maximum Input Power |
• 50 watts
• Impedence - 50Ω
• VSWR <1.5:1 |
| Dimensions |
6” x 3” x 2” (15.2 x 7.6 x 5cm) |
| Operating Temperature |
-40ºF to +158ºF (-40ºC to +70ºC) |
| Housing |
ABS |
| Fly Cable Length/Connector |
36” / RP-SMA |
Antenna Pattern (2450Mhz and/or 5500Mhz)
Direction of Maximum Gain at 0º Unless Noted |
 |
|
|
AP-ANT-7
Tri-Band 2.4 Ghz / 5 Ghz Detachable Antenna (90 Degree Sector)
The AP-ANT-7 is a high-gain, 90° wide H-plane sectored indoor / outdoor (UV-stable and weatherproof) antenna
ideally suited to applications where a wide directional pattern characteristic is preferable to an omni-directional pattern.
This antenna is optimal for situations requiring the signal to be radiated from a mounting location in a corner,
such as in offices, warehouses, shopping malls, auditoriums and industrial campuses.
Aruba
Indoor/Outdoor Antenna AP-ANT-7 Datasheet (.PDF)
AP-ANT-7
Our Price: $750.00
|
| Technical Specifications |
| Frequency/Gain |
2.4 GHz - 2.5 GHz / 12.0 dBi |
| Polarization & Element Type |
• Linear
• Wide-Angle (H-Plane) 90° Sectored |
| Beamwidth |
• E-Plane – 18º
• H-Plane - 360º |
| Maximum Input Power |
• 50 watts
• Impedence - 50Ω
• VSWR <1.5:1 |
| Dimensions |
3” x 26” x 1” (7.6 x 66 x 2.5cm) |
| Operating Temperature |
-22ºF to +149ºF (-30ºC to +65ºC) |
| Housing |
UV Stable Composite Plastic |
| Fly Cable Length/Connector |
36” / RP-SMA |
Antenna Pattern (2450Mhz and/or 5500Mhz)
Direction of Maximum Gain at 0º Unless Noted |
 |
|
|
AP-ANT-8
2.4Ghz Detachable Antenna
(Ceiling Mount Omni)
The AP-ANT-8 is an indoor / outdoor antenna ideally suited to applications where omni-directional coverage of large
open spaces is required. This antenna consists of a series-fed, two-element, dipole array, providing a nominal 3 dBd
gain with 360° by 30° half-power beamwidth, for superior RF coverage in warehouses, shopping malls, auditoriums
and industrial campuses.
Aruba
Indoor/Outdoor Antenna AP-ANT-8 Datasheet (.PDF)
AP-ANT-8
Our Price: $260.00
|
| Technical Specifications |
| Frequency/Gain |
2.4 GHz - 2.5 GHz / 5.0 dBii |
| Polarization & Element Type |
• Linear Vertical
• High-gain, Special Purpose Omni-directional |
| Beamwidth |
• E-Plane – 30º
• H-Plane - 360º |
| Maximum Input Power |
• 50 watts
• Impedence - 50Ω
• VSWR <1.5:1 |
| Dimensions |
11.5” x 7.1” x 0.98” (29.2 x 18 x 2.5cm) |
| Operating Temperature |
-40ºF to 158ºF (-40ºC to +70ºC) |
| Housing |
Polycarbonate |
| Fly Cable Length/Connector |
36” / RP-SMA |
Antenna Pattern (2450Mhz and/or 5500Mhz)
Direction of Maximum Gain at 0º Unless Noted |
 |
|
|
AP-ANT-9 2.4 GHz Detachable Antenna
(90 Degree Sector)
The AP-ANT-9 is an indoor / outdoor antenna ideally suited to applications where a 90° H-plane beamwidth is
optimal, such as those requiring the signal to be radiated from a mounting location in a corner. Offices, healthcare
facilities, educational or industrial campuses and shopping malls are just a few of the more typical applications for
this antenna design.
Aruba
Indoor/Outdoor Antenna AP-ANT-9 Datasheet (.PDF)
AP-ANT-9
Our Price: $410.00
|
| Technical Specifications |
| Frequency/Gain |
2.4 GHz - 2.5 GHz / 7.0 dBi |
| Polarization & Element Type |
• Linear Vertical
• Wide-angle 90° Directional Sectored |
| Beamwidth |
• E-Plane – 60º
• H-Plane - 90º |
| Maximum Input Power |
• 25 watts
• Impedence - 50Ω
• VSWR <1.5:1 |
| Dimensions |
4.6” x 2.6” x 0.99” (11.8 x 6.8 x 2.5 cm) |
| Operating Temperature |
-40ºF to 158ºF (-40ºC to +70ºC) |
| Housing |
PVC |
| Fly Cable Length/Connector |
36” / RP-SMA |
Antenna Pattern (2450Mhz and/or 5500Mhz)
Direction of Maximum Gain at 0º Unless Noted |
 |
|
|
AP-ANT-10
5Ghz Detachable Antenna
(Ceiling Mount Omni)
Both high-gain and wide-band, the AP-ANT-10 is an ideal antenna for deployment indoors /
outdoors where 5 GHz coverage of large open areas or in buildings with high ceilings is required.
Warehouses, offices, healthcare facilities, educational and industrial campuses, and shopping
malls are just a few of the more typical applications for this antenna design.
Aruba
Indoor/Outdoor Antenna AP-ANT-10 Datasheet (.PDF)
AP-ANT-10
Our Price: $380.00
|
| Technical Specifications |
| Frequency/Gain |
5.150 GHz - 5.875 GHz / 6.0 dBi |
| Polarization & Element Type |
• Linear Vertical
• Omni-Directional |
| Beamwidth |
• E-Plane – 18º
• H-Plane - 360º |
| Maximum Input Power |
10 watts
Impedence - 50Ω
VSWR <2.0:1 |
| Dimensions |
11.5” x 1.0” (29.2 x 2.54cm) |
| Operating Temperature |
-40ºF to 158ºF (-40ºC to +70ºC) |
| Housing |
Acrylic / PVC |
| Fly Cable Length/Connector |
36” / RP-SMA |
Antenna Pattern (2450Mhz and/or 5500Mhz)
Direction of Maximum Gain at 0º Unless Noted |
 |
|
|
AP-ANT-12
5 GHz Detachable Antenna
(High-Gain Directional)
The AP-ANT-12 is a wide-band, high-performance indoor / outdoor directional patch antenna ideal for directional coverage of the 5 GHz band. It suits a variety of applications, including coverage of long rooms and corridors, as well as point-to-point and point-to-multipoint deployments. The AP-ANT-12 supports UNI I, II & III frequencies and worldwide WLAN standards. Its housing is
UV-stabilized and weather-proof for carefree outdoor deployment.
Aruba
Indoor/Outdoor Antenna AP-ANT-12 Datasheet (.PDF)
AP-ANT-12
Our Price: $330.00
|
| Technical Specifications |
| Frequency/Gain |
5.150 GHz - 5.875 GHz / 14.0 dBi |
| Polarization & Element Type |
• Linear Vertical
• Wide-band, High-gain, Directional Patch |
| Beamwidth |
• E-Plane – 30º
• H-Plane - 30º |
| Maximum Input Power |
10 watts
Impedence - 50Ω
VSWR <2.0:1 |
| Dimensions |
4.02” x 4.02” x 1.38” (10.2 x 10.2 x 3.5cm) |
| Operating Temperature |
-40ºF to 158ºF (-40ºC to +70ºC) |
| Housing |
Acrylic / PVC |
| Fly Cable Length/Connector |
36” / RP-SMA |
Antenna Pattern (2450Mhz and/or 5500Mhz)
Direction of Maximum Gain at 0º Unless Noted |
|
|
|
AP-ANT-15
Indoor/Outdoor, Dual-Band,
120° Sector Antenna
The Aruba AP-ANT-15 is a dual-band, high-performance indoor/outdoor 120 degree sector antenna with a
wide 65 degree vertical beam-width designed for serving WLAN services to clients across multiple bands.
It is ideally suited to wall mounted, indoor/outdoor applications such as warehousing, aircraft hangers or
auditoriums, where a sectorized approach is required and a wide vertical beam to accomodate clients in a
variety of elevation points (such as ground based, or higher located on racking systems). AP-ANT-15 supports
spectral coverage from 2.4-2.5GHz & 4.9-5.9GHz frequencies from a single RP-SMA interface and may be wall
or mast mounted.
Aruba
Indoor/Outdoor Antenna AP-ANT-15 Datasheet (.PDF)
AP-ANT-15
Our Price: $345.00
|
| Technical Specifications |
| Frequency/Gain |
• 2.400GHZ - 2.500GHz (5.0dBi)
• 4.900Ghz - 5.875Ghz (5.0dBi) |
| Polarization & Element Type |
Linear Vertical, Sectorized |
| Beamwidth |
• E-Plane – 65º
• H-Plane – 120º
|
| Maximum Input Power |
5 watts
Impedence - 50Ω
VSWR <2.0:1 |
| Dimensions |
2.16” x 5.16” x 1.38” (5.49 x 13.11 x 3.51cm) |
| Operating Temperature |
-40ºF to 158ºF (-40ºC to +70ºC) |
| Housing |
Acrylic / PVC |
| Fly Cable Length/Connector |
36” / RP-SMA |
Antenna Pattern (2450Mhz and/or 5500Mhz)
Direction of Maximum Gain at 0º Unless Noted |
 |
|
|
AP-ANT-17
Indoor/Outdoor
MIMO 2.4-2.5 GHZ and 4.9-5.875 GHz
Dual-Band Sector Antenna
AP-ANT-17 is a dual-band 3-element 120 degree sector antenna for use in 802.11n MIMO applications. The antenna provides coverage of 2.4 to 2.5 GHz and 4.9 to 5.875 GHz in a single antenna radome. Additional features include light weight and durable construction and UV-protected radome made of plastic. As a multi-antenna array, the AP-ANT-17 can be used with a single AP-124 to provide full dual-band 802.11a/b/g/n MIMO coverage or the three elements can be used individually or in combination to provide diversity/non-diversity coverage with legacy 802.11a/b/g access points.
Aruba
Indoor/Outdoor Antenna AP-ANT-17 Datasheet (.PDF)
AP-ANT-17
Our Price: $365.00
|
| Technical Specifications |
| Frequency/Gain |
• 2.4-2.5 GHz (6.0 dBi)
• 4.9-5.875 GHz (5.0 dBi) |
| Polarization & Element Type |
Linear Vertical |
| Beamwidth |
• E-plane (Elevation):60/75 degrees
• H-plane (Azimuth): 120/150 degrees
|
| Maximum Input Power |
50 watts
Impedence - 50Ω
VSWR <1.7:1 |
| Dimensions |
7.9” x 7.9” x 1.26” (20.1 x 20.1 x 3.2 cm) |
| Operating Temperature |
-40ºF to 158ºF (-40ºC to +70ºC) |
| Housing |
• Backplane: Aluminum; protected through chemical passivation
• Radome: UV-protected plastic |
| Fly Cable Length/Connector |
30” / RP-SMA (3x) |
Antenna Pattern (2450Mhz and/or 5500Mhz)
Direction of Maximum Gain at 0º Unless Noted |
 |
|
AP-ANT-18
Aruba Indoor/Outdoor Antenna MIMO
AP-ANT-18 is a dual-band three-element 60-degree sector antenna for use in 802.11n MIMO applications. The antenna provides coverage of 2.4 to 2.5 GHz and 5.15 to 5.875 GHz in a single antenna radome. Additional features include light weight and durable construction and UV-protected radome made of plastic.
Aruba
Indoor/Outdoor Antenna AP-ANT-18 Datasheet (.PDF)
AP-ANT-18
Our Price: $365.00
|
| Technical Specifications |
| Frequency/Gain |
• 2.4 – 2.5 GHz (7.5 dBi)
• 5.15 – 5.875 GHz (7.5 dBi) |
| Polarization & Element Type |
Linear vertical & dual slant +/-45 degrees |
| Beamwidth |
• E-plane: 60 degrees
• H-plane H-plane: 60 degrees |
| Maximum Input Power |
50 watts
Impedence - 50 ohms |
| VSWR (minimum performance) |
< 1.8:1 |
| Dimensions |
200 mm x 200 mm x 33 mm (7.87” x 7.87” x 1.30”) |
| Weight |
260 g (9.17 oz) |
| Housing |
• Backplane: Aluminum; protected through chemical passivation
• Radome: UV protected plastic |
| Fly Cable Length/Connector |
30” coaxial cable RG 316 white/RP-SMA (3x) |
| Operating Storage Temp |
40° to +70° C |
| Installation Hardware |
Wall mountable, four drywall and concrete wall anchors and screws included. For az/el
adjustment on wall mount or pole mount order AP-ANT-MNT-1 kit in addition to antenna. |
|

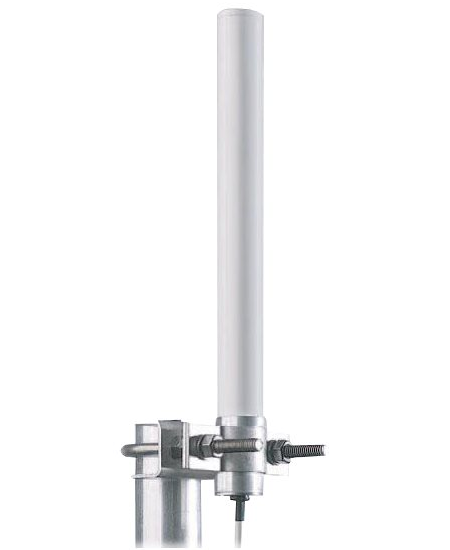

AP-ANT-19 Aruba Indoor/Outdoor Antenna Omni
The wideband AP-ANT-19 antenna offers full-band coverage for 802.11b/a/g/n and includes all hardware required
to mount indoors or outdoors. The antenna provides the “no compromise” performance expected from a
single-band radio system in a dual-band radio.
While many dual-band antennas are a compromise between the two operating bands, the AP-ANT-19 provides
full-band coverage and omnidirectional coverage over both bands.
Aruba
Indoor/Outdoor Antenna AP-ANT-19 Datasheet (.PDF)
AP-ANT-19
Our Price: $150.00
AP-ANT-19-KIT
(Kit of 3 AP-ANT-19 antennas)
Our Price: $395.00
|
| Technical Specifications |
| Frequency/Gain |
• 2.4 – 2.5 GHz (3 dBi)
• 5.15 – 5.875 GHz (6 dBi) |
| Polarization |
Vertical |
| Beamwidth |
• E-plane: 50 degrees (2.4 GHz), 20 degrees (5 GHz)
• H-plane: 360 degrees |
| Maximum Input Power |
10 watts
Impedence - 50 ohms |
| VSWR (minimum performance) |
< 2.0:1 |
| Dimensions |
Height:245 mm (9.6 in) |
| Weight |
140 kg (0.30 lb) |
| Enclosure |
Polycarbonate |
| Fly Cable Length/Connector |
914 mm (36 in) Coaxial Cable White / RP-SMA |
| Operating Storage Temp |
-40° C to +70° C |
| Installation Hardware |
Unit ships with all necessary mounting materials to support ceiling, I-beam or pole mounting. |
|
|
