Aruba Outdoor Only Antennas
Antennas for Outdoor Access Points with N-Type connector



Click on a thumbnail to see that antenna pattern in full size!

AP-ANT-45 Outdoor 4x4 MIMO Antenna


AP-ANT-45 Outdoor 4x4 MIMO Antenna

AP-ANT-45 is a multi-polarized antenna with nominal 90° H x 90° V beamwidths. This antenna is well suited for 2.4 and 5 GHz sector coverage for access.


Aruba Indoor Antenna AP-ANT-45 Datasheet (.PDF)

JW018A
List Price: $450.00
Our Price: $405.00
Technical Specifications
Frequency/Gain • 4.9-6.0 GHz/5.5 dBi
• 2.4-2.5 GHz/4.5 dBi
Polarization +/-45° +/-135°
Beamwidth • Horiz Plane: 90° Vert Plane: 90° @ 2.4 GHz
• Horiz Plane: 90° Vert Plane: 90° @ 5.x GHz
Impedance 50 ohms
Connection 30 cm RPSMA terminated pigtails
Maximum Input Power 6 watts
VSWR 2:1 max
Dimensions 200 mm x 200 mm x 40 mm
Weight 590 g
Housing Material • Housing: Aluminum
• Radome: Plastic
Operating Storage Temp -40° C to +65° C
Antenna Pattern

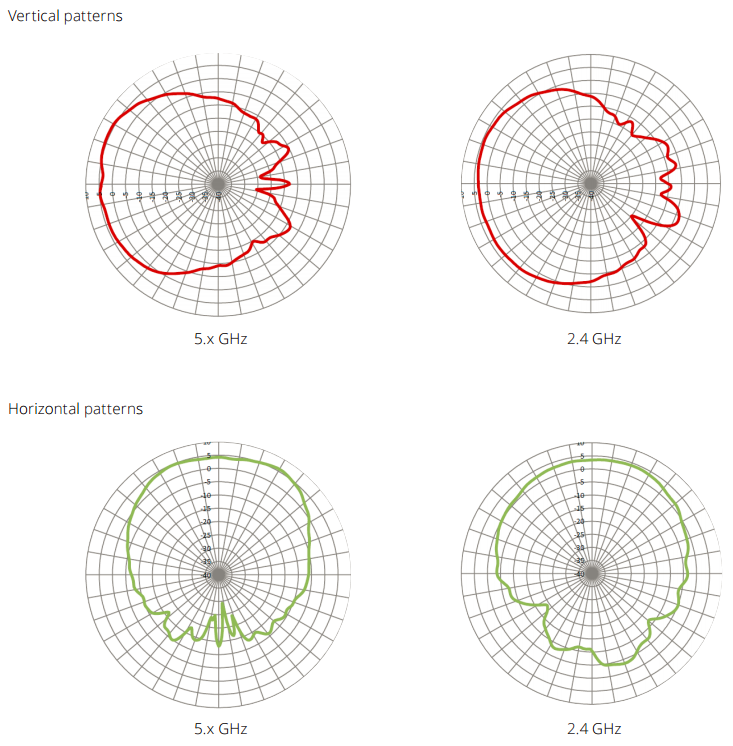

AP-ANT-45 Antenna Pattern

AP-ANT-48 Outdoor 4x4 MIMO Antenna


AP-ANT-48 Outdoor 4x4 MIMO Antenna

AP-ANT-48 is a multi-polarized antenna with nominal 60° H x 60° V beamwidths. This antenna is well suited for 2.4 and 5 GHz sector coverage for access.


Aruba Indoor Antenna AP-ANT-48 Datasheet (.PDF)

JW006A
List Price: $450.00
Our Price: $405.00
Technical Specifications
Frequency/Gain • 4.9-6.0 GHz/8.5 dBi min
• 2.4-2.5 GHz/8.5 dBi min
Polarization +/-45° +/-135°
Beamwidth • Horizontal plane: 70° @ 2.4 GHz Vertical plane: 70° @ 2.4 GHz
• Horizontal plane: 56° @ 5.x GHz Vertical plane: 56° @ 5.x GHz
Impedance 50 ohms
Connection 30 cm RPSMA terminated pigtails
Maximum Input Power 6 watts
VSWR 2:1 max
Dimensions 190 mm x 190 mm x 44 mm (Excluding wall mount flanges)
Weight 700 g
Housing Material • Housing: Aluminum
• Radome: Plastic
Operating Storage Temp -40° C to +65° C

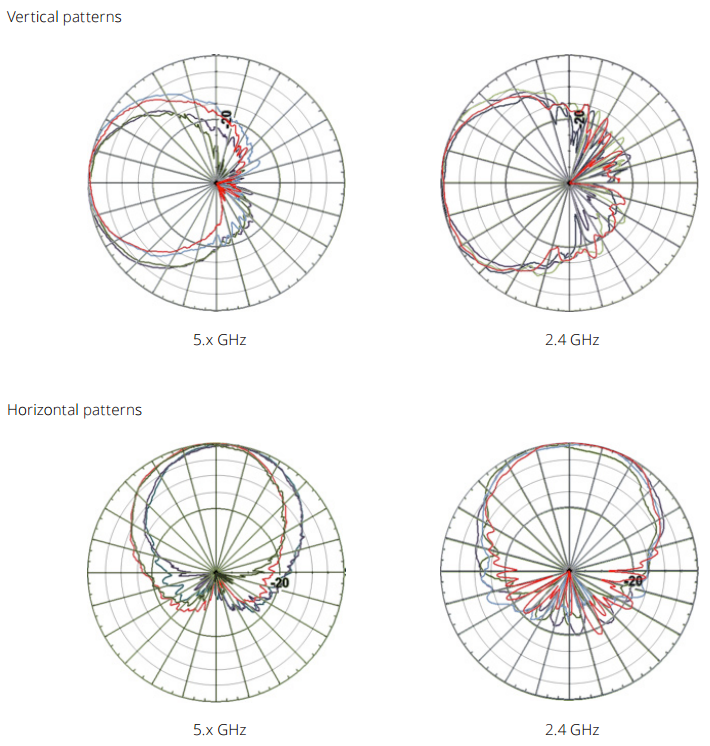

Antenna Pattern

AP-ANT-48 Antenna Pattern

ANT-2x2-2005 Outdoor MIMO Antenna Kit


ANT-2x2-2005 Outdoor MIMO Antenna Kit

ANT-2×2-2005 is a kit of two omnidirectional antennas for use in 802.11n MIMO mesh link and client access applications. The kit contains two differently polarized antennas to be used as a 2×2 MIMO pair, and provides coverage in the 2.4-2.5 GHz frequency band.


Aruba Outdoor Antenna ANT-2x2-2005 Datasheet (.PDF)

JW023A
List Price: $295.00
Our Price: $265.00
Technical Specifications
Frequency/Gain 2.4 – 2.5 GHz (5 dBi)
Polarization • Vpol antenna: linear, vertical
• Hpol antenna: linear, horizontal
Beamwidth • E-plane: 30 degrees (Vpol antenna), 25 degrees (Hpol antenna)
• H-plane: 360 degrees
Impedance 50 ohms
Maximum Input Power • Vpol antenna: 50 watts
• Hpol antenna: 10 watts
VSWR (Min Performance) • Vpol antenna: <1.7:1
• Hpol antenna: <2.0:1
Mounting Style Direct mount on AP or pole mount
Connector N-type male (Note: RF cables not included)
Dimensions • Vpol antenna: 309 x 32 x 32 mm
• Hpol antenna: 329 x 45 x 45 mm
Weight • Vpol antenna: 140 g
• Hpol antenna: 260 g
Radome Material Polycarbonate, UV, white
Temperature Range -30o C to +70o C (operating), -40o C to +85o C (storage)

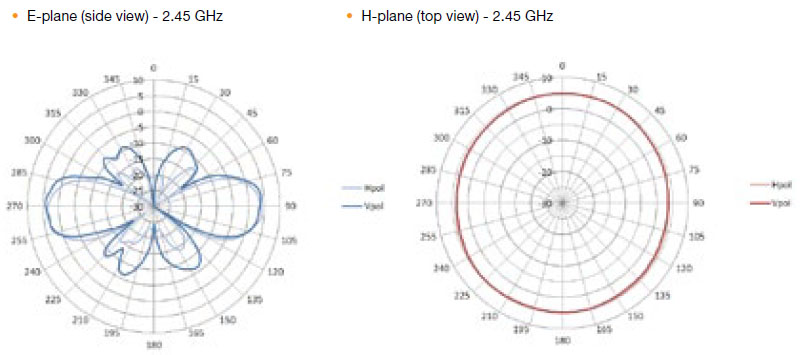

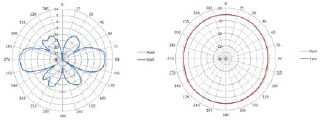

Antenna Pattern
ANT-2X2-2005 Antenna Pattern

ANT-2x2-5005 Outdoor MIMO Antenna KIT


ANT-2x2-5005 Outdoor MIMO Antenna KIT

ANT-2×2-5005 is a kit of two omnidirectional antennas for use in 802.11n MIMO mesh link and client access applications. The kit contains 2 differently polarized antennas to be used as a 2×2 MIMO pair, and provides coverage in the 4.9 – 5.875 GHz frequency band.


Aruba Outdoor Antenna ANT-2x2-5005 Datasheet (.PDF)

JW026A
List Price: $295.00
Our Price: $265.00
Technical Specifications
Frequency/Gain 4.9 – 5.875 GHz (5 dBi)
Polarization & Element Type • Vpol antenna: linear, vertical
• Hpol antenna: linear, horizontal
Beamwidth • E-plane: 29 degrees (Vpol antenna), 33 degrees (Hpol antenna)
• H-plane: 360 degrees
Impedance 50 ohms
Maximum Input Power 10 watts
VSWR (Min Performance) 2.0:1
Dimensions 200 x 25 x 25
Weight 140 (each)
Operating/Storage Temp. -30C to +70C (operating),
-40C to +85C (storage)
Housing Radome: Polycarbonate, UV, White
Connector N-type male (Note: RF cables not included)
Mounting Style Direct mount on AP or pole mount
Antenna Pattern

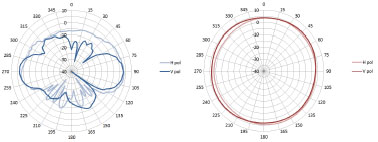

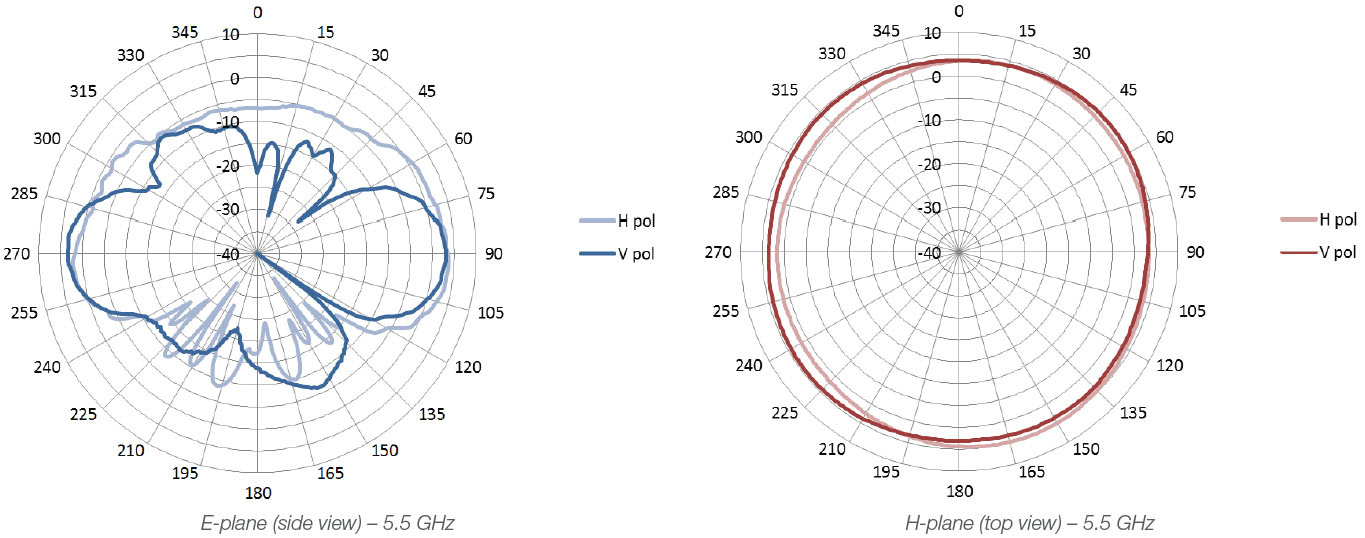

ANT-2X2-5005 Antenna Pattern

ANT-2x2-2314 Outdoor 2.4 MIMO High-Gain Directional Panel Antenna


ANT-2x2-2314 Outdoor 2.4 MIMO High-Gain Directional Panel Antenna

ANT-2×2-2314 is a dual-polarized antenna with 30° H x 30° V beamwidths. This antenna is well suited for coverage along a street, spot coverage, or for covering a seating section in stadiums and other large public venues.


Aruba Outdoor Antenna ANT-2X2-2314 Datasheet (.PDF)

JW024A
List Price: $425.00
Our Price: $382.00
Technical Specifications
Frequency/Gain 2.400 GHz - 2.500 GHz / 14.0 dBi
Polarization & Element Type Dual: linear vertical and linear horizontal
Beamwidth • E-Plane – 30º
• H-Plane - 30º
VSWR <2.0:1
Max Input Power 6 watts
Connector(s) 2x N-type/f
Dimensions 260 x 261 x 30 mm
Operating Temperature -45° C to 65° C
Antenna Pattern

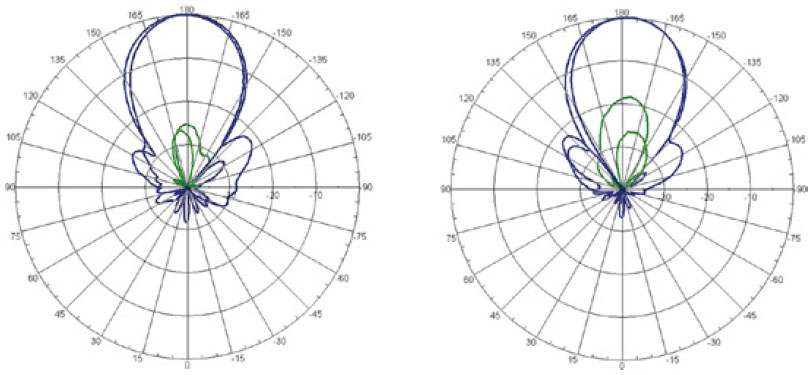

ANT-2X2-2314 Antenna Pattern

ANT-2x2-5314 Outdoor 5.15-5.9 GHz MIMO High-Gain Directional Panel Antenna


ANT-2x2-5314 Outdoor 2.4 MIMO High-Gain Directional Panel Antenna

ANT-2×2-5314 is a dual-polarized antenna with 30° H x 30° V beamwidths. This antenna is well suited for coverage along a street, spot coverage, or for covering a seating section in stadiums and other large public venues. It is also ideal for point-to-point connections. The narrower beamwidth reduces the zone where interference may be received.


Aruba Outdoor Antenna ANT-2X2-5314 Datasheet (.PDF)

JW028A
List Price: $425.00
Our Price: $382.00
Technical Specifications
Frequency/Gain 4.900 GHz - 5.875 GHz / 14.0 dBi
Polarization & Element Type Dual: linear vertical and linear horizontal
Beamwidth • E-Plane – 30º
• H-Plane - 30º
VSWR <2.0:1
Max Input Power 6 watts
Connector(s) 2x N-type/f
Dimensions 190 x 190 x 30 mm
Operating Temperature -45° C to 65° C

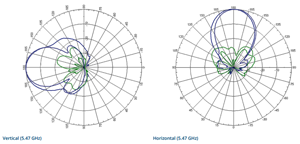

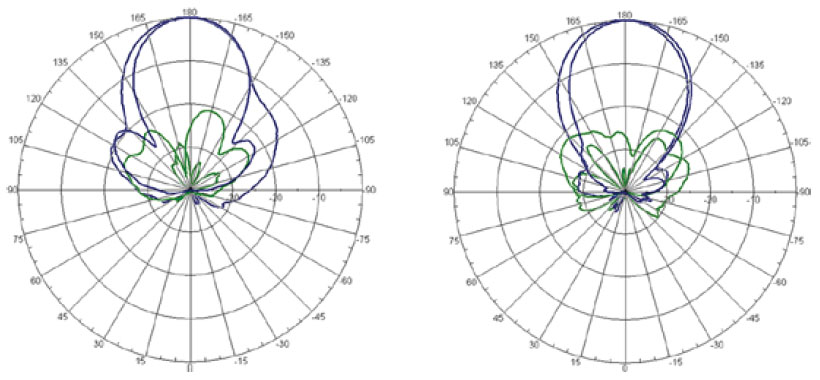

Antenna Pattern

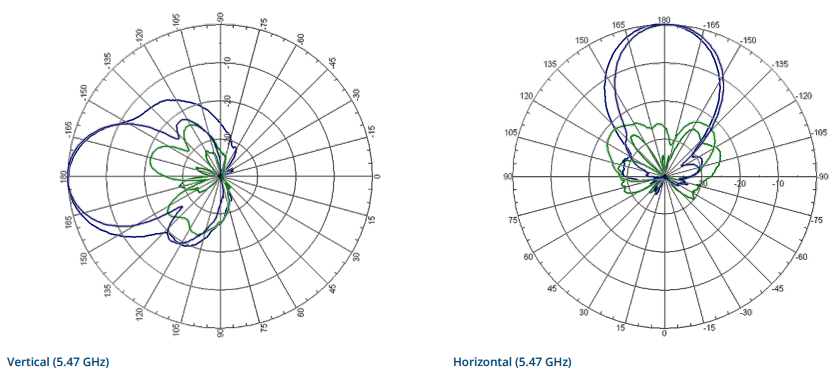

ANT-2X2-5314 Antenna Pattern

ANT-2x2-5010 Outdoor MIMO Antenna KIT


ANT-2x2-5010 Outdoor MIMO Antenna KIT

ANT-2×2-5010 is a kit of two omnidirectional antennas for use in 802.11n MIMO mesh link and client access applications. The kit contains 2 differently polarized antennas to be used as a 2×2 MIMO pair, and provides coverage in the 4.9 – 5.875 GHz frequency band.


Aruba Outdoor Antenna ANT-2x2-5010 Datasheet (.PDF)

JW027A
List Price: $395.00
Our Price: $355.00
Technical Specifications
Frequency/Gain 4.9 – 5.875 GHz (10dBi)
Polarization & Element Type • Vpol antenna: linear, vertical
• Hpol antenna: linear, horizontal
Beamwidth • E-plane: 8 degrees (Vpol antenna), 9.5 degrees (Hpol antenna)
• H-plane: 360 degrees
Impedance 50 ohms
Maximum Input Power • 50 watts
• Impedence - 50Ω
• VSWR <1.5:1
VSWR (Min Performance) 2.0:1
Dimensions 490 x 25 x 25 (Vpol), 451 x 25 x 25 (Hpol)
Weight 400 (Vpol), 180 (Hpol)
Operating/Storage Temp. -30C to +70C (operating),
-40C to +85C (storage)
Housing Radome: Polycarbonate, UV, White
Connector N-type male (Note: RF cables not included)
Mounting Style Direct mount on AP or pole mount

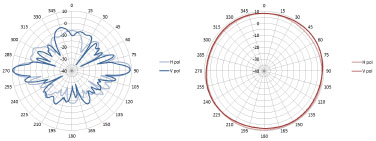

Antenna Pattern
ANT-2X2-5010 Antenna Pattern

ANT-2x2-2714 Outdoor 2-Element MIMO High-Gain Directional Panel Antenna


ANT-2x2-2714 Outdoor 2-Element MIMO High-Gain Directional Panel Antenna

ANT-2×2-2714 is a 2-element 70 degree sector antenna for use in 802.11n MIMO mesh link applications. The antenna integrates 2 differently polarized elements, and provides coverage of 2.400 – 2.483 GHz frequency band in a single antenna radome.


Aruba Outdoor Antenna ANT-2x2-2714 Datasheet (.PDF)

JW025A
List Price: $395.00
Our Price: $355.00
Technical Specifications
Frequency/Gain 2.400 – 2.483 GHz (14dBi)
Polarization & Element Type Dual slant, +/- 45 degrees, Linear
Beamwidth • E-plane: 23 degrees
• H-plane: 70 degrees
Impedance 50 ohms
Maximum Input Power 20 watts
VSWR (Min Performance) < 1.5:1
Dimensions 306 x 306 x 25 mm
Weight 1,700 g
Operating/Storage Temp. -45° to +70° C
Housing • Housing: powder coated aluminum
• Radome: ABS with UV protection
Connector N-type female 2x (Note: RF cables not included)
Installation Hardware Mount kit for wall and pole mounting included
Antenna Pattern

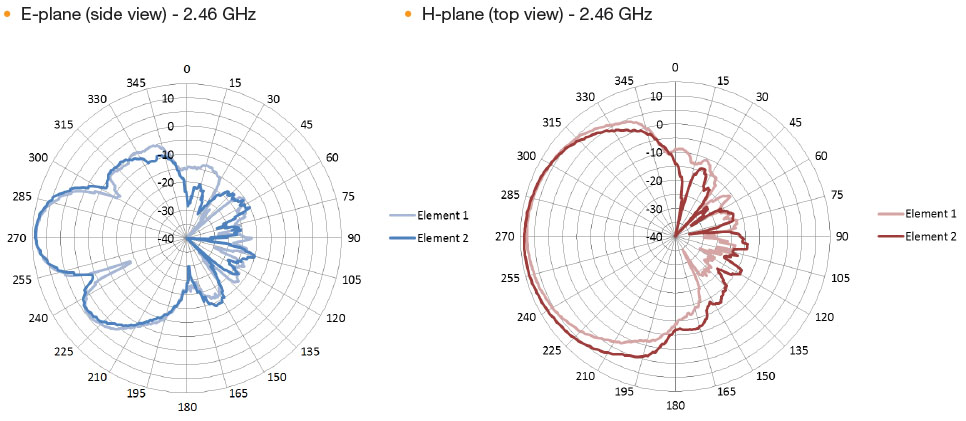

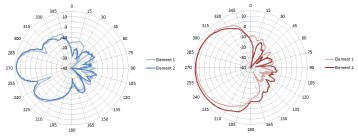

ANT-2X2-2714 Antenna Pattern

ANT-3x3-2005 Outdoor MIMO Antenna Kit


ANT-3x3-2005 Outdoor MIMO Antenna Kit

ANT-3x3-2005 is a kit of three omnidirectional antennas for use in 802.11ac and 802.11n MIMO mesh link and client access applications. The kit contains three antennas – two vertical and one horizontal – which can be used as a 3x3 MIMO kit and provide coverage in the 2.4 – 2.5 GHz frequency band.


Aruba Outdoor Antenna ANT-3x3-2005 Datasheet (.PDF)

JW030A
List Price: $495.00
Our Price: $445.00
Technical Specifications
Frequency/Gain 2.4 – 2.5 GHz (5 dBi)
Polarization • Vpol antenna: linear, vertical
• Hpol antenna: linear, horizontal
Beamwidth • E-plane: 30 degrees (Vpol antenna), 25 degrees (Hpol antenna)
• H-plane: 360 degrees
Impedance 50 ohms
Maximum Input Power • Vpol antenna: 50 watts
• Hpol antenna: 10 watts
VSWR (Min Performance) • Vpol antenna: <1.7:1
• Hpol antenna: <2.0:1
Mounting Style Direct mount on AP or pole mount
Connector N-type male (Note: RF cables not included)
Dimensions • Vpol antenna: 309 x 32 x 32 mm
• Hpol antenna: 329 x 45 x 45 mm
Weight • Vpol antenna: 140 g
• Hpol antenna: 260 g
Radome Material Polycarbonate, UV, white
Temperature Range -30o C to +70o C (operating), -40o C to +85o C (storage)
Antenna Pattern
ANT-3X3-2005 Antenna Pattern

ANT-3x3-5005 Outdoor MIMO Antenna KIT


ANT-3x3-5005 Outdoor MIMO Antenna KIT

ANT-3x3-5005 is a kit of three omnidirectional antennas for use in 802.11ac and 802.11n MIMO mesh link and client access applications. The kit contains three antennas – two vertical and one horizontal – which can be used as a 3x3 MIMO kit and provide coverage in the 4.9 – 5.875 GHz frequency band.


Aruba Outdoor Antenna ANT-3x3-5005 Datasheet (.PDF)

JW031A
List Price: $495.00
Our Price: $445.00
Technical Specifications
Frequency/Gain 4.9 – 5.875 GHz (5 dBi)
Polarization & Element Type • Vpol antenna: linear, vertical
• Hpol antenna: linear, horizontal
Beamwidth • E-plane: 29 degrees (Vpol antenna), 33 degrees (Hpol antenna)
• H-plane: 360 degrees
Impedance 50 ohms
Maximum Input Power 10 watts
VSWR (Min Performance) 2.0:1
Dimensions 200 x 25 x 25
Weight 140 (each)
Operating/Storage Temp. -30C to +70C (operating), -40C to +85C (storage)
Housing Radome: Polycarbonate, UV, White
Connector N-type male (Note: RF cables not included)
Mounting Style Direct mount on AP or pole mount
Antenna Pattern
ANT-3X3-5005 Antenna Pattern

ANT-3x3-5010 Outdoor MIMO Antenna KIT


ANT-3x3-5010 Outdoor MIMO Antenna KIT

ANT-3×3-5010 is a kit of three omnidirectional antennas for use in 802.11ac and 802.11n MIMO mesh link and client access applications. The kit contains three antennas - two vertical and one horizontal - which can be used as a 3x3 MIMO kit and provide coverage in the 4.9 - 5.875 GHz frequency band.


Aruba Outdoor Antenna ANT-3x3-5010 Datasheet (.PDF)

JW032A
List Price: $595.00
Our Price: $535.00
Technical Specifications
Frequency/Gain 4.9 – 5.875 GHz (10dBi)
Polarization & Element Type • Vpol antenna: linear, vertical
• Hpol antenna: linear, horizontal
Beamwidth • E-plane: 8 degrees (Vpol antenna), 9.5 degrees (Hpol antenna)
• H-plane: 360 degrees
Impedance 50 ohms
Maximum Input Power 10 watts
VSWR (Min Performance) 2.0:1
Dimensions 495 x 25 x 25 (Vpol), 451 x 25 x 25 (Hpol)
Weight 180 (Vpol), 180 (Hpol)
Operating/Storage Temp. -30C to +70C (operating), -40C to +85C (storage)
Housing Radome: Polycarbonate, UV, White
Connector N-type male (Note: RF cables not included)
Mounting Style Direct mount on AP or pole mount
Antenna Pattern
ANT-2X2-5010 Antenna Pattern

ANT-3x3-5712 Outdoor 5 GHz 3x3 MIMO Multipolarized Antenna


ANT-3x3-5712 Outdoor 2.4 MIMO High-Gain Directional Panel Antenna

ANT-3×3-5712 is a multipolarized antenna with 70° horizontal and 25° vertical beamwidths. This antenna is ideally suited for 5-GHz point-to-multipoint mesh connections.


Aruba Outdoor Antenna ANT-3x3-5712 Datasheet (.PDF)

JW033A
List Price: $495.00
Our Price: $445.00
Technical Specifications
Frequency/Gain 4.9-6.0 GHz (11.5 dBi min)
Polarization Horizontal, vertical and slant 45°
Beamwidth • Horizontal plane: 70°
• Vertical plane: 25°
Housing Aluminum
Radome Plastic
Impedance 50 ohms
Max Input Power 6 watts max
VSWR 2:1 max
Connectors N-type female x 3 (RF cables not included)
Dimensions 190 mm x 190 mm x 30 mm (7.5” x 7.5” x 1.2”)
Weight 1,000 g (2.2 lbs)
Operating Temperature -45° C to 65° C

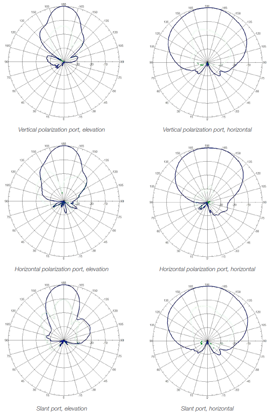

Antenna Pattern
ANT-3X3-5712 Antenna Pattern

ANT-3x3-D100 Outdoor 3x3 MIMO Multipolarized Antenna


ANT-3x3-D100 Outdoor 3x3 MIMO Multipolarized Antenna

ANT-3×3-D100 is a multipolarized antenna with 90° H x 90° V beamwidths. This antenna is well suited for 2.4 and 5 GHz sector coverage for access.


Aruba Outdoor Antenna ANT-3x3-D100 Datasheet (.PDF)

JW034A
List Price: $395.00
Our Price: $355.00
Technical Specifications
Frequency/Gain • 4.9-6.0 GHz/5 dBi min
• 2.4-2.5 GHz/5 dBi min
Polarization & Element Type V, and slant +/- 45°
Beamwidth • Horizontal plane: 100°
• Vertical plane: 90°
Housing • Housing: Aluminum
• Radome: Plastic
Impedance 50 ohms
Maximum Input Power 20 watts
VSWR 2:1 max
Connector N-type female x3
Dimensions 200 x 200 x 33 mm (7.9 x 7.9 x 1.25 inches)
Weight 0.8 kg (1.76 lbs)
Operating/Storage Temp. -45°C to +70°C

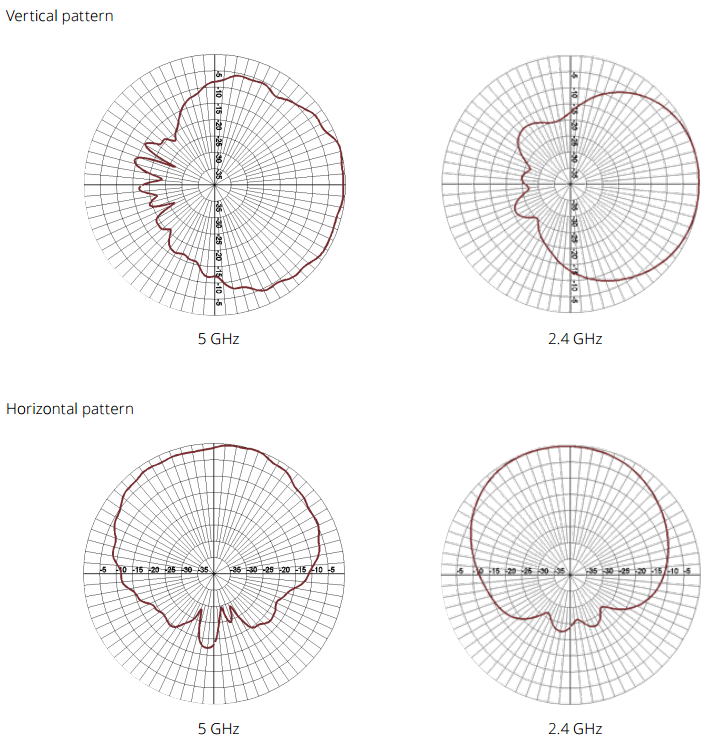

Antenna Pattern
ANT-3X3-D100 Antenna Pattern

ANT-3x3-D608 Outdoor 3x3 MIMO Multipolarized Antenna


ANT-3x3-D608 Outdoor 3x3 MIMO Multipolarized Antenna

The outdoor ANT-3×3-D608 MIMO antenna is multipolarized with 60° horizontal x 60° vertical beamwidths. This antenna is well suited for 2.4 and 5 GHz sector coverage for access.


Aruba Outdoor Antenna ANT-3x3-D608 Datasheet (.PDF)

JW035A
List Price: $395.00
Our Price: $355.00
Technical Specifications
Frequency/Gain • 4.9-6.0 GHz/7.5 dBi min
• 2.4-2.5 GHz/7.5 dBi min
Polarization & Element Type V, and slant +/- 45°
Beamwidth • Horizontal plane: 60°
• Vertical plane: 60°
Housing • Housing: Aluminum
• Radome: Plastic
Impedance 50 ohms
Maximum Input Power 6 watts
VSWR 2:1 max
Connector N-type female x3 (RF cables not included)
Dimensions 197.5 x 197.5 x 34.5 mm (7.5 x 7.5 x 1.2 inches)
Weight 521 g (1.15 lbs)
Operating/Storage Temp. -45°C to +70°C

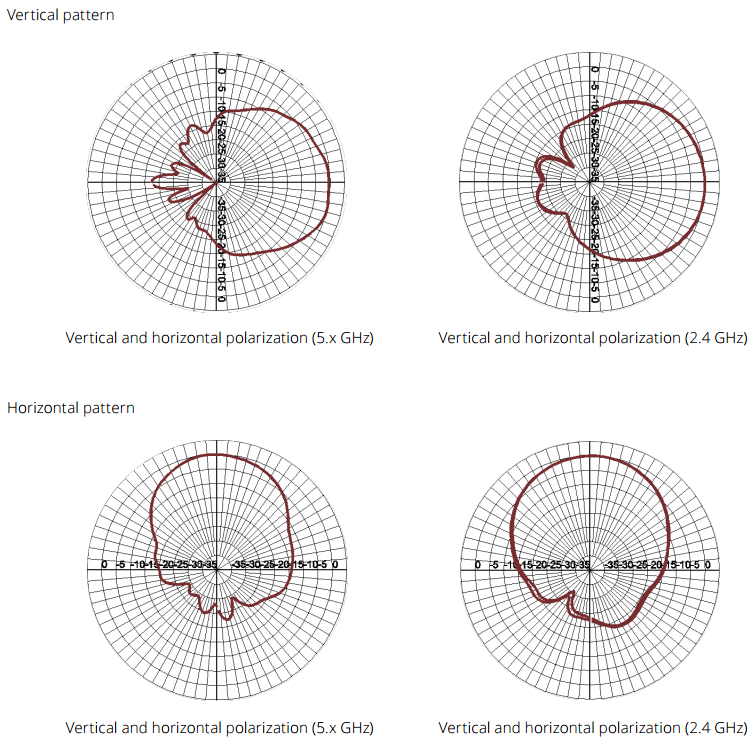

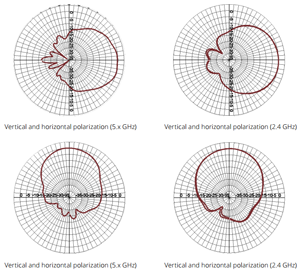

Antenna Pattern
ANT-3X3-D608 Antenna Pattern

ANT-4x4-5314 Outdoor 4.9-6.0 GHz MIMO Multipolarized Antenna


ANT-4x4-5314 Outdoor 4.9-6.0 GHz MIMO Multipolarized Antenna

ANT-4x4-5314 is a multi polarized antenna with 30° H x 30° V beamwidths. This antenna is well suited for coverage along a street, spot coverage, or for covering a seating section in stadiums and other large public venues. It is also ideal for point-to-point connections. The narrower beamwidth reduces the zone where interference may be received.


Aruba Outdoor Antenna ANT-4X4-5314 Datasheet (.PDF)

JX988A
List Price: $695.00
Our Price: $625.00
Technical Specifications
Frequency/Gain 4.9 – 6.0 GHz (14dBi)
Polarization & Element Type H, V, and Dual Slant 45
Beamwidth • Horiz Plane: 30°
• Vert Plane: 30°
Housing • Backplate: Aluminum
• Radome: Plastic
Impedance 50 ohms
Max Input Power 6 watts
VSWR 2:1 max
Connectors N-type female x4 (RF cables not included)
Dimensions 260 x 260 x 30 mm (7.5 x 7.5 x 1.2 inches)
Weight 1200 g (2.6 lbs)
Operating Temperature -45°C to +65°C
Antenna Pattern
ANT-4X4-5314 Antenna Pattern
