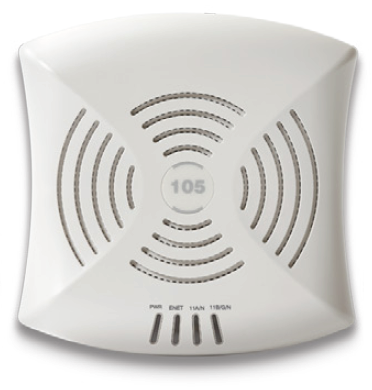

Aruba Instant 105 Wireless Access Point
Features two 2×2 MIMO dual-band 2.4- and 5-GHz radios with two internal omni-directional antennas.
| Aruba Networks Products | ||
|---|---|---|
| Aruba Instant Wireless Access Point | ||
| Instant 105 Wireless Access Point -802.11abgn, dual-band, dual radio, integrated antennas |
IAP-105-US List Price: $695.00 Our Price: $590.00 |
|
Aruba IAP-105 Access Point:
Overview:
Aruba Instant™ virtualizes Aruba Mobility Controller capabilities on 802.11n access points (AP), creating a feature-rich enterprisegrade wireless LAN (WLAN) that delivers the affordability and simplicity of an entry-level Wi-Fi network.
Offering impressive scalability, Aruba Instant can be installed at a single site or deployed across multiple geographically-dispersed locations. Up to 16 Aruba Instant APs can be controlled by a single AP that automatically becomes a primary Virtual Controller. In the event of primary Virtual Controller failure, another Aruba Instant AP automatically takes on the role with no disruption.
The Aruba Instant product family consists of three access points – the Aruba IAP-105, IAP-92 and the IAP-93. The IAP-
105 features two 2x2 MIMO dual-band 2.4- and 5-GHz radios with two internal omni-directional antennas. The IAP-92
features a single 2x2 MIMO dual-band 2.4- or 5-GHz radio with external antennas while the IAP-93 offers the same
features with internal antennas.
Virtual Controller Technology
The Virtual Controller technology in Aruba Instant delivers enterprise-grade capabilities such as AP auto discovery, 802.1X
authentication, role- and device-based policy enforcement, rogue detection and Adaptive Radio Management (ARM),
which optimizes Wi-Fi client behavior by making sure that APs stay clear of RF interference.
Ease of Deployment
Aruba Instant is up and running in minutes. From a laptop, simply connect wirelessly to an SSID to perform over-theair
provisioning in three easy steps. To expand, just install more Aruba Instant APs – configurations are automatically
uploaded from the designated Virtual Controller.
Management and Visibility
Multiple Aruba Instant networks can be securely and centrally managed by AirWave™, allowing Aruba Instant to operate
hundreds of remote locations. With AirWave, IT has real-time visibility into users, mobile devices, Aruba WLANs and the
wired infrastructure from a single management console.
Investment Protection
As WLAN requirements expand, Aruba Instant can be re-imaged as an 802.11n campus AP and migrate to a centralized
Mobility Controller architecture that supports up to 2,048 APs. In addition to providing WLAN access, APs in a centralized,
controller architecture can provide wireless intrusion protection and powerful spectrum analysis capabilities.
Specifications:
| Technical Specifications for Instant Wireless Access Points | ||
|---|---|---|
| Application | ||
| 802.11n single or dual-radio, dual-band APs for medium to high-density deployments | ||
| Operating Mode | ||
802.11a/b/g/n AP |
||
| Radios | ||
| Software-configurable single/dual radio capable of supporting 2.4GHz and 5GHz Dual radio 802.11n capable (IAP-105 only), implementing 2x2 MIMO with two spatial streams, providing up to 300 Mbps data rate per radio |
||
| Wireless Radio Specifications | ||
| AP type: | Single-radio / Dual-radio, dual-band 802.11n indoor | |
| Supported frequency bands: | 2.400 to 2.4835 GHz 5.150 to 5.250 GHz 5.250 to 5.350 GHz 5.470 to 5.725 GHz 5.725 to 5.850 GHz |
|
| Available channels: | dependent upon configured regulatory domain | |
| Supported radio Technologies: | ||
| 802.11b: | Direct-sequence spread-spectrum (DSSS) | |
| 802.11a/g/n: | Orthogonal frequency division multiplexing (OFDM) | |
| 802.11n: | 2x2 MIMO with 2 spatial streams | |
| Supported Manipulation types: | ||
| 802.11b: | BPSK, QPSK, CCK | |
| 802.11a/g/n: | BPSK, QPSK, 16-QAM, 64-QAM | |
| Transmit Power: | Configurable in increments of 0.5 dBm | |
| Maximum transmit power: | ||
| 2.4 GHz: | 23 dBm (limited by local regulatory requirements) | |
| 5 GHz: | 23 dBm (limited by local regulatory requirements) | |
| Maximum ratio combining (MRC) for improved receiver performance | ||
| Association rates (Mbps): | ||
| 802.11b: | 1, 2, 5.5, 11 | |
| 802.11a/g: | 6, 9, 12, 18, 24, 36, 48, 54 | |
| 802.11n: | MCS0 - MCS15 (6.5 Mbps - 300 Mbps) | |
| 802.11n high-throughput (HT) Support: | HT 20/40 | |
| 802.11n packet aggregation: | A-MPDU, A-MSDU | |
| Power | ||
48 V DC 802.3af power over Ethernet |
||
| Maximum power consumption: | ||
| IAP-92/93: | 10 watts | |
| IAP-105: | 12.5 watts | |
| Antenna | ||
| IAP-92: | dual, RP-SMA interfaces for external antenna support | |
| IAP-93: | integrated, omni-directional antenna elements (supporting up
to 2x2 MIMO with spatial diversity) 2.4 GHz/2.5 dBi 5 GHz/5.8 dBi |
|
| IAP-105: | 4 x integrated, omni-directional antenna elements (supporting
up to 2x2 MIMO with spatial diversity). Maximum antenna gain: 2.4 GHz/2.5 dBi 5.150 GHz to 5.875 GHz/4.0 dBi |
|
| Interfaces | ||
| Network: | 1 x 10/100/1000Base-T Ethernet (RJ45), auto-sensing link speed and MDI/MDX | |
| Power: | 1 x DC power connector | |
| Other: | 1 x RJ-45 console interface | |
| RF Management | ||
| Automatic transmit power and channel management control with auto coverage hole correction via Adaptive Radio Management (ARM) | ||
| Advanced Features | ||
| Wireless intrusion detection Integrated Trusted Platform Module (TPM) for secure credential storage |
||
| Mounting | ||
| Standard: Wall Tool-less ceiling tile rail (15/16") Mounting Kit: Solid wall mount bracket Wall box mount bracket (fits standard US single gang wall boxes) Ceiling tile rail adapters (15/16" & 9/16" recessed or non- recessed) |
||
| Mechanical | ||
| Dimensions/weight(unit): | ||
| IAP-92/93: | 120 mm x 130 mm x 35 mm (4.7" x 5.1" x 1.4") 0.26 kg (9 oz) |
|
| IAP-105 | 132 mm x 135 mm x 45 mm (5.2" x 5.3" x 1.8") 0.30 kg (10.6 oz) |
|
| Dimensions/weight(shipping): | ||
| IAP-92/93: | 180 mm x 155 mm x 45 mm (7.1" x 6.1" x 1.8") 0.37 kg (13.2 oz) |
|
| IAP-105 | 195 mm x 170 mm x 55 mm (7.7" x 6.7" x 2.2") 0.44 kg (15.5 oz) |
|
| Environmental | ||
| Operating: | ||
| Temp: | 0° C to 50° C (+32° F to +122° F) | |
| Humidity: | 5 to 95% non-condensing | |
| Storage and transportation temperature range: | ||
| Temp: | -40° C to +70° C (-40° F to +158° F) | |
| Regulatory | ||
| FCC/Industry of Canada R&TTE Directive 1995/5/EC 72/23/EEC EN 300 328 EN 301 893 CB Scheme Safety, cTUVus Korea KCC Mexico NOM/COFETEL UL2043 Compliant CE Marked Low Voltage Directive EN 301 498 UL/IEC/EN 60950 Japan MIC/VCCI Brazil ANATEL China SRRC/CCC |
||
| Certifications | ||
| Wi-Fi certified: | 802.11a/b/g/n | |
| Warranty | ||
| Limited lifetime warranty | ||
Wireless Radio Specifications:
| RF Performance Table | ||||||||
|---|---|---|---|---|---|---|---|---|
| IAP-92 / IAP-93 | IAP-105 | |||||||
| Max TX power per active TX chain (dBm) | RX Sensitivity (dBm) | Max TX power per active TX chain (dBm) | RX Sensitivity (dBm) | Max TX power per active TX chain (dBm) | RX Sensitivity (dBm) | Max TX power per active TX chain (dBm) | RX Sensitivity (dBm) | |
| 2.4 GHz | 5 GHz | 2.4 GHz | 5 GHz | |||||
| 802.11b | ||||||||
| 1Mbps | 18 | -96 | 20 | -96 | ||||
| 2Mbps | 18 | -96 | 20 | -96 | ||||
| 5.5Mbps | 18 | -94 | 20 | -94 | ||||
| 11Mbps | 18 | -93 | 20 | -93 | ||||
| 802.11a/g | ||||||||
| 6Mbps | 18 | -93 | 18 | -93 | 20 | -96 | 20 | -96 |
| 9Mbps | 18 | -93 | 18 | -93 | 20 | -96 | 20 | -96 |
| 12Mbps | 18 | -87 | 18 | -87 | 20 | -96 | 20 | -96 |
| 18Mbps | 18 | -87 | 18 | -87 | 20 | -95 | 20 | -95 |
| 24Mbps | 18 | -85 | 18 | -85 | 20 | -92 | 20 | -91 |
| 36Mbps | 15 | -82 | 15 | -82 | 19 | -89 | 19 | -88 |
| 48Mbps | 14 | -80 | 14 | -80 | 18 | -85 | 18 | -84 |
| 54Mbps | 14 | -80 | 14 | -80 | 17 | -83 | 17 | -83 |
| 802.11n HT20 | ||||||||
| MCS0 | 18 | -93 | 18 | -93 | 20 | -96 | 20 | -96 |
| MCS1 | 17 | -93 | 17 | -93 | 20 | -95 | 20 | -94 |
| MCS2 | 17 | -87 | 17 | -87 | 20 | -93 | 20 | -92 |
| MCS3 | 16 | -87 | 16 | -87 | 20 | -90 | 20 | -89 |
| MCS4 | 16 | -83 | 16 | -83 | 19 | -87 | 19 | -86 |
| MCS5 | 15 | -80 | 15 | -80 | 18 | -82 | 18 | -82 |
| MCS6 | 14 | -77 | 14 | -77 | 17 | -81 | 17 | -80 |
| MCS7 | 13 | -75 | 13 | -75 | 15 | -80 | 15 | -79 |
| MCS8 | 18 | -93 | 18 | -93 | 20 | -95 | 20 | -95 |
| MCS9 | 17 | -93 | 17 | -93 | 20 | -93 | 20 | -92 |
| MCS10 | 17 | -87 | 17 | -87 | 20 | -91 | 20 | -90 |
| MCS11 | 16 | -87 | 16 | -87 | 20 | -87 | 20 | -87 |
| MCS12 | 16 | -83 | 16 | -83 | 19 | -84 | 19 | -84 |
| MCS13 | 15 | -80 | 15 | -80 | 18 | -81 | 18 | -80 |
| MCS14 | 14 | -77 | 14 | -77 | 17 | -80 | 17 | -78 |
| MCS15 | 13 | -75 | 13 | -75 | 15 | -77 | 15 | -77 |
| 802.11n HT40 | ||||||||
| MCS0 | 18 | -90 | 18 | -90 | 20 | -93 | 20 | -92 |
| MCS1 | 17 | -90 | 17 | -90 | 20 | -93 | 20 | -92 |
| MCS2 | 17 | -87 | 17 | -87 | 20 | -90 | 20 | -89 |
| MCS3 | 16 | -84 | 16 | -84 | 20 | -86 | 20 | -86 |
| MCS4 | 16 | -80 | 16 | -80 | 19 | -83 | 19 | -83 |
| MCS5 | 15 | -77 | 15 | -77 | 18 | -79 | 18 | -80 |
| MCS6 | 14 | -77 | 14 | -77 | 17 | -77 | 17 | -77 |
| MCS7 | 13 | -73 | 13 | -73 | 15 | -76 | 15 | -76 |
| MCS8 | 18 | -90 | 18 | -90 | 20 | -92 | 20 | -92 |
| MCS9 | 17 | -90 | 17 | -90 | 20 | -89 | 20 | -90 |
| MCS10 | 17 | -87 | 17 | -87 | 20 | -87 | 20 | -87 |
| MCS11 | 16 | -84 | 16 | -84 | 20 | -84 | 20 | -84 |
| MCS12 | 16 | -80 | 16 | -80 | 19 | -82 | 19 | -81 |
| MCS13 | 15 | -77 | 15 | -77 | 18 | -76 | 18 | -77 |
| MCS14 | 14 | -77 | 14 | -77 | 17 | -76 | 17 | -75 |
| MCS15 | 13 | -73 | 13 | -73 | 15 | -73 | 15 | -73 |
Maximum capability of the hardware provided. Maximum transmit power will be limited by local regulatory settings.
Antenna Plots:
 |
 |
| 2.45 GHz | |
 |
|
| 5.5 GHz | |
 |
|
