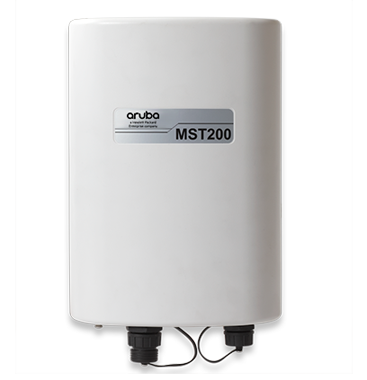

Aruba MST200 Outdoor Wireless Mesh Access Router
Delivers High-Performance Outdoor Wireless Mesh Connectivity

Aruba MST200 Outdoor Wireless Mesh Access Router

Sorry, this product is no longer available, Supports available below. Please contact us for a replacement solution.

Overview

Features

Specifications

Antenna Pattern Plots

Comparison

Documentation

Overview:

The Aruba AirMesh MST200 outdoor wireless mesh access router delivers highperformance outdoor wireless mesh connectivity for remote locations and devices such as IP video surveillance cameras and digital signage.

Ruggedized and hardened to withstand extreme environmental conditions, the MST200 is ideal for providing 802.11n connectivity in metropolitan and industrial areas, oilfields, mines, shipping ports, traffic corridors and large public areas. Supporting data rates up to 300 Mbps, the MST200 a reliable and cost-effective alternative to cabling or fiber.

Running the Aruba MeshOS operating system, the MST200 features a single 5-GHz 2x2 MIMO radio with dual spatial streams and patented Adaptive Wireless Routing (AWR) technology. Together, these features offer unparalleled speed, reliability, and low latency for voice, video and other real-time multimedia-grade applications.

Features:

Optimized for Long-distance Transmission

With an integrated directional antenna, the MST200 provides a long-range backhaul link that connects to the AirMesh network or another MST200 up to six miles away. Radio optimization enables the MST200 to preserve the integrity of applications over long distances.

Traffic Prioritization and Quality of Service

As part of the AirMesh wireless network, the MST200 enforces prioritization and quality of service (QoS) for latency-sensitive video and voice traffic. When multiple data streams enter the AirMesh network, the MST200 can automatically identify and tag specific latency-sensitive traffic to guarantee priority treatment across the mesh.

Video Optimization Technology

The MST200 also ensures the delivery HD-quality video from surveillance cameras, monitors and recording systems using Active Video Transport (AVT) technology. Inherent in the Aruba MeshOS, AVT uses deep packet-inspection, MAC protocol optimization, in-network retransmission protocol and adaptive video jitter removal to provide enhanced video at up to 30 frames per second across the distributed wireless mesh.

Specifications:

MST200 Specifications
Application Single radio outdoor wireless mesh access router Operating Mode 802.11a/n mesh router for backhaul Radios Single 5-GHz radio Radio implements 2x2 MIMO with two spatial streams, providing up to 300 Mbps data rate Maximum aggregate transmit power per radio: up to 25 dBm Dual receiver chain maximal ratio combining (MRC) for improved receiver performance RF Management RF interference detection and avoidance Wireless Radio Specifications AP type: outdoor, single radio, 802.11a/n 5 GHz Supported frequency bands (country-specific restrictions apply): 5.470 to 5.725 GHz 5.725 to 5.850 GHz Available channels: Dependent on configured regulatory domain Maximum transmit power: 25 dBm (325 mW) limited by local regulatory requirements Supported radio technologies: 802.11a/n: Orthogonal frequency division multiplexing (OFDM) 802.11n: 2x2 MIMO with two spatial streams Supported modulation types: 802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM Association Rates 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: MCS0 – MCS15 (6.5 Mbps to 300 Mbps) 802.11n high-throughput (HT) support: HT 20/40 802.11n packet aggregation: A-MPDU, A-MSDU Power Power 802.3af PoE input (MST2HP) 100-240 VAC 50/60 Hz (MST2HAC) AC unit support 802.3at power out on ethernet port Power consumption: 12.5 watts max (excludes power consumed by any PoE device connected to and powered by the MST200 AC versions) Antennas Built in antenna Frequency range and max gain: 5.470 to 5.700 GHz: > 11.5 dBi 5.700 to 5.900 GHz: 13 dBi Beamwidth: E-plane: 13 degrees H-plane: 55 degrees Aruba Meshos Aruba MeshOS is a feature-rich operating system that is used across all MSR wireless mesh routers Routing Features Adaptive Wireless Routing (AWR) Layer 3 optimal route selection Fast convergence and failover Multiple concurrent gateways OSPF enables integration with existing routing topologies Networking NAT/PAT DHCP server, relay, client 4,000 VLANs Support for HTTP, HTTPS, SSH, Telnet, SMNP, NTP and ICMP Security End-to-end WPA/WPA2, TKIP (128 bit), PSK, AES (128 bit) Authentication: 802.1X (RADIUS), EAP methods MAC and IP address filtering Access Control List (ACL) Digital certificates Traffic Management Wi-Fi Multimedia (WMM), 802.11e IEEE 802.1p prioritization DSCP/DiffServ Bandwidth control RF Management Automatic channel selection RF interference detection and avoidance 16 BSSIDs Adaptive baud rate control	Mounting Mounting kit: Pole/mast mounting Wall mounting Mechanical Dimensions/weight (unit) 255 mm x 180 mm x 82 mm (10” x 7” x 3.3”) 1.8 kg (4.0 lb) Dimensions/weight (shipping) 425 mm x 335 mm x 225 mm (16.7” x 13.2” x 8.8”) 4.5 kg (9.9 lb) Environmental Operating: Temperature: -40º C to 60º C (-40º F to 140º F) for PoE powered models; -40º C to 60º C (-40º F to 140º F) for AC powered models Humidity: 5% to 95% non-condensing Storage and transportation temperature range: -40º C to 70º C (-40º F to 158º F) Weather rating: IP66 Wind survivability: Up to 165 mph Shock and vibration: ETSI 300-19-2-4 spec T41.E class 4M3 Transportation: ISTA 2A Regulatory Regulatory Model Numbers MST200 AC Powered: MST2H13N1 MST200 PoE Powered: MST2H13N0 Safety EN 60950-1 IEC60950-1 UL 60950-1 CAN/CSA-C22.2 No.60950-1 ANSI/IEEE C62.41 UL1449-2 EMC EN310 489 EN55022 EN61000 FCC Part 15 RSS-Gen RF CFR47 FCC Part 15 RSS-210 EN 301 893 Certification FCC IC CE CB cTUVus RoHS SRRC (China) Advanced Features Virtual Private LAN over Mesh (VPLN) provides native Layer 2 over Layer 3 interface to external networks Active Video Transport (AVT) technology performs deep packet inspection, adaptive jitter removal and corrects transmission packet loss MobileMatrix technology allows users to roam between mesh routers while maintaining their application sessions Interfaces Network: 1 x 10/100/1000BASE-T Ethernet (RJ45), auto-sensing link speed and MDI/MDX Power: 1 x AC power connector (MST2HAC model only) Other: 1 x USB console interface Warranty 1 year parts/labor

MST200 Specifications

Application

Single radio outdoor wireless mesh access router

Operating Mode

802.11a/n mesh router for backhaul

Radios

Single 5-GHz radio
Radio implements 2x2 MIMO with two spatial streams, providing up to 300 Mbps data rate
Maximum aggregate transmit power per radio: up to 25 dBm
Dual receiver chain maximal ratio combining (MRC) for improved receiver performance

RF Management

RF interference detection and avoidance

Wireless Radio Specifications

AP type: outdoor, single radio, 802.11a/n 5 GHz
Supported frequency bands (country-specific restrictions apply):
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
Available channels: Dependent on configured regulatory domain
Maximum transmit power: 25 dBm (325 mW) limited by local regulatory requirements
Supported radio technologies:
- 802.11a/n: Orthogonal frequency division multiplexing (OFDM)
- 802.11n: 2x2 MIMO with two spatial streams
Supported modulation types:
- 802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM
Association Rates
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: MCS0 – MCS15 (6.5 Mbps to 300 Mbps)
- 802.11n high-throughput (HT) support: HT 20/40
- 802.11n packet aggregation: A-MPDU, A-MSDU

Power

Power
- 802.3af PoE input (MST2HP)
- 100-240 VAC 50/60 Hz (MST2HAC)
- AC unit support 802.3at power out on ethernet port
Power consumption: 12.5 watts max (excludes power consumed by any PoE device connected to and powered by the MST200 AC versions)

Antennas

Built in antenna
Frequency range and max gain:
- 5.470 to 5.700 GHz: > 11.5 dBi
- 5.700 to 5.900 GHz: 13 dBi
Beamwidth:
- E-plane: 13 degrees
- H-plane: 55 degrees

Aruba Meshos

Aruba MeshOS is a feature-rich operating system that is used across all MSR wireless mesh routers
Routing Features
- Adaptive Wireless Routing (AWR)
  - Layer 3 optimal route selection
  - Fast convergence and failover
  - Multiple concurrent gateways
- OSPF enables integration with existing routing topologies
Networking
- NAT/PAT
- DHCP server, relay, client
- 4,000 VLANs
- Support for HTTP, HTTPS, SSH, Telnet, SMNP, NTP and ICMP
Security
- End-to-end WPA/WPA2, TKIP (128 bit), PSK, AES (128 bit)
- Authentication: 802.1X (RADIUS), EAP methods
- MAC and IP address filtering
- Access Control List (ACL)
- Digital certificates
Traffic Management
- Wi-Fi Multimedia (WMM), 802.11e
- IEEE 802.1p prioritization
- DSCP/DiffServ
- Bandwidth control
RF Management
- Automatic channel selection
- RF interference detection and avoidance
- 16 BSSIDs
- Adaptive baud rate control

Mounting

Mounting kit:
- Pole/mast mounting
- Wall mounting

Mechanical

Dimensions/weight (unit)
- 255 mm x 180 mm x 82 mm (10” x 7” x 3.3”)
- 1.8 kg (4.0 lb)
Dimensions/weight (shipping)
- 425 mm x 335 mm x 225 mm (16.7” x 13.2” x 8.8”)
- 4.5 kg (9.9 lb)

Environmental

Operating:
- Temperature: -40º C to 60º C (-40º F to 140º F) for PoE powered models; -40º C to 60º C (-40º F to 140º F) for AC powered models
- Humidity: 5% to 95% non-condensing
Storage and transportation temperature range: -40º C to 70º C (-40º F to 158º F)
Weather rating: IP66
Wind survivability: Up to 165 mph
Shock and vibration: ETSI 300-19-2-4 spec T41.E class 4M3
Transportation: ISTA 2A

Regulatory

Regulatory Model Numbers
- MST200 AC Powered: MST2H13N1
- MST200 PoE Powered: MST2H13N0
Safety
- EN 60950-1
- IEC60950-1
- UL 60950-1
- CAN/CSA-C22.2
- No.60950-1
- ANSI/IEEE C62.41
- UL1449-2
EMC
- EN310 489
- EN55022
- EN61000
- FCC Part 15
- RSS-Gen
RF
- CFR47 FCC Part 15
- RSS-210
- EN 301 893
Certification
- FCC
- IC
- CE
- CB
- cTUVus
- RoHS
- SRRC (China)

Advanced Features

Virtual Private LAN over Mesh (VPLN) provides native Layer 2 over Layer 3 interface to external networks
Active Video Transport (AVT) technology performs deep packet inspection, adaptive jitter removal and corrects transmission packet loss
MobileMatrix technology allows users to roam between mesh routers while maintaining their application sessions

Interfaces

Network:
- 1 x 10/100/1000BASE-T Ethernet (RJ45), auto-sensing link speed and MDI/MDX
Power:
- 1 x AC power connector (MST2HAC model only)
Other:
- 1 x USB console interface

Warranty

1 year parts/labor

Antenna Pattern Plots:

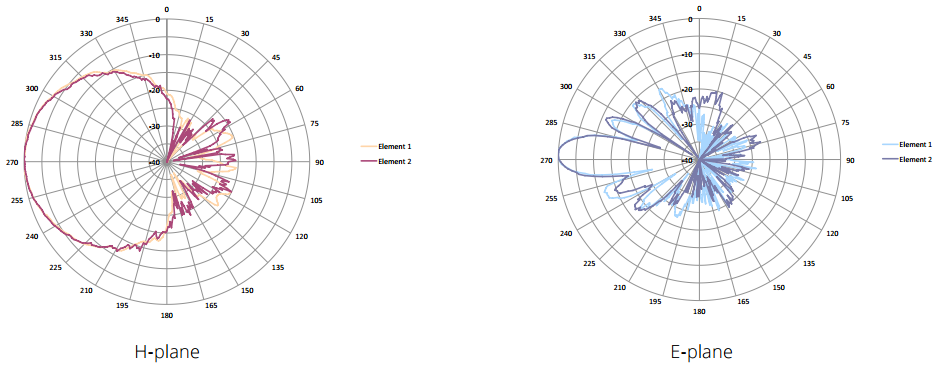

5.500 GHz

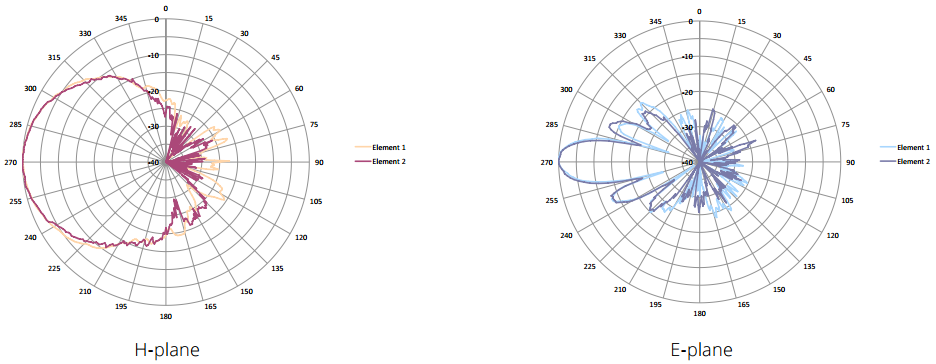

5.875 GHz

Aruba Mesh Router Comparison:

	MSR4000	MSR2000	MST200
Form Factor
Applications
Description	The MSR4000 is a high performance 802.11N enabled mesh router delivering performance similar to wireline at up to 300 Mbps per radio. The MSR4000 features four 2x2 MIMO dualband 2.4/5 GHz radios. The MSR4000 is built to provide years of trouble-free operation in a variety of applications. The MSR4000 leverages Aruba's Adaptive Wireless Routing (AWR) technology, which automatically optimizes traffic routes between multiple wireless mesh routers.	The MSR2000 is a high performance 802.11N enabled mesh router delivering performance similar to wireline at up to 300 Mbps per radios. The MSR2000 features two 2x2 MIMO dualband 2.4/5 GHz radios. The MSR2000 is built to provide years of trouble-free operation in a variety of applications. The MSR2000 leverages Aruba's Adaptive Wireless Routing (AWR) technology, which automatically optimizes traffic routes between multiple wireless mesh routers.	The MST200 is a high performance 802.11N enabled mesh router delivering performance similar to wireline at up to 300 Mbps per radio. The MST200 features a single 5-GHz 2x2 MIMO radio with a built in antenna. The MST200 is built to provide years of trouble-free operation in a variety of applications. The MST200 leverages Aruba's Adaptive Wireless Routing (AWR) technology, which automatically optimizes traffic routes between multiple wireless mesh routers.
WiFi Access	Yes	Yes	Yes
Mesh	Yes	Yes	No
Point-to-Point	Yes	Yes	Yes
Point-to-Multipoint	Yes	Yes	Yes
Portal	Yes	Yes	Yes
Number of Radios	Quad Radio	Dual Radio	Single Radio
Operating Frequencies	2.4, 5, 4.9GHz	2.4, 5, 4.9GHz	5 GHz
DFS Support	Yes (EU and Japan)	Yes (EU and Japan)	Yes (EU and Japan)
RF Management	RF interference detection and avoidance
Antennas	Eight N-type female arranged in four pairs to support 802.11N 2x2 MIMO operation	Four N-type female arranged in two pairs to support 802.11N 2x2 MIMO operation	Integrated directional antenna providing 802.11N 2x2 MIMO operation over a 60° sector
Network Interfaces	1x100/1000BASE-T Ethernet (RJ-45), Auto-sensing link speed and MDI/MDX	1x100/1000BASE-T Ethernet (RJ-45), Auto-sensing link speed and MDI/MDX	1x100/1000BASE-T Ethernet (RJ-45), Auto-sensing link speed and MDI/MDX
Other Interfaces	USB console interface	USB console interface	USB console interface
Power over Ethernet (PoE)	48 Volt, 4 Pair 803.3at (60W)	48 Volt, standard 803.3at	48 Volt, standard 803.3af
AP Power Interface	100~240 VAC 50/60 Hz	100~240 VAC 50/60 Hz	100~240 VAC 50/60 Hz
DC Power Interface	Not Supported	12-48 volt DC from external DC power source	Not Supported
Power Consumption	36 watts (maximum)	15 watts (maximum)	12.5 watts (maximum)
Operating Temperature	-40° C to +55° C (-40° F to +131° F) AC -30° C to +60° C (-22° F to +140° F) PoE	-40° C to +55° C (-40° F to +131° F) AC/DC -30° C to +60°C (-22° F to +140° F) PoE	-40 to +55°C (-40 to +131°F) AC -30° C to +60°C (-22° F to +140° F) PoE
Product Warranty	1 year parts and labor

Documentation:

Aruba MST200 Outdoor Wireless Mesh Access Router Data Sheet (.PDF)
