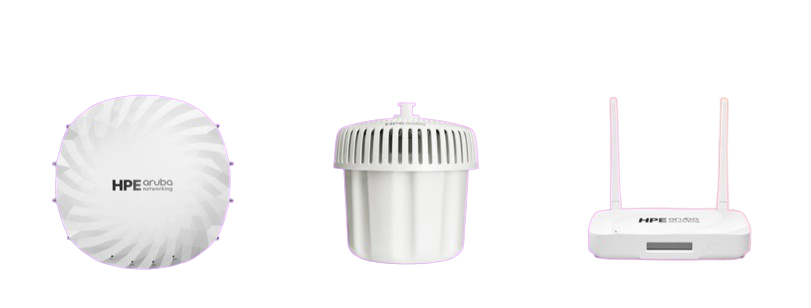

Wi-Fi That Works Smarter, Not Harder
Discover HPE Aruba Networking Wi-Fi 6, 6E, and 7 indoor access points — built for performance, reliability, and security. From small offices to large enterprises, find the perfect AP for your space.
Which Indoor AP Fits Your Space?
Choose the right wireless solution for your environment — proven Wi-Fi 6 performance, next-gen 6E capacity, or future-ready Wi-Fi 7.

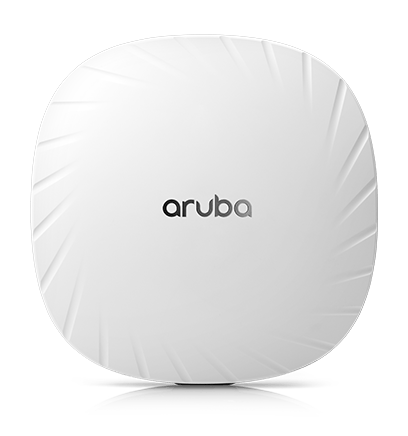

Wi-Fi 6 (510 Series)
Best For: Everyday business, classrooms & retail
Performance: Reliable speed, flexible mounting
Value: Budget-friendly & proven
Wi-Fi 6E (630 Series)
Best For: High-density offices & hospitals
Performance: Tri-band coverage, no congestion
Spectrum: 6 GHz band advantage
Wi-Fi 7 (700 Series)
Best For: Large enterprises & campuses
Performance: Cloud-only, multi-gig 10 G ports
Management: AI-powered Aruba Central
Why Choose HPE Aruba Networking Indoor Access Points?
Set it once, and your Wi-Fi takes care of itself — powered by Aruba's AI.
AI-Powered Optimization
AirMatch & ClientMatch eliminate sticky clients and auto-tune RF for peak performance.
Future-Ready Wi-Fi 7
Up to 28.8 Gbps with tri-band 4x4 MIMO and multi-link operation.
Energy Efficient
PoE 6 (60 W) with Intelligent Power Monitoring dynamically adjusts for sustainability.
IoT Platform Ready
Built-in BLE, Zigbee, dual USB ports, and edge containers for IoT at scale.
Enterprise Security
Zero Trust, WPA3, MACsec, TPM 2.0, and Policy Enforcement Firewall.
Easy Cloud Management
Aruba Central unified dashboard for wireless, wired, and SD-WAN.
Shop Indoor Access Points by Wi-Fi Generation
Each series combines HPE Aruba Networking's renowned reliability with AI-driven insight and effortless deployment.
Wi-Fi 6 Campus Access Points
Proven Wi-Fi 6 performance for dense networks — designed to reduce latency, increase throughput, and save power intelligently.
AP-503
Affordable Wi-Fi 6 | Low-to-medium density
- Dual-radio 2x2 802.11ax (HE)
- 1 GbE uplink port
- Up to 1.49 Gbps combined data rate
AP-504 (External Antenna)
Affordable Wi-Fi 6 | Low-to-medium density
- Dual-radio 2x2 802.11ax (HE)
- 1 GbE uplink port
- Up to 1.49 Gbps combined data rate
AP-505
Affordable Wi-Fi 6 | Low-to-medium density
- Dual-radio 2x2 802.11ax (HE)
- 1 GbE uplink port
- Up to 1.49 Gbps combined data rate
AP-514 (External Antenna)
High-performance Wi-Fi 6 | Medium-to-high density
- Dual-radio 4x4 802.11ax (HE)
- 2.5 GbE uplink port
- Up to 2.69 Gbps throughput
AP-515
High-performance Wi-Fi 6 | Medium-to-high density
- Dual-radio 4x4 802.11ax (HE)
- 2.5 GbE uplink port
- Up to 2.69 Gbps throughput

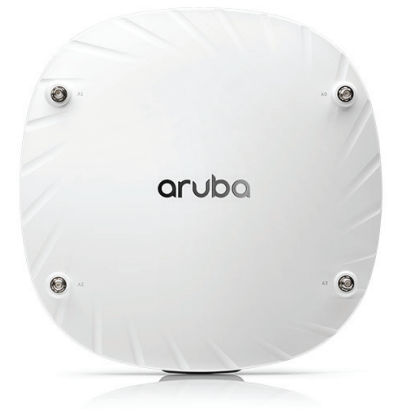

AP-534 (External Antenna)
Premium Wi-Fi 6 | High-density environments
- Dual-radio 4x4 802.11ax (HE)
- Multi-Gig uplink port
- Up to 2.97 Gbps throughput

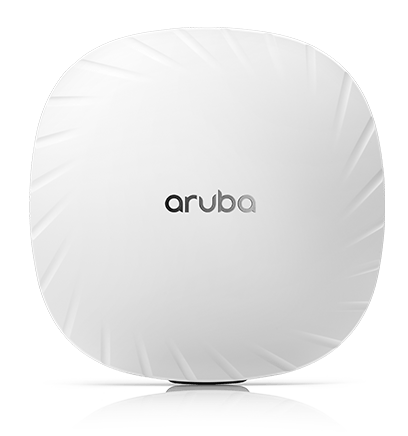

AP-535
Premium Wi-Fi 6 | High-density environments
- Dual-radio 4x4 802.11ax (HE)
- Multi-Gig uplink port
- Up to 2.97 Gbps throughput

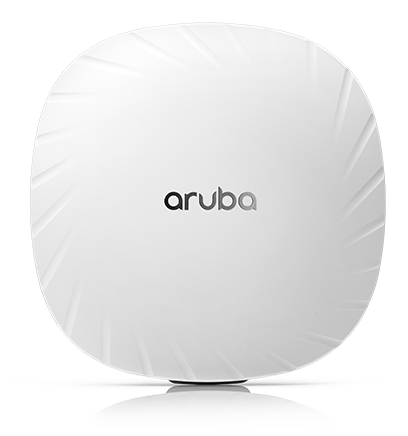

AP-555
Extreme Wi-Fi 6 | Ultra-high density
- Tri-radio 4x4/4x4/2x2 802.11ax
- Multi-Gig uplink port
- Up to 5.37 Gbps throughput
Wi-Fi 6E Campus Access Points
Tri-band performance with 6 GHz support — more capacity, less interference, and faster speeds for high-density indoor environments.
AP-615
Entry-level Wi-Fi 6E | 6 GHz support
- Tri-radio 2x2 802.11ax (2.4 GHz, 5 GHz, 6 GHz)
- 2.5 GbE uplink port
- Up to 3.9 Gbps combined data rate
AP-634
Mid-range Wi-Fi 6E | External antennas
- Tri-radio 2x2 802.11ax (2.4 GHz, 5 GHz, 6 GHz)
- Dual 2.5 GbE ports
- Up to 3.9 Gbps combined data rate
AP-635
Mid-range Wi-Fi 6E | Internal antennas
- Tri-radio 2x2 802.11ax (2.4 GHz, 5 GHz, 6 GHz)
- Dual 2.5 GbE ports
- Up to 3.9 Gbps combined data rate
AP-654
Flagship Wi-Fi 6E | High-density environments
- Tri-radio 4x4 802.11ax (2.4 GHz, 5 GHz, 6 GHz)
- Dual 5 GbE ports
- Up to 7.8 Gbps combined data rate
AP-655
Flagship Wi-Fi 6E | High-density environments
- Tri-radio 4x4 802.11ax (2.4 GHz, 5 GHz, 6 GHz)
- Dual 5 GbE ports
- Up to 7.8 Gbps combined data rate
Wi-Fi 7 Campus Access Points
Next-generation performance with AI-powered management and sub-meter location precision — cloud-only via Aruba Central.

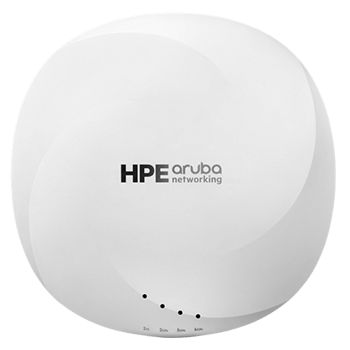

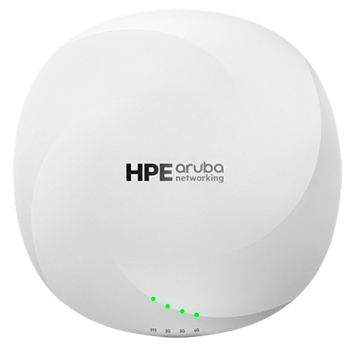

HPE Aruba Networking 700 Series (Wi-Fi 7) — Built for the Cloud Era
HPE Aruba Networking Wi-Fi 7 access points deliver more than fast Wi-Fi — with AI-powered performance, security, and visibility through Aruba Central cloud management.
Important: Wi-Fi 7 (700 Series) access points require ArubaOS 10 and Aruba Central for management — Instant or on-prem controllers are not supported.
AP-725
Cost-efficient Wi-Fi 7 | Up to ~4.7 Gbps combined data rate
- Tri-radio 2x2:2 802.11be (Wi-Fi 7)
- 2.5 GbE port
- IoT radio support
AP-734
Mid-range Wi-Fi 7 | External antennas | Up to ~9.3 Gbps
- Tri-radio 2x2 external antennas
- Dual 2.5 GbE ports
- Dual IoT radios + USB ports
AP-735
Mid-range Wi-Fi 7 | Internal antennas | Up to ~9.3 Gbps
- Tri-radio 2x2 internal antennas
- Dual 2.5 GbE ports
- Dual IoT radios + USB ports
AP-745
Right-sized Wi-Fi 7 | Up to ~9.3 Gbps aggregate data rate
- Tri-radio 4x4/2x2 MIMO 802.11be (Wi-Fi 7)
- 2.5 GbE uplink port
- IoT radio (BLE/Zigbee)
AP-754
Flagship Wi-Fi 7 | External antennas | Up to 28.8 Gbps
- Tri-radio 4x4 external antennas
- Dual 10 Gbps ports + power summing
- GNSS + barometric sensor
AP-755
Flagship Wi-Fi 7 | Internal antennas | Up to 28.8 Gbps
- Tri-radio 4x4 internal antennas
- Dual 10 Gbps ports + power summing
- GNSS + barometric sensor
Not sure which access point fits your environment?
Here's a quick guide to help you choose:
- Offices (20-50 users): 510 Series (Wi-Fi 6)
- Healthcare (high device density): 630 Series (Wi-Fi 6E)
- Enterprise Campuses: 700 Series (Wi-Fi 7)
- Cloud-only management? 700 Series (Wi-Fi 7)
- Budget-friendly & reliable? 510 Series (Wi-Fi 6)
- Need 6 GHz support? 630/700 Series
Smart Energy Management for Sustainability
HPE Aruba Networking indoor access points help reduce energy costs and carbon footprint — without sacrificing performance.
Dynamic Power Save & Intelligent Power Monitoring (IPM)
AI-powered dynamic power save mode wakes APs only when capacity demands it, while IPM provides real-time insights into energy consumption through Aruba Central and HPE GreenLake dashboards.
- Automatic power adjustment based on demand
- PoE Class 6 (60 W) with intelligent fallback
- Real-time carbon footprint measurement
Precision Location Services
Wi-Fi 7 APs include built-in GPS + barometric sensors for automatic self-location and floor-level accuracy. Combined with BLE 5.4, you get sub-1 meter precision for asset tracking and emergency response.
- Built-in GNSS (GPS) receivers
- Barometric sensors for floor-level mapping
- 802.11az standard for sub-1m precision
Uncompromised Security from Edge to Cloud
Trusted by global enterprises — from hospitals to universities. HPE Aruba Networking indoor APs deliver layered security at every level.
WPA3 & Enhanced Open
Stronger encryption and authentication for protected networks and guest access.
TPM 2.0 & Secure Boot
Hardware security module protects credentials, keys, and boot code.
Policy Enforcement Firewall
Dynamic segmentation and role-based policies without complex VLANs.
Zero Trust Network Access
AI-powered device profiling and continuous monitoring via Aruba Central.
Ready to Upgrade Your Indoor Wireless Network?
Let's design a Wi-Fi experience that's faster, more reliable, and future-proof. Choose HPE Aruba Networking Indoor Access Points and unlock a network that works smarter for your business.
