Outdoor & Ruggedized Portfolio
Wi-Fi That Works Outside
Discover Aruba Outdoor & Ruggedized Access Points built for extreme environments, high performance, and enterprise-grade connectivity. From campus quads to industrial yards, Aruba outdoor APs deliver weather-proof, IoT-ready wireless that stays strong when conditions don't.
Built for the Elements. Optimized for Performance.

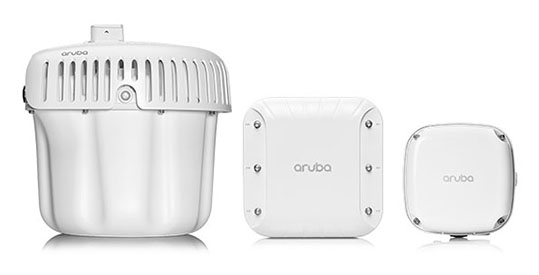

Aruba's outdoor access point portfolio spans Wi-Fi 6, Wi-Fi 6E, and now Wi-Fi 7 outdoor/rugged models featuring multi-gig Ethernet, PoE-ready power, IoT radios, and sealed enclosures for harsh conditions.
Why Choose Aruba Outdoor Access Points
From factory floors to festival grounds, Aruba Outdoor Access Points deliver enterprise Wi-Fi that won't quit. Built to handle dust, rain, and crowds, they optimize themselves in real time, protect every connection with Zero Trust security, and power IoT sensors and GPS tracking without extra hardware.
Built for harsh environments
Sealed, temperature-hardened enclosures survive rain, dust, extreme temps. IP66/67 rated for install-and-forget reliability.
AI-driven performance
Self-optimizing RF and client load balancing keep connections rock-solid, automatically adapting to changing conditions.
Secure by design
Zero-trust ready, enhanced encryption, full IoT radio integration with WPA3 Enterprise and Dynamic Segmentation.
Future-proof connectivity
Wi-Fi 7 is here outdoors; Wi-Fi 6E devices are already common. Multi-gig ports (2.5G, 5G, 10G) ensure no bottlenecks.
Find the Right Outdoor AP for You
Choose the perfect outdoor AP for your environment from entry-level outdoor coverage to industrial hazardous location models. Each series combines Aruba's legendary reliability with weatherproof construction and intelligent management.
560 Series - Wi-Fi 6 Outdoor Access Points
Entry-level outdoor Wi-Fi 6 access points engineered for weather-exposed locations. Up to 1.49 Gbps aggregated throughput with built-in IoT radios (Bluetooth, Zigbee) and hardened surge protection.
AP-565
Outdoor Wi-Fi 6 | Up to 1.49 Gbps
- Dual-radio 2x2 802.11ax (Wi-Fi 6)
- Weather-sealed IP66/67 enclosure
- Bluetooth & Zigbee IoT radios
AP-567
Outdoor Wi-Fi 6 | Up to 1.49 Gbps
- Dual-radio 2x2 802.11ax (Wi-Fi 6)
- Weather-sealed IP66/67 enclosure
- Bluetooth & Zigbee IoT radios
AP-565EX
Hazardous Location Wi-Fi 6 | Up to 1.49 Gbps
- Dual-radio 2x2 802.11ax (Wi-Fi 6)
- Class 1 Div 2 / ATEX Zone 2 certified
- Hazardous location rated
AP-567EX
Hazardous Location Wi-Fi 6 | Up to 1.49 Gbps
- Dual-radio 2x2 802.11ax (Wi-Fi 6)
- Class 1 Div 2 / ATEX Zone 2 certified
- Hazardous location rated
570 Series - High-Performance Wi-Fi 6 Outdoor
Very high Wi-Fi 6 performance with dual radios for ruggedized and harsh outdoor environments. Up to 2.69 Gbps maximum real-world speed with external antenna options available.
AP-574 (External Antenna)
High-Performance Outdoor Wi-Fi 6 | Up to 2.69 Gbps
- Dual-radio 2x2/4x4 802.11ax
- 2.5 GbE uplink port
- External antenna connectors
AP-575
High-Performance Outdoor Wi-Fi 6 | Up to 2.69 Gbps
- Dual-radio 2x2/4x4 802.11ax
- 2.5 GbE uplink port
- Internal omni antennas
AP-577
High-Performance Outdoor Wi-Fi 6 | Up to 2.69 Gbps
- Dual-radio 2x2/4x4 802.11ax
- 2.5 GbE uplink port
- Internal directional antennas
AP-575EX
Hazardous Location Wi-Fi 6 | Up to 2.69 Gbps
- Dual-radio 2x2/4x4 802.11ax
- Class 1 Div 2 / ATEX Zone 2
- Hazardous location certified
AP-577EX
Hazardous Location Wi-Fi 6 | Up to 2.69 Gbps
- Dual-radio 2x2/4x4 802.11ax
- Class 1 Div 2 / ATEX Zone 2
- Hazardous location certified
580 Series - Ultimate Wi-Fi 6 Outdoor Performance
Ultimate Wi-Fi 6 performance with high power Bluetooth and Zigbee radios and 5 Gbps Ethernet for the most demanding outdoor locations.
AP-584
Ultimate Outdoor Wi-Fi 6 | 5 Gbps Ethernet
- Tri-radio 4x4/4x4/2x2 MIMO
- 5 GbE uplink port
- High-power IoT radios + GPS
AP-585
Ultimate Outdoor Wi-Fi 6 | 5 Gbps Ethernet
- Tri-radio 4x4/4x4/2x2 MIMO
- 5 GbE uplink port
- High-power IoT radios + GPS
AP-587
Ultimate Outdoor Wi-Fi 6 | 5 Gbps Ethernet
- Tri-radio 4x4/4x4/2x2 MIMO
- 5 GbE uplink port
- High-power IoT radios + GPS
AP-585EX
Hazardous Location Ultimate Wi-Fi 6
- Tri-radio 4x4/4x4/2x2 MIMO
- Class 1 Div 2 / ATEX Zone 2
- Hazardous location certified
AP-587EX
Hazardous Location Ultimate Wi-Fi 6
- Tri-radio 4x4/4x4/2x2 MIMO
- Class 1 Div 2 / ATEX Zone 2
- Hazardous location certified
670 Series - Wi-Fi 6E Outdoor Access Points
High-capacity outdoor APs with tri-radio capability and 6 GHz support. Delivers up to 3.9 Gbps aggregated throughput with hazard-location variants (670EX) designed for industrial outdoor venues.
AP-674 (External Antenna)
Outdoor Wi-Fi 6E | Up to 3.9 Gbps
- Tri-radio 2x2 802.11ax (2.4/5/6 GHz)
- 2.5 GbE + 1 GbE SFP port
- IoT radios + GPS receiver
AP-675
Outdoor Wi-Fi 6E | Up to 3.9 Gbps
- Tri-radio 2x2 802.11ax (2.4/5/6 GHz)
- 2.5 GbE + 1 GbE SFP port
- Internal omni antennas
AP-677
Outdoor Wi-Fi 6E | Up to 3.9 Gbps
- Tri-radio 2x2 802.11ax (2.4/5/6 GHz)
- 2.5 GbE + 1 GbE SFP port
- Internal directional antennas
AP-679
Outdoor Wi-Fi 6E | Up to 3.9 Gbps
- Tri-radio 2x2 802.11ax (2.4/5/6 GHz)
- 2.5 GbE + 1 GbE SFP port
- Internal directional antennas
AP-675EX
Hazardous Location Wi-Fi 6E | Up to 3.9 Gbps
- Tri-radio 2x2 802.11ax (2.4/5/6 GHz)
- Class 1 Div 2 / ATEX Zone 2
- Hazardous location certified
AP-677EX
Hazardous Location Wi-Fi 6E | Up to 3.9 Gbps
- Tri-radio 2x2 802.11ax (2.4/5/6 GHz)
- Class 1 Div 2 / ATEX Zone 2
- Hazardous location certified
AP-679EX
Hazardous Location Wi-Fi 6E | Up to 3.9 Gbps
- Tri-radio 2x2 802.11ax (2.4/5/6 GHz)
- Class 1 Div 2 / ATEX Zone 2
- Hazardous location certified
760 Series - Wi-Fi 7 Outdoor & Ruggedized Access Points
The newest outdoor Wi-Fi 7 APs built for maximum speed and rugged conditions. Based on Wi-Fi 7 (802.11be) standard for higher capacity and throughput outdoors with up to 5.8 Gbps aggregate performance.
AP-763
Industrial Indoor/Outdoor Wi-Fi 7 | Up to 5.8 Gbps
- Tri-radio 4x4 802.11be (Wi-Fi 7)
- 5 GbE uplink port
- IoT radios + GPS receiver
AP-764
Outdoor Rugged Wi-Fi 7 | Up to 5.8 Gbps
- Tri-radio 4x4 802.11be (Wi-Fi 7)
- IP66/67 ruggedized enclosure
- Connectorized antenna ports
AP-765
Outdoor Wi-Fi 7 | Up to 5.8 Gbps
- Tri-radio 4x4 802.11be (Wi-Fi 7)
- IP66/67 sealed enclosure
- IoT radios + GPS receiver
AP-765EX
Hazardous Location Wi-Fi 7 | Up to 5.8 Gbps
- Tri-radio 4x4 802.11be (Wi-Fi 7)
- Class 1 Div 2 / ATEX Zone 2
- Hazardous location certified
Compare Outdoor Access Point Series
Find the perfect outdoor AP for your deployment. Whether you need basic coverage or industrial-grade performance in hazardous locations, this comparison helps you choose the right model.
Aruba 560 Series
- Ideal For: Entry-level outdoor coverage, courtyards, small campuses
- Max Throughput: Up to 1.49 Gbps
- Ports: 1 GbE or PoE
- Key Strength: Affordable outdoor Wi-Fi 6 with IoT radios
Aruba 670 Series
- Ideal For: High-capacity outdoor, industrial venues, IoT deployments
- Max Throughput: Up to 3.9 Gbps
- Ports: 2.5 GbE + 1 GbE SFP
- Key Strength: 6 GHz band + GPS + IoT radios
Aruba 760 Series
- Ideal For: Outdoor/HazLoc, maximum performance & future-proof
- Max Throughput: Up to 5.8 Gbps
- Ports: 5 GbE Multi-Gig
- Key Strength: Wi-Fi 7 MLO + AI Central + GPS
Key Outdoor AP Capabilities
All Aruba outdoor access points include enterprise-grade features designed for reliability, security, and simplified management.
Multi-Gigabit Ethernet
Choose from 2.5 GbE, 5 GbE, or 10 GbE uplink options depending on your model. Ensures wired backhaul keeps pace with wireless throughput.
PoE Class 6 Power
Up to 60 W PoE input with intelligent fallback mode. Automatically reduces power when switch capacity is limited while maintaining connectivity.
AI-Powered Optimization
Zero-touch provisioning, cloud or on-prem management, AI-based insights for channel selection, client steering, and automated troubleshooting.
Built for IoT & Location
Integrated Bluetooth 5.4, Zigbee 802.15.4, and GPS/GNSS receivers enable asset tracking and sensor connectivity without additional hardware.
Built to Last in Extreme Conditions
Outdoor buyers worry about uptime, weather, and maintenance. Aruba outdoor APs are purpose-built to eliminate these concerns with sealed enclosures, hazard certifications, and intelligent monitoring.
IP66/67 Weatherproof
Guaranteed to survive rain, dust, humidity, and temperature extremes. Install and forget even in coastal or harsh environments.
Hazard-Rated Models
EX variants certified for Class 1 Div 2 / ATEX Zone 2 safe for oil & gas, manufacturing, and chemical plants.
Extended Temp Range
Typically -40C to +65C operation keeps networks online through extreme cold or heat.
Surge Protection
Integrated surge protection guards against lightning and electrical spikes no external modules needed.
Ready to Deploy Outdoor Wireless That Works?
Whether you're deploying across a warehouse zone, campus roofs, or industrial yards Aruba outdoor APs support zero-touch provisioning, cloud or on-prem management, and are backed by HPE's limited lifetime hardware warranty.
Complete Outdoor Antenna Solutions
Extend coverage and optimize signal strength with Aruba's comprehensive range of outdoor antennas designed for every outdoor deployment scenario.
Internal Antennas
Odd-numbered models (e.g., AP-565, AP-575, AP-675, AP-765)
Sealed, omni-directional coverage perfect for pole-mounted and ceiling deployments in outdoor spaces
External Antennas
Even-numbered models (e.g., AP-574, AP-674, AP-764)
Ideal for directional coverage, custom radiation patterns, or special outdoor mounting requirements
Frequently Asked Questions
Talk to an Outdoor Wireless Expert
Whether you're planning a campus deployment, industrial installation, or stadium Wi-Fi project, our team can help you select the right outdoor access points for your environment.
We'll help with:
- Selecting the right outdoor AP series for your environment
- Hazardous location certification requirements
- Antenna selection and coverage planning
- Integration with Aruba Central management
Expert guidance, no pressure.
