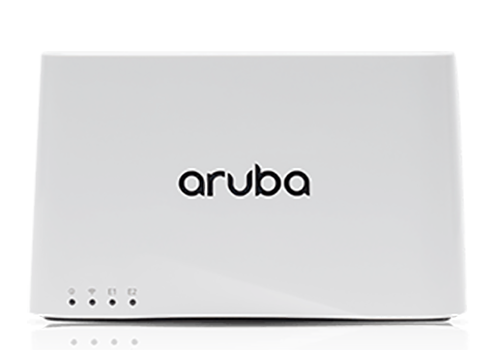

Aruba AP-203R Access Point
802.11ac access point for home and small branch offices

Aruba AP-203R Access Point

Aruba Networks Products

Aruba Wireless Access Point

Aruba AP-203R (US) Flex-radio 802.11ac 2x2 Unified Remote AP with Internal Antennas

#JY714A
List Price: ~~$364.00~~
Our Price: $264.51

Aruba AP-203R (US) FIPS/TAA Flex-radio 802.11ac 2x2 Unified Remote AP with Internal Antennas

#JY715A
List Price: ~~$488.00~~
Our Price: $352.67

Click here to jump to more pricing!

Overview:

The multifunctional Aruba 203R Remote AP delivers secure and fast 802.11ac wireless and wired network access to corporate resources for branch and home offices.

Unique in the industry, the compact Aruba 203R remote AP is software configurable to operate in either 1x1 dual radio mode, or 2x2 single radio mode. It supports up to 867Mbps in the 5GHz band or up to 400Mbps in the 2.4 GHz band when operating in single radio 2x2 mode. In dual radio 1x1 mode, the maximum data rates for the 203R AP are 433Mbps in the 5GHz band and 200Mbps in the 2.4GHz band.

The 203R AP offers a variety of enterprise-class features, including role-based network access, policy-based forwarding, and Adaptive Radio Management (ARM), which gives remote workers the same high-quality Wi-Fi experience they get at corporate headquarters. When additional capacity is desired, this low-cost 203R AP can be quickly added to an existing Aruba WLAN to improve network performance.

Managed by the Aruba Mobility Controller, the 203R AP supports centralized configuration, data encryption, policy enforcement and network services. It extends corporate resources to remote locations by establishing site-to-site VPN tunnels to the data center.

With an integrated Aruba Beacon, the 203R AP simplifies the remote management of a large scale network of battery- powered BLE Aruba Beacons and provides advanced location and indoor wayfinding, and proximity-based push notification capabilities.

For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, APs can configure themselves when powered up, slashing the cost and time to deploy wireless in remote branches and home offices.

CHOOSE YOUR DEPLOYMENT AND OPERATING MODES

Aruba APs offer a choice of deployment and operating modes to meet your unique management and deployment requirements:

The 203R AP is the unified AP that supports both controller-based and controllerless deployment modes, providing maximum flexibility
Controller-based mode – When deployed in conjunction with an Aruba Mobility Controller, Aruba APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding.
Controllerless (Instant) mode – The controller function is virtualized in a cluster of APs in Instant mode. As the network grows and/or requirements change, Instant deployments can easily migrate to controller- based mode.
Remote AP (RAP) mode for branch deployments
Air monitor (AM) for wireless IDS, rogue detection and containment
Secure enterprise mesh portal or point

Benefits:

Deploy with or without controller

The 203R can be deployed in either controller-based (ArubaOS) or controllerless (InstantOS) deployment mode.

New 802.11ac flexible radio architecture

The 203R AP is software configurable to operate in either 1x1 dual radio mode, or 2x2 single radio mode.
Supports up to 867Mbps in the 5GHz band (with 2SS/VHT80 clients) or up to 400Mbps in the 2.4 GHz band (with 2SS/VHT40 clients). In 1x1 dual radio mode, these max speeds are up to 433Mbps (5GHz) and 200Mbps (2.4GHz).

Built-in Bluetooth Low-Energy (BLE) radio

Delivers location-based services for BLE-enabled mobile devices.
Enables management of your deployment of battery- powered Aruba Beacons.

Advanced Cellular Coexistence (ACC)

Minimizes the impact from out-of-band interference from sources such as 3G/4G cellular networks.

RF Management

Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs
The 203R can be configured to provide part-time or dedicated air monitoring for wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available.

Security

Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances.
IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats.
Integrated Trusted Platform Module (TPM) for secure storage of credentials, certificates and keys.

Intelligent app visibility and control

AppRF technology leverages deep packet inspection to classify and block, prioritize or limit bandwidth for over 2,500 enterprise apps or groups of apps.

Quality of service for unified communication apps

Supports priority handling and policy enforcement for unified communication apps, including Microsoft Skype for Business with encrypted videoconferencing, voice, chat and desktop sharing.

Specifications:

AP-203R Specifications
203R ACCESS POINT SPECIFICATIONS Unified flexible radio 802.11ac remote AP with internal antennas Supports wall-box and desk mount deployments WI-FI RADIO SPECIFICATIONS AP type: Indoor, flexible radio: 5GHz 802.11ac 2x2 MIMO OR 2.4GHz 802.11n 2x2 MIMO, or 5GHz 802.11ac 1x1 AND 2.4GHz 802.11n 1x1 Software-configurable dual radio supports 5GHz (Radio 0) and 2.4GHz (Radio 1) 5GHz: Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate to individual 2x2 VHT80 client devices 2.4GHz: Two spatial stream Single User (SU) MIMO for up to 400Mbps wireless data rate to individual 2x2 VHT40 client devices (300Mbps for HT40 802.11n client devices) Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per AP Supported frequency bands (country-specific restrictions apply): 2.400 to 2.4835GHz 5.150 to 5.250GHz 5.250 to 5.350GHz 5.470 to 5.725GHz 5.725 to 5.850GHz Available channels: Dependent on configured regulatory domain Dynamic frequency selection (DFS) optimizes the use of available RF spectrum Supported radio technologies: 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) Supported modulation types: 802.11b: BPSK, QPSK, CCK 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM Transmit power: Configurable in increments of 0.5 dBm Maximum (conducted) transmit power (limited by local regulatory requirements): 2.4GHz band: +18 dBm per chain, +21 dBm aggregate (2x2) 5GHz band: +18 dBm per chain, +21 dBm aggregate (2x2) Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks Maximum ratio combining (MRC) for improved receiver performance Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance Short guard interval for 20MHz, 40MHz and 80MHz channels Space-time block coding (STBC) for increased range and improved reception Low-density parity check (LDPC) for high-efficiency error correction and increased throughput Transmit beam-forming (TxBF) for increased signal reliability and range Supported data rates (Mbps): 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15) 802.11n (5GHz): 6.5 to 450 (MCS0 to MCS23) 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) 802.11n high-throughput (HT) support: HT 20/40 802.11ac very high throughput (VHT) support: VHT 20/40/80 802.11n/ac packet aggregation: A-MPDU, A-MSDU OTHER INTERFACES Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back) Auto-sensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) Local: Two 10/100/1000BASE-T Ethernet (RJ-45, bottom) Auto-sensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE) One port (E2): PoE-PSE (output): 48 Vdc (nominal) 802.3af PoE (AP-203RP models) Bluetooth Low Energy (BLE) radio Up to 4dBm transmit power (class 2) and -93dBm receive sensitivity Integrated antenna with moderately directional pattern and peak gain of 1dBi USB 2.0 host interface (Type A connector, top) 3G/4G cellular modems Device battery charging port Capable of supplying up to 1A/5 watts of power to an attached device AC power interface, 2 prong IEC 60320-1 C8 receptacle (back) Visual indicators (LEDs): Power/system status Radio status Local network port status (2x) Includes PoE-PSE status (AP-203RP models) Reset/LED control button (“paperclip access”) Factory reset (when activated during device power up) LED control: toggle of/normal Serial console interface (custom, uUSB physical jack, bottom)	WI-FI ANTENNAS Two integrated dual-band omni-directional antennas for 2x2 MIMO with maximum individual antenna gain of 0.7dBi in 2.4GHz and 1.0dBi in 5GHz. Built-in antennas are optimized for vertical orientation of the AP. Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the effective per-antenna pattern is -0.4dBi in 2.4GHz and 0.5dBi in 5GHz. ENCRYPTED THROUGHPUT Maximum IPsec encrypted wired throughput: 20Mbps POWER SOURCES AND CONSUMPTION The AP supports direct AC power: 90V – 265V, 47Hz – 63Hz. Note that the unit does not include an AC power cord (IEC C7 plug). A compatible region-specific cord should be selected and added when ordering the AP. Maximum (worst-case) power consumption: 8.2W Excludes power consumed by external USB and/or PoE-PD device (and internal losses); this could add up to 5.7W for a 5W/1A USB device and up to 17.2W for a max load (15.4W) 802.3af PoE-PD device Maximum (worst-case) power consumption in idle mode: 5.0W. MOUNTING The AP supports desk mount without additional accessories. A cover ships with the AP to hide connectors, cables and product labels. The cover can be used to support wall mounted deployments as well. MECHANICAL Dimensions/weight (unit, including single-gang wall box mount plate): 155mm (W) x 50mm (D) x 95mm (H) 320g (AP-203R), 340g (AP-203RP) Dimensions/weight (shipping): 224mm (W) x 159mm (D) x 78mm (H) 510g (AP-203R), 590g (AP-203RP) ENVIRONMENTAL Operating Temperature: 0° C to +40° C (+32° F to +104° F) Humidity: 5% to 93% non-condensing Storage and transportation: Temperature: -40° C to +70° C (-40° F to +158° F) REGULATORY FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 EN 60601-1-1 and EN 60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative. RELIABILITY MTBF at +25C operating temperature: AP-203R: 539,000 hours (62 years) AP-203RP: 493,000 hours (56 years) REGULATORY MODEL NUMBER AP-203R-xx (all variants): APINR203 AP-203RP-xx (all variants): APINP203 CERTIFICATIONS CB Scheme Safety, cTUVus Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac WARRANTY Aruba limited lifetime warranty MINIMUM SOFTWARE VERSIONS ArubaOS™: 6.5.2.0/8.2.0.0 InstantOS™: 6.5.2.0/8.2.0.0

AP-203R Specifications

203R ACCESS POINT SPECIFICATIONS

Unified flexible radio 802.11ac remote AP with internal antennas
Supports wall-box and desk mount deployments

WI-FI RADIO SPECIFICATIONS

AP type: Indoor, flexible radio:
- 5GHz 802.11ac 2x2 MIMO OR 2.4GHz 802.11n 2x2 MIMO, or
- 5GHz 802.11ac 1x1 AND 2.4GHz 802.11n 1x1
Software-configurable dual radio supports 5GHz (Radio 0) and 2.4GHz (Radio 1)
5GHz: Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate to individual 2x2 VHT80 client devices
2.4GHz: Two spatial stream Single User (SU) MIMO for up to 400Mbps wireless data rate to individual 2x2 VHT40 client devices (300Mbps for HT40 802.11n client devices)
Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per AP
Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835GHz
- 5.150 to 5.250GHz
- 5.250 to 5.350GHz
- 5.470 to 5.725GHz
- 5.725 to 5.850GHz
Available channels: Dependent on configured regulatory domain
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Transmit power: Configurable in increments of 0.5 dBm
Maximum (conducted) transmit power (limited by local regulatory requirements):
- 2.4GHz band: +18 dBm per chain, +21 dBm aggregate (2x2)
- 5GHz band: +18 dBm per chain, +21 dBm aggregate (2x2)
- Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain
Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Short guard interval for 20MHz, 40MHz and 80MHz channels
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range
Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
- 802.11n (5GHz): 6.5 to 450 (MCS0 to MCS23)
- 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)
802.11n high-throughput (HT) support: HT 20/40
802.11ac very high throughput (VHT) support: VHT 20/40/80
802.11n/ac packet aggregation: A-MPDU, A-MSDU

OTHER INTERFACES

Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
Local: Two 10/100/1000BASE-T Ethernet (RJ-45, bottom)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
- One port (E2): PoE-PSE (output): 48 Vdc (nominal) 802.3af PoE (AP-203RP models)
Bluetooth Low Energy (BLE) radio
- Up to 4dBm transmit power (class 2) and -93dBm receive sensitivity
- Integrated antenna with moderately directional pattern and peak gain of 1dBi
USB 2.0 host interface (Type A connector, top)
- 3G/4G cellular modems
- Device battery charging port
- Capable of supplying up to 1A/5 watts of power to an attached device
AC power interface, 2 prong IEC 60320-1 C8 receptacle (back)
Visual indicators (LEDs):
- Power/system status
- Radio status
- Local network port status (2x)
Includes PoE-PSE status (AP-203RP models)
Reset/LED control button (“paperclip access”)
- Factory reset (when activated during device power up)
- LED control: toggle of/normal
Serial console interface (custom, uUSB physical jack, bottom)

WI-FI ANTENNAS

Two integrated dual-band omni-directional antennas for 2x2 MIMO with maximum individual antenna gain of 0.7dBi in 2.4GHz and 1.0dBi in 5GHz. Built-in antennas are optimized for vertical orientation of the AP.
- Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the effective per-antenna pattern is -0.4dBi in 2.4GHz and 0.5dBi in 5GHz.

ENCRYPTED THROUGHPUT

Maximum IPsec encrypted wired throughput: 20Mbps

POWER SOURCES AND CONSUMPTION

The AP supports direct AC power: 90V – 265V, 47Hz – 63Hz.
- Note that the unit does not include an AC power cord (IEC C7 plug). A compatible region-specific cord should be selected and added when ordering the AP.
Maximum (worst-case) power consumption: 8.2W
- Excludes power consumed by external USB and/or PoE-PD device (and internal losses); this could add up to 5.7W for a 5W/1A USB device and up to 17.2W for a max load (15.4W) 802.3af PoE-PD device
Maximum (worst-case) power consumption in idle mode: 5.0W.

MOUNTING

The AP supports desk mount without additional accessories. A cover ships with the AP to hide connectors, cables and product labels.
The cover can be used to support wall mounted deployments as well.

MECHANICAL

Dimensions/weight (unit, including single-gang wall box mount plate):
- 155mm (W) x 50mm (D) x 95mm (H)
- 320g (AP-203R), 340g (AP-203RP)
Dimensions/weight (shipping):
- 224mm (W) x 159mm (D) x 78mm (H)
- 510g (AP-203R), 590g (AP-203RP)

ENVIRONMENTAL

Operating
- Temperature: 0° C to +40° C (+32° F to +104° F)
- Humidity: 5% to 93% non-condensing
Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)

REGULATORY

FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 60950
EN 60601-1-1 and EN 60601-1-2

For more country-specific regulatory information and approvals, please see your Aruba representative.

RELIABILITY

MTBF at +25C operating temperature:
- AP-203R: 539,000 hours (62 years)
- AP-203RP: 493,000 hours (56 years)

REGULATORY MODEL NUMBER

AP-203R-xx (all variants): APINR203
AP-203RP-xx (all variants): APINP203

CERTIFICATIONS

CB Scheme Safety, cTUVus
Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac

WARRANTY

Aruba limited lifetime warranty

MINIMUM SOFTWARE VERSIONS

ArubaOS™: 6.5.2.0/8.2.0.0
InstantOS™: 6.5.2.0/8.2.0.0

Wireless Radio Specifications:

RF Performance Table
	Maximum transmit power (dBm) per transmit chain	Receiver sensitivity (dBm) per receive chain
802.11b 2.4GHz
1 Mbps	18.0	-95.0
11 Mbps	18.0	-87.0
802.11g 2.4GHz
6 Mbps	18.0	-92.0
54 Mbps	16.0	-75.0
802.11n HT20 2.4GHz
MCS0/8	18.0	-91.0
MCS7/15	14.0	-73.0
802.11n HT40 2.4GHz
MCS0/8	18.0	-89.0
MCS7/15	14.0	-70.0
802.11a 5GHz
6 Mbps	17.0	-91.0
54 Mbps	16.0	-74.0
802.11n HT20 5GHz
MCS0/8	17.0	-91.0
MCS7/15	14.0	-72.0
802.11n HT40 5GHz
MCS0/8	16.0	-89.0
MCS7/15	14.0	-70.0
802.11ac VHT20 5GHz
MCS0	16.0	-91.0
MCS9	13.0	-67.0
802.11ac VHT40 5GHz
MCS0	16.0	-89.0
MCS9	12.0	-63.0
802.11ac VHT80 5GHz
MCS0	16.0	-85.0
MCS9	12.0	-60.0

Maximum capability of the hardware provided (excluding antenna gain). Maximum transmit power is limited by local regulatory settings.

ANTENNA PATTERN PLOTS

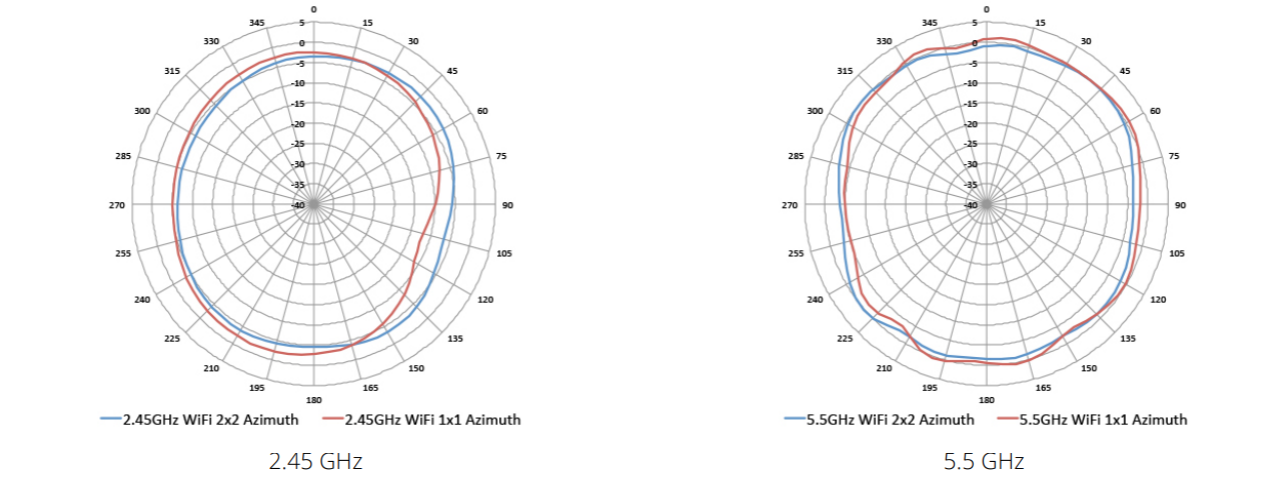

Horizontal or azimuth plane (looking at the top of the AP, front facing up)

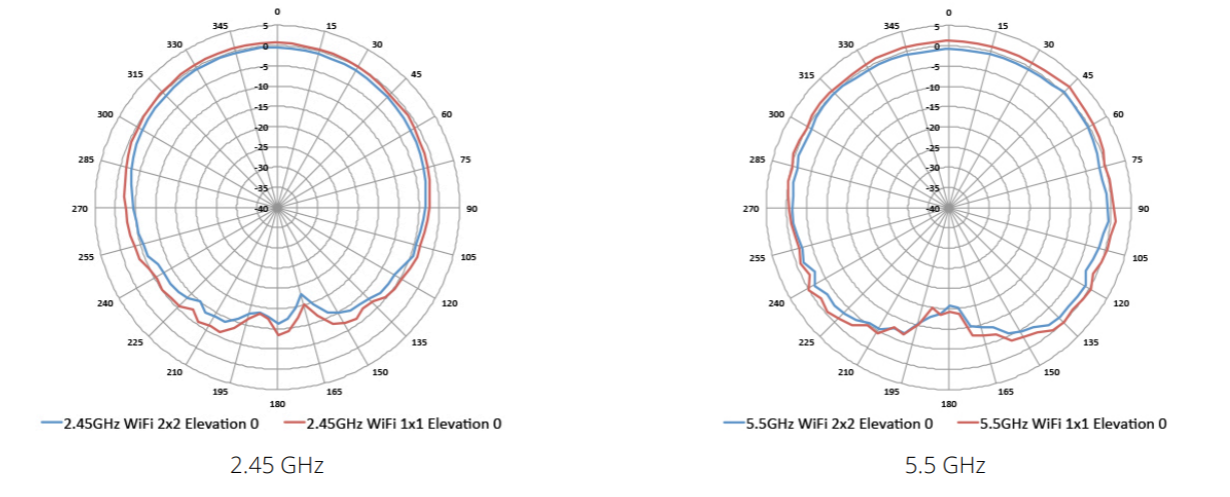

Elevation plane 0 (looking at the side of the AP, front facing to the right)

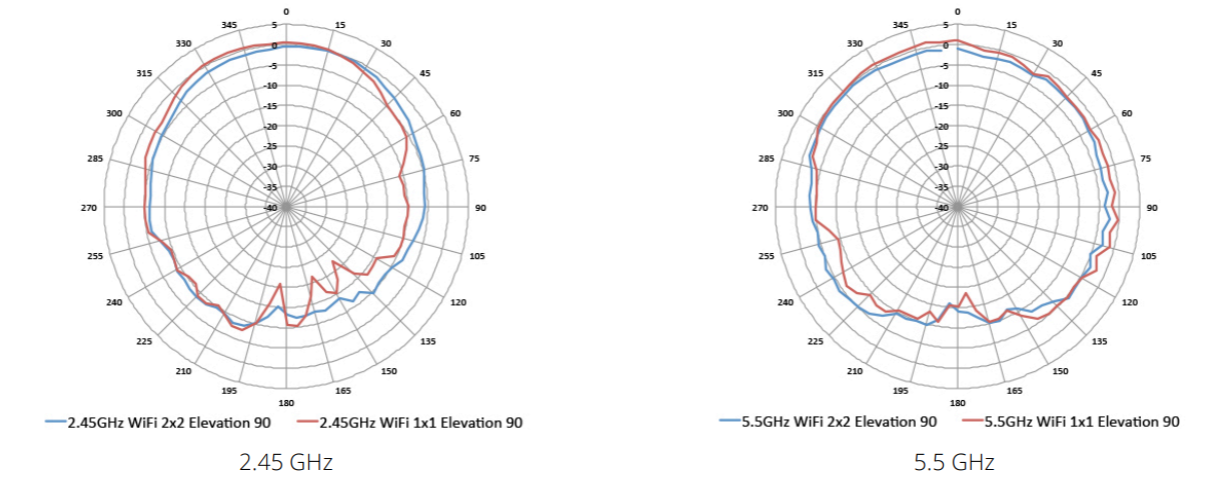

Elevation plane 90 (looking at the front of the AP)

Documentation:

Aruba AP-203R Series Access Points Datasheet (.PDF)
