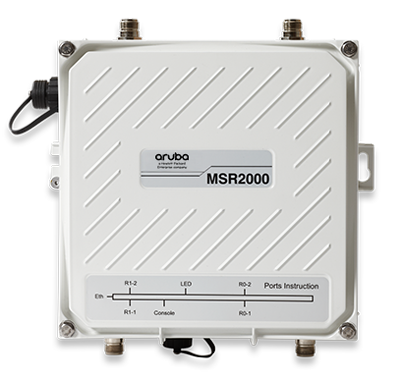

Aruba AirMesh MSR2000 Outdoor Wireless Mesh Router
Delivers High-Performance Wireless Mesh Routing

Aruba AirMesh MSR2000 Outdoor Wireless Mesh Router

Sorry, this product is no longer available, Supports available below. Please contact us for a replacement solution.

Overview:

The Aruba AirMesh MSR2000 delivers high-performance wireless mesh routing to outdoor environments where wired connectivity is impractical or unavailable.

Ruggedized and hardened to withstand extreme environmental conditions, the MSR2000 is ideal for deployment in metropolitan and industrial areas, oilfields, mines, and shipping ports.

A multi-radio, multi-frequency architecture and adaptive Layer 3 routing using the Aruba MeshOS operating system make the MSR2000 unique. Together, they provide unparalleled capacity, reliability, low latency and seamless handoffs for voice, HD-quality video and other real-time applications.

Features:

Flexible, High-capacity Architecture

The MSR2000 consists of two independent 802.11n radios for flexible outdoor wireless mesh deployments using the 2.4-GHz, 5-GHz and 4.9-GHz band.

Each radio may be configured to operate as a Wi-Fi access point (AP) or as a point-to-point, point-to-multipoint and full mesh backhaul. This dual-radio architecture separates client access and mesh backbone data while optimizing radio resources for both types of traffic to ensure high throughput and low latency.

Intelligent Wireless Mesh Routing

Integrated with Aruba MeshOS, Adaptive Wireless Routing (AWR) technology automatically optimizes traffic routes between wireless mesh routers and creates a truly adaptive mesh infrastructure.

With AWR, the mesh infrastructure adjusts dynamically to traffic levels and RF signal strength to ensure high availability and optimal performance across multiple network hops.

Aruba’s MobileMatrix, another key MeshOS Layer 3 technology, allows Wi-Fi clients to move between wireless mesh routers in less than 50 milliseconds, maintaining a seamless connection for latency-sensitive applications, such as video and voice.

HD-quality Video

For HD-quality video from mobile and fixed surveillance cameras, monitors and recording systems, the Active Video Transport (AVT) technology in MeshOS provides traffic management and load balancing across the mesh.

AVT uses deep packet inspection, MAC protocol optimization, in-network retransmission protocol and adaptive video jitter removal to deliver enhanced video at up to 30 frames per second.

Reduced Capital and Operating Costs

In addition to reducing capital and operating expenses by simplifying deployment, the MSR4000 eliminates the high cost of installing copper or fiber-optic cabling, as well as monthly fees for leased lines, digital subscriber line (DSL) and metro Ethernet services.

Specifications:

MSR2000 Specifications
Application Dual-radio outdoor wireless mesh router designed for high-performance, latency-sensitive applications Operating Mode Each radio may be configured to operate in the following modes: 802.11a/b/g/n access point for client access 802.11a/b/g/n mesh router for backhaul Radios Two multifunction radios capable of 2.4-GHz, 5-GHz or 4.9-GHZ operation Radios implement 2x2 MIMO with two spatial streams, providing up to 300 Mbps data rate per radio Dual receiver chain maximal ratio combining (MRC) for improved receiver performance Wireless Radio Specifications AP type: outdoor, two radio, dual band plus 4.9-GHz public safety band Supported frequency bands (country-specific restrictions apply): 2.4000 to 2.4835 GHz 4.900 to 5.100 GHz 5.150 to 5.250 GHz 5.250 to 5.350 GHz 5.470 to 5.725 GHz 5.725 to 5.850 GHz Available channels: Dependent on configured regulatory domain Maximum transmit power: 25 dBm (325 mW) limited by local regulatory requirements Supported radio technologies: Supported modulation types: Association Rates Power Power consumption: 15 watts Antennas Four N-type interfaces for external antenna support Feeder cable may be used for external antenna deployments Aruba Meshos Aruba MeshOS is a feature-rich operating system that is used across all MSR wireless mesh routers. Routing Features Adaptive Wireless Routing (AWR) Fast convergence and failover OSPF enables integration with existing routing topologies Networking NAT/PAT DHCP server, relay, client 4,000 VLANs Support for HTTP, HTTPS, SSH, Telnet, SMNP, NTP and ICMP Security End-to-end WPA/WPA2, TKIP (128 bit), PSK, AES (128 bit) Authentication: 802.1X (RADIUS), EAP methods MAC and IP address filtering Access Control List (ACL) Digital certificates Traffic Management Wi-Fi Multimedia (WMM), 802.11e IEEE 802.1p prioritization DSCP/DiffServ Bandwidth control RF Management Automatic channel selection RF interference detection and avoidance 16 BSSIDs Adaptive baud rate control	Mounting Mounting kit Mechanical Dimensions: 225 mm x 225 mm x 105 mm (8.9” x 8.9” x 4.1“), excluding connectors Weight (MSR2KP): 3.5 kg (7.7 lb) Weight (MSR2KAC): 4.25 kg (9.4 lb) Environmental Operating: Storage and transportation temperature range: -30º C to 70º C (-22º F to 158º F) Weather rating: IP66 Wind survivability: Up to 165 mph Shock and vibration: ETSI 300-19-2-4 spec T41.E class 4M3 Transportation: ISTA 2A Regulatory Regulatory Model Numbers MSR2000 PoE Powered: MSR2K23N0 MSR2000 AC Powered: MSR2K23N1 Safety EMC RF Certification FCC IC CE CB cTUVus RoHS SRRC (China) Certifications Wi-Fi certified: 802.11a/b/g/n Advanced Features Virtual Private LAN over Mesh (VPLN) provides native Layer 2 over Layer 3 interface to external networks Active Video Transport (AVT) technology performs deep packet inspection, adaptive jitter removal and corrects transmission packet loss MobileMatrix technology allows users to roam between mesh routers while maintaining their application sessions Interfaces One 10/100/1000BASE-T Ethernet interfaces (RJ45) 802.3af PoE (MSR2KAC) USB console interface Four N-type antenna connectors Warranty 1 year parts/labor

MSR2000 Specifications

Application

Dual-radio outdoor wireless mesh router designed for high-performance, latency-sensitive applications

Operating Mode

Each radio may be configured to operate in the following modes:
- 802.11a/b/g/n access point for client access
- 802.11a/b/g/n mesh router for backhaul

Radios

Two multifunction radios capable of 2.4-GHz, 5-GHz or 4.9-GHZ operation
Radios implement 2x2 MIMO with two spatial streams, providing up to 300 Mbps data rate per radio
Dual receiver chain maximal ratio combining (MRC) for improved receiver performance

Wireless Radio Specifications

AP type: outdoor, two radio, dual band plus 4.9-GHz public safety band
Supported frequency bands (country-specific restrictions apply):
- 2.4000 to 2.4835 GHz
- 4.900 to 5.100 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
Available channels: Dependent on configured regulatory domain
Maximum transmit power: 25 dBm (325 mW) limited by local regulatory requirements
Supported radio technologies:
Supported modulation types:
Association Rates

Power

Power consumption: 15 watts

Antennas

Four N-type interfaces for external antenna support
Feeder cable may be used for external antenna deployments

Aruba Meshos

Aruba MeshOS is a feature-rich operating system that is used across all MSR wireless mesh routers.
Routing Features
- Adaptive Wireless Routing (AWR)
- Fast convergence and failover
- OSPF enables integration with existing routing topologies
Networking
- NAT/PAT
- DHCP server, relay, client
- 4,000 VLANs
- Support for HTTP, HTTPS, SSH, Telnet, SMNP, NTP and ICMP
Security
- End-to-end WPA/WPA2, TKIP (128 bit), PSK, AES (128 bit)
- Authentication: 802.1X (RADIUS), EAP methods
- MAC and IP address filtering
- Access Control List (ACL)
- Digital certificates
Traffic Management
- Wi-Fi Multimedia (WMM), 802.11e
- IEEE 802.1p prioritization
- DSCP/DiffServ
- Bandwidth control
RF Management
- Automatic channel selection
- RF interference detection and avoidance
- 16 BSSIDs
- Adaptive baud rate control

Mounting

Mounting kit

Mechanical

Dimensions: 225 mm x 225 mm x 105 mm (8.9” x 8.9” x 4.1“), excluding connectors
Weight (MSR2KP): 3.5 kg (7.7 lb)
Weight (MSR2KAC): 4.25 kg (9.4 lb)

Environmental

Operating:
Storage and transportation temperature range: -30º C to 70º C (-22º F to 158º F)
Weather rating: IP66
Wind survivability: Up to 165 mph
Shock and vibration: ETSI 300-19-2-4 spec T41.E class 4M3
Transportation: ISTA 2A

Regulatory

Regulatory Model Numbers
- MSR2000 PoE Powered: MSR2K23N0
- MSR2000 AC Powered: MSR2K23N1
Safety
EMC
RF
Certification
- FCC
- IC
- CE
- CB
- cTUVus
- RoHS
- SRRC (China)

Certifications

Wi-Fi certified: 802.11a/b/g/n

Advanced Features

Virtual Private LAN over Mesh (VPLN) provides native Layer 2 over Layer 3 interface to external networks
Active Video Transport (AVT) technology performs deep packet inspection, adaptive jitter removal and corrects transmission packet loss
MobileMatrix technology allows users to roam between mesh routers while maintaining their application sessions

Interfaces

One 10/100/1000BASE-T Ethernet interfaces (RJ45)
802.3af PoE (MSR2KAC)
USB console interface
Four N-type antenna connectors

Warranty

1 year parts/labor

Wireless Radio Specifications:

RF Performance Table
	Maximum TX power per active TX chain (dBm)	RX sensitivity (dBm)	Maximum TX power per active TX chain (dBm)	RX sensitivity (dBm)
802.11b	2.4 GHz		5 GHz
1 Mbps	20	-96	–	–
2 Mbps	20	-96	–	–
5.5 Mbps	20	-94	–	–
11 Mbps	20	-93	–	–
802.11a/g	2.4 GHz		5 GHz
6 Mbps	20	-96	22	-97
9 Mbps	20	-96	22	-96
12 Mbps	20	-96	22	-96
18 Mbps	20	-95	22	-94
24 Mbps	19	-92	22	-88
36 Mbps	18	-89	20	-86
48 Mbps	17	-85	19	-82
54 Mbps	17	-83	18	-80
802.11n HT20	2.4 GHz		5 GHz
MCS0	22	-94	21	-97
MCS1	22	-93	20	-94
MCS2	22	-92	19	-91
MCS3	22	-89	18	-87
MCS4	21	-85	17	-86
MCS5	20	-81	16	-81
MCS6	19	-80	15	-79
MCS7	18	-78	15	-77
MCS8	22	-94	21	-97
MCS9	22	-93	20	-94
MCS10	22	-92	19	-91
MCS11	22	-89	18	-87
MCS12	21	-85	17	-86
MCS13	20	-81	16	-81
MCS14	19	-80	15	-79
MCS15	18	-78	15	-77
802.11n HT40	2.4 GHz		5 GHz
MCS0	21	-92	19	-92
MCS1	21	-91	19	-90
MCS2	21	-89	18	-88
MCS3	20	-86	17	-85
MCS4	19	-83	16	-83
MCS5	18	-79	15	-79
MCS6	18	-77	14	-77
MCS7	17	-75	14	-73
MCS8	21	-92	19	-92
MCS9	21	-91	19	-90
MCS10	21	-89	18	-88
MCS11	20	-86	17	-85
MCS12	19	-83	16	-83
MCS13	18	-79	15	-79
MCS14	18	-77	14	-77
MCS15	17	-75	14	-73

Maximum capability of the hardware provided. Maximum transmit power will be limited by local regulatory settings.

Aruba Mesh Router Comparison:

	MSR4000	MSR2000	MST200
Form Factor
Applications
Description	The MSR4000 is a high performance 802.11N enabled mesh router delivering performance similar to wireline at up to 300 Mbps per radio. The MSR4000 features four 2x2 MIMO dualband 2.4/5 GHz radios. The MSR4000 is built to provide years of trouble-free operation in a variety of applications. The MSR4000 leverages Aruba's Adaptive Wireless Routing (AWR) technology, which automatically optimizes traffic routes between multiple wireless mesh routers.	The MSR2000 is a high performance 802.11N enabled mesh router delivering performance similar to wireline at up to 300 Mbps per radios. The MSR2000 features two 2x2 MIMO dualband 2.4/5 GHz radios. The MSR2000 is built to provide years of trouble-free operation in a variety of applications. The MSR2000 leverages Aruba's Adaptive Wireless Routing (AWR) technology, which automatically optimizes traffic routes between multiple wireless mesh routers.	The MST200 is a high performance 802.11N enabled mesh router delivering performance similar to wireline at up to 300 Mbps per radio. The MST200 features a single 5-GHz 2x2 MIMO radio with a built in antenna. The MST200 is built to provide years of trouble-free operation in a variety of applications. The MST200 leverages Aruba's Adaptive Wireless Routing (AWR) technology, which automatically optimizes traffic routes between multiple wireless mesh routers.
WiFi Access	Yes	Yes	Yes
Mesh	Yes	Yes	No
Point-to-Point	Yes	Yes	Yes
Point-to-Multipoint	Yes	Yes	Yes
Portal	Yes	Yes	Yes
Number of Radios	Quad Radio	Dual Radio	Single Radio
Operating Frequencies	2.4, 5, 4.9GHz	2.4, 5, 4.9GHz	5 GHz
DFS Support	Yes (EU and Japan)	Yes (EU and Japan)	Yes (EU and Japan)
RF Management	RF interference detection and avoidance
Antennas	Eight N-type female arranged in four pairs to support 802.11N 2x2 MIMO operation	Four N-type female arranged in two pairs to support 802.11N 2x2 MIMO operation	Integrated directional antenna providing 802.11N 2x2 MIMO operation over a 60° sector
Network Interfaces	1x100/1000BASE-T Ethernet (RJ-45), Auto-sensing link speed and MDI/MDX	1x100/1000BASE-T Ethernet (RJ-45), Auto-sensing link speed and MDI/MDX	1x100/1000BASE-T Ethernet (RJ-45), Auto-sensing link speed and MDI/MDX
Other Interfaces	USB console interface	USB console interface	USB console interface
Power over Ethernet (PoE)	48 Volt, 4 Pair 803.3at (60W)	48 Volt, standard 803.3at	48 Volt, standard 803.3af
AP Power Interface	100~240 VAC 50/60 Hz	100~240 VAC 50/60 Hz	100~240 VAC 50/60 Hz
DC Power Interface	Not Supported	12-48 volt DC from external DC power source	Not Supported
Power Consumption	36 watts (maximum)	15 watts (maximum)	12.5 watts (maximum)
Operating Temperature	-40° C to +55° C (-40° F to +131° F) AC -30° C to +60° C (-22° F to +140° F) PoE	-40° C to +55° C (-40° F to +131° F) AC/DC -30° C to +60°C (-22° F to +140° F) PoE	-40 to +55°C (-40 to +131°F) AC -30° C to +60°C (-22° F to +140° F) PoE
Product Warranty	1 year parts and labor

Documentation:

Aruba AirMesh MSR2000 Outdoor Wireless Mesh Router Data Sheet (.PDF)
