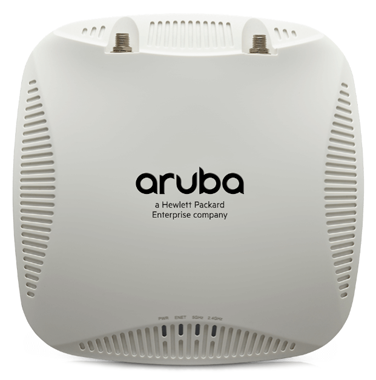

Aruba AP-204 Access Point
Bringing 802.11ac to the masses
Sorry, this product is no longer available, please contact us for a replacement.
Supports and Renewals are still available below
Multifunctional and affordable Aruba 200 series 802.11ac wireless APs maximize mobile device performance in medium-density enterprise Wi-Fi environments.
These compact and cost-effective dual-radio APs deliver wireless data rates of up to 867 Mbps to 5-GHz devices with 802.11ac technology leveraging two spatial MIMO streams while simultaneously supporting 2.4-GHz 802.11n clients with data rates of up to 300 Mbps.
The AP-205 and IAP-205 models feature four integrated omni-directional downtilt antennas, while the AP-204 and IAP-204 support external detachable dual-band antennas using two RP-SMA antenna connectors.
Get a big performance advantage
Patented ClientMatch technology improves performance and eliminates sticky client behavior while roaming.
Protect service quality over the air
AppRF technology enables prioritization and policy enforcement for business-critical enterprise apps like Microsoft Lync.
You have the freedom to choose
The 200 series can be managed by an Aruba Mobility Controller or deployed in controllerless Aruba Instant mode.
Choose your operating mode
The 200 series APs offer a choice of operating modes to meet your unique management and deployment requirements.
- Controller-managed AP or Remote AP (RAP) running ArubaOS.
When managed by Aruba Mobility Controllers, 200 series APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding. Please refer to the Aruba Mobility Controller data sheets for more details.
- Aruba Instant AP running InstantOS.
In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up on Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes.
For large installations across multiple sites, the Aruba Activate ser vice significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, Instant APs are factory-shipped to any site and configure themselves when powered up.
If WLAN requirements change, a built-in migration path allows 200 series Instant APs to become part of a WLAN that is managed by a Mobility Controller.
Wi-Fi client optimization
- To eliminate sticky client behavior while users roam, 200 series APs feature patented ClientMatch technology, which continuously gathers session performance metrics from mobile devices.
- If a mobile device moves away from an AP or if RF interference impedes performance, ClientMatch automatically steers the device to a better AP.
Advanced Cellular Coexistence (ACC)
- ACC lets WLANs perform at peak efficiency by minimizing interference from 3G/4G LTE networks, distributed antenna systems and commercial small cell/femtocell equipment.
Quality of service for unified communication apps
- The 200 series APs support priority handling and policy enforcement for unified communication apps, including Microsoft Lync with encrypted videoconferencing, voice, chat and desktop sharing.
- Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs.
- The 200 Series APs can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available.
- Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4-GHz and 5-GHz radio bands to identify sources of RF interference.
- With an OpenDNS service subscription, Aruba Instant RAPs deliver integrated web filtering, malware and botnet protection to every device connected to the WLAN.
- Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys
- SecureJack-capable for secure tunneling of wired Ethernet traffic.
|AP-204 and AP-205 Specifications|
AP-200 Series Specifications
Wireless Radio Specifications
Regulatory Model Number
Minimum Software Versions
Wireless Radio Specifications:
|RF Performance Table|
|Maximum transmit power (dBm) per transmit chain||Receiver sensitivity (dBm) per receive chain|
|2.4 GHz - 802.11b|
|2.4 GHz - 802.11g|
|2.4 GHz - 802.11n HT20|
|2.4 GHz - 802.11n HT40|
|5 GHz - 802.11a|
|5 GHz - 802.11n HT20|
|5 GHz - 802.11n HT40|
|5 GHz - 802.11ac VHT20|
|5 GHz - 802.11ac VHT40|
|5 GHz - 802.11ac VHT80|
Maximum capability of the hardware provided. Maximum transmit power is limited by local regulatory settings.
Antenna Pattern Plots:

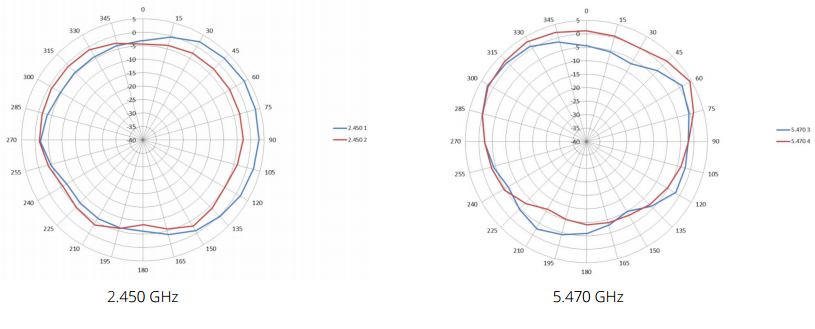

Horizontal or azimuth plane (top view), 0 degrees downtilt

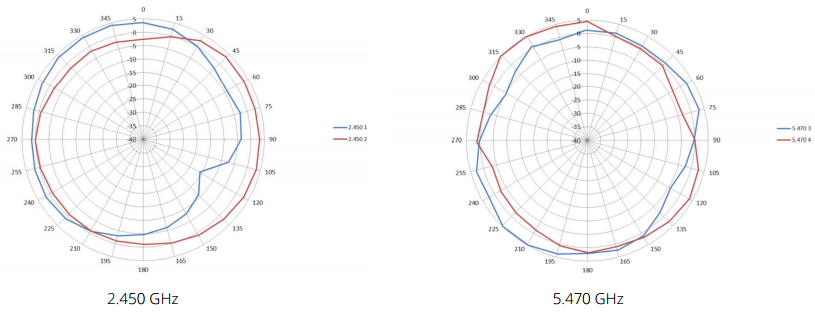

Horizontal or azimuth plane (top view), 30 degrees downtilt

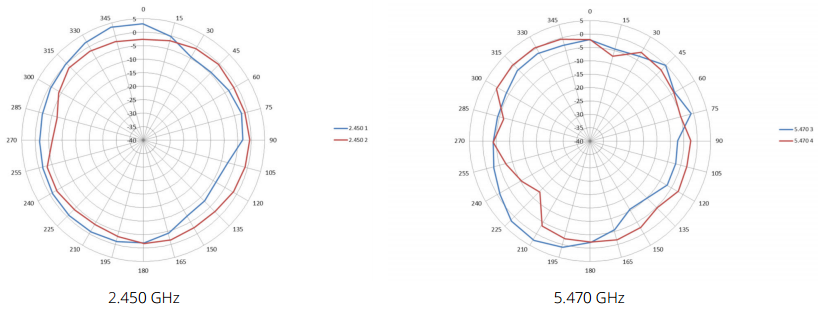

Elevation plane (side view, 0 degrees angle)

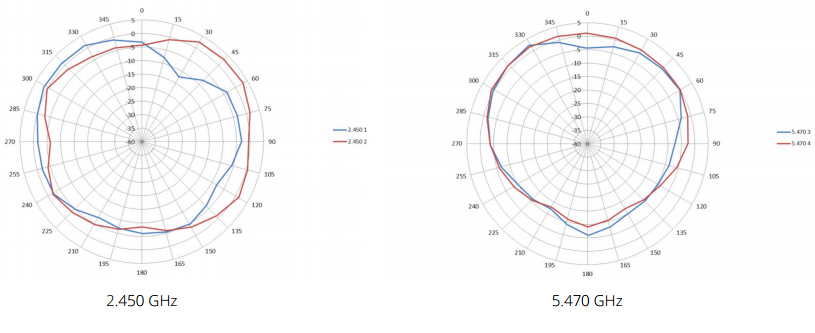

Elevation plane (side view, 90 degrees angle)
Aruba AP-200 Series Access Points Datasheet (.PDF)
