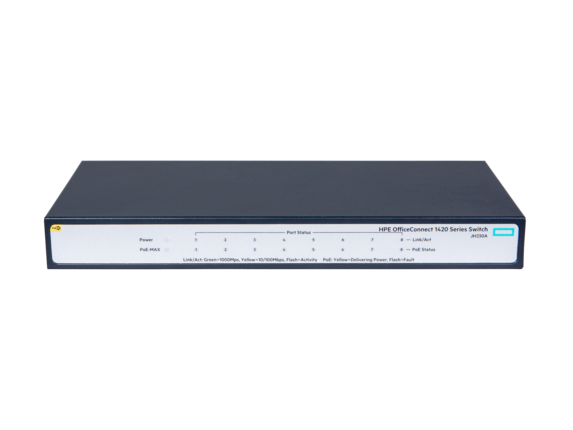

HPE OfficeConnect 1420-8G PoE+ (64W) Switch #JH330A
Unmanaged plug-and-play Gigabit Ethernet switching

HPE OfficeConnect 1420-8G PoE+ (64W) Switch #JH330A

HPE OfficeConnect Switches
HPE OfficeConnect 1420 Switch Series
USA: FREE Ground ShippingHPE OfficeConnect 1420-24G-2SFP+ 10G Uplink Switch
#JH330A
List Price: $230.00
Our Price: $184.00

More pricing below, click here!

Overview:

Key features

  • Unmanaged plug-and-play Gigabit Ethernet switching
  • Green features for low power consumption
  • Fanless design for silent operation
  • Quality of Service capabilities for improved network efficiency
  • Limited Lifetime Warranty

Product overview

The HPE OfficeConnect 1420 Switch Series consists of unmanaged Gigabit Ethernet switches, for small businesses and others looking for plug-and-play basic Layer 2 connectivity for their network, including low-cost PoE+ and 10-Gigabit uplink models.

The 1420 Switch Series includes nine Gigabit switches. All have 10/100/1000 ports for affordable Gigabit connections using copper Category 5 cabling. There is a model with 16 RJ-45 ports. There is a 24-port model with two SFP Gigabit ports, ideal where long distances require fiber-based connections. Another 24-port model supports IEEE 802.3at PoE+ on 12 of its ports, able to forward up to 30 W power on these ports to power access points, IP phones, IP cameras, and other PoE-enabled devices. For cost-effective high-speed fiber-based server connections, there is a 24-port 10/100/1000 switch with two SFP+ 10-Gigabit ports. Lastly, there is a model simply with a 24-port 10/100/1000 layout.

HPE OfficeConnect 1420 switches have Quality of Service (QoS) support and IEEE 802.3x flow control features that improve network efficiency.

Simplified plug-and-play convenience is supported by features such as auto-MDIX and auto-speed negotiation. Hewlett Packard Enterprise has innovated and combined the latest advances in silicon technology to bring you some of the most power-efficient switches. All models support the Energy Efficient Ethernet IEEE 802.3az standard, as well as auto power-down mode on idle ports and power saving on short-distance cables. With their fanless silent operation, these switches are ideal for office deployment. HPE OfficeConnect 1420 switches come with a Limited Lifetime Warranty covering the unit and power supplies.

Features & Benefits:

Ease of use
  • Unmanaged
    Provides plug-and-play simplicity
  • Auto-speed negotiation
    Selects individual port speed automatically, depending on client capabilities; removing the need for manual intervention enables simple plug-and-play operation
  • Comprehensive LED display with per-port indicators
    Provides an at-a-glance view of the status, activity, speed, and full-duplex operation of the switches
  • Flow control
    Helps ensure reliable communications during full-duplex operation
  • HPE/IEEE Auto-MDIX
    Automatically adjusts for straight-through or crossover cables on all RJ-45 ports
Connectivity
  • Gigabit Ethernet 10/100/1000 connectivity—high speed Ethernet connections over highly affordable copper Category 5 cabling
  • 10-Gigabit fiber connectivity
    Future-proof 10-Gigabit technology allows high-speed fiber connection to servers or other switches with connection flexibility using optional SFP+ transceivers (Model: JH330A)
  • IEEE 802.3at Power over Ethernet (PoE+)
    Provides up to 30 W per port, which allows support of the latest PoE+ capable devices such as IP phones, wireless Access Points, and security cameras, as well as any IEEE 802.3af compliant end device; reduces the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments (Models: JH019A, JH330A, JH330A)
Performance
  • Energy Efficient Ethernet support
    Supports new IEEE 802.3az standard; and allows lower power consumption, when operated with IEEE-compliant client devices
  • Half-/full-duplex auto-negotiating capability on every port doubles the throughput of every port
  • Jumbo frame support
    Allows frames up to 9,216 bytes to be switched through the network
Flexibility
  • Fanless design
    Enables quiet operation for deployment in open spaces
  • Internal power supply
    Delivers operational convenience and an environment suitable for business operations
Quality of Service (QoS)
  • IEEE 802.1p prioritization
    Delivers data to devices, based on the priority and type of traffic
  • DiffServ Code Point (DSCP) support
    Allows real-time traffic prioritization, based on Layer 3 TOS/DSCP parameters
Warranty and suppor
  • Limited Lifetime Warranty

This series comes with a Limited Lifetime Warranty providing advance hardware replacement with next business day shipment in most countries, 24x7 phone support available for the first 90 days, and electronic and business hours phone support for the entire warranty period.

See hpe.com/networking/warrantysummary for full warranty and support information included with your product purchase.

Specifications:


PoE Capability 64 W PoE+
Product Dimensions (metric) 23.47 x 10.49 x 2.69 cm
Power Consumption 80 W (maximum)
Product Differentiator (long) Our most economical Gigabit PoE+ 8-port switch. This model has 8x 10/100/1000 rear-facing ports with its LED display on the front. All eight ports support PoE+ with a total switch PoE power budget of 64W. It is a desktop configuration with an external universal power adapter.
Routing/switching Capacity 16 Gbps
Memory and Processor Packet buffer size: 1.5 Mb
Weight (metric) 0.7 kg
Throughput up to 11.8 Mpps
Input Voltage 100 - 240 VAC, rated

Documentation:

Download the HPE OfficeConnect 1420 Switch Series Datasheet (PDF).
