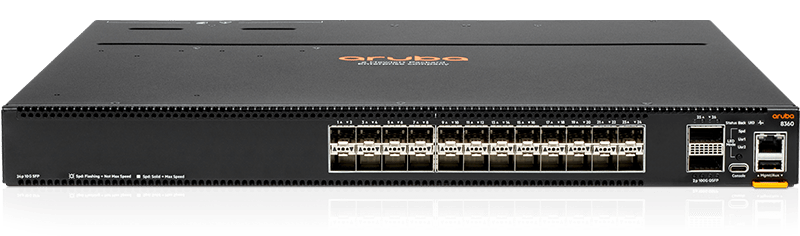

Aruba 8360-24XF2C Port-to-Power 3 Fans, 2 Power Supplies [JL710A]
High-performance enterprise campus and data center switch

Aruba CX8360 series

Looking for a better price? Call our Sales team today - 844-356-5141 or click here to request a quote.

Aruba Networks Products
Aruba Wireless Switches
USA: FREE Ground ShippingAruba 8360-24XF2C Port-to-Power 3 Fans, 2 Power Supplies [JL710A]
Ethernet Switch, Manageable, TAA Compliant, 3 Layer Supported, Modular, 375 W Power Consumption, Optical Fiber, 1U High, Rack-mountable, Surface Mount, Lifetime Limited Warranty
#JL710A
List Price: $18,995.00
Add to Cart for Our Price

Click here to jump to more pricing!

Overview:

The Aruba CX 8360 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 2.4Tbps of capacity, with line-rate Gigabit Ethernet interfaces including 1Gbps, 10Gbps, 25Gbps, 40Gbps, and 100Gbps

The 8360 series includes industry-leading line rate ports with 1/10/25GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/ QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 100GbE ports.

In addition, the 32 x 25G port 8360 models support lowdensity MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains.

Key Features

  • High-performance 2.4Tbps and 1,145 Mpps
  • Intelligent monitoring and visibility with Aruba Network Analytics Engine
  •  High availability with industry-leading VSX redundancy, and redundant power supplies and fans
  • Designed for core/aggregation in the campus or Top of Rack or End of Row in the data center
  • MACsec secured connectivity over untrusted domains
  • AOS-CX automation and programmability using builtin REST APIs and Python scripts
  • Advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, and IPv6
  • Compact 1U switch with 1/10/25GbE and 40/100GbE connectivity

Benefits:

The Aruba CX 8360 offers a flexible and innovative approach to addressing the application, security, and scalability demands of emerging end-to-end, enterprise edge-cloud network connectivity requirements.

Simplify your IT operations

Offering a combination of cutting-edge hardware, a cloud-native operating system, and intuitive software-defined orchestration tools, the CX 8360 helps to simplify operations, improve IT efficiency, and enable always-on network availability.

Accelerate IT provisioning

Aruba Fabric Composer, a smart, software-defined orchestration solution, simplifies operations, increases network speed, and enhances overall infrastructure provisioning.


Unique high availability

The ability of ArubaOS-CX to maintain a synchronous state across dual control planes allows a unique high- availability solution called Aruba Virtual Switching Extension (VSX). VSX is delivered through redundancy gained by deploying two chassis with an inter-switch link, with each chassis maintaining its independent control.

Increased visibility and control

Aruba AIOps offers real-time, network-wide visibility with analytics in every switch. Aruba’s next-generation AI uniquely combines network and user-centric analytics to not only identify and inform staff of anomalies, but also apply decades of networking expertise to analyze and provide prescriptive actions with greater than 95% accuracy.

Features:

This intelligent, high-performance switch is designed for both enterprise campus cores and data centers needing top-of-rack server connectivity and scale-out, rack-rack, spine, and leaf fabric topology aggregation.

High performance

Provides up to 2.4Tbps for bidirectional switching and 1,145Mpps for forwarding to meet the demands of bandwidth-intensive applications today and in the future.

Aruba Virtual Switching Extension (VSX

Offering high availability, fast wire-speed, a compact 1U switch delivers 1/10/25GbE and 40/100GbE connectivity even during live upgrades.


Secure communications

MACsec secured connectivity over untrusted domains.

Core Layer Switching options

Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6.

Product Differentiators:

  • Modular Architecture with native cloud-native ArubaOS-CX
  • Aruba Network Analytics Engine
  • Aruba Virtual Switching Extension
  • Performance
  • Connectivity
  • Quality of Service (QoS) features
  • High availability and resiliency
  • Management
  • Layer 2 Switching
  • Layer 3 Services
  • Layer 3 Routing
  • Multicast

Specifications:


CX8360 Series Specifications

Aruba 8360-12C Port-to-Power 3 Fans, 2 Power Supplies [JL708A]

Aruba 8360-12C Power-to-Port 3 Fans, 2 Power Supplies [JL709A]

Aruba 8360-24XF2C Port-to-Power 3 Fans, 2 Power Supplies [JL710A]

Aruba 8360-24XF2C Power-to-Port 3 Fans, 2 Power Supplies [JL711A]

I/O ports and slots

12 ports of 40GbE/100GbE (QSFP+/QSFP28)

(optional 4x10G/25G breakout cables supported)

24 ports of 1GbE/10GbE (SFP/SFP+)

2 ports of 40GbE/100GbE (QSFP+/QSFP28)

(optional 1GBASE-T SFP and 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported)

Additional ports and slots

Power Supplies

2 field-replaceable and hot-swappable power supplies

Fans

3 field-replaceable and hot-swappable fans2

Management

RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A

Physical characteristics

Physical Dimensions (HxWxD)

1.73in x 17.4in x 16.0in

44.0mm x 442.5mm x 406.4

Full configuration weight

17.65 lb
8.01 kg

17.8 lb (estim.) 8.07 kg (estim.)

Memory and Processor

CPU

1.8 GHz 4-core 64-bit

Memory, Drive and Flash

16GB RAM, 32GB Flash/Storage

Packet Buffer

32MB

Performance

Switching Capacity

2.4Tbps

880Gbps

MAC Address Table Size

212,992

IPv4 Host Table

145,780

IPv6 Host Table

145,780

IPv4 Unicast Routes

606,977

IPv6 Unicast Routes

630,784

Maximum Number of Access Control List (ACL) Entries Ingress

IPv4 65,536, IPv6 16,384, MAC 65,536

Maximum Number of Access Control List (ACL) Entries Egress

IPv4 8,192, IPv6 2,048, MAC 8,192

Maximum VLANs

4,094

IGMP Groups

7,000

MLD Groups

7,000

IPv4 Multicast Routes

7,000

IPv6 Multicast Routes

7,000

Environment

Operating Temperature3

32°F to 113°F (0°C to 45°C) up to 5000 ft

32°F to 104°F (0°C to 40°C) up to 5000 ft

32°F to 113°F (0°C to 45°C) up to 5000 ft

32°F to 104°F (0°C to 40°C) up to 5000 ft

Operating Relative Humidity

15% to 95% relative humidity at 113°F (45°C), non-condensing

15% to 95% relative humidity at 104°F (40°C), non-condensing

15% to 95% relative humidity at 113°F (45°C), non-condensing

15% to 95% relative humidity at 104°F (40°C), non-condensing

Non-Operating Temperature

-40°C to 70°C (-40°F to 158°F) up to 4.6km (15,000 ft.)

Non-Operating/Storage Relative Humidity

15% to 95% at 149°F (65°C) non-condensing

Maximum Operating Altitude

Up to 10,000ft (3.048Km)

Maximum Non-Operating Altitude

Up to 15,000ft (4.6Km)

Primary Airflow

Port-to-Power (PrtToPwr) Power-to-Port (PwrToPrt) Port-to-Power (PrtToPwr) Power-to-Port (PwrToPrt)

BTU/hr

1,280

1,280

1,280

1,280

Acoustics

WAd= 6.3 Bel

LpAm(Bystander) = 46.6 dB

WAd= 6.2 Bel

LpAm(Bystander) = 45.3 dB

WAd= 6.0 Bel

LpAm(Bystander) = 42.6 dB

WAd= 6.2 Bel

LpAm(Bystander) = 44.4 dB

Electrical Characteristics

Frequency

47-63 Hz

AC Voltage

Current

7.1A for 100-127VAC

3.4A for 200-240VAC

Power Consumption

Max: 375W

Idle: 120W

Max: 375W

Idle: 110W

Regulatory

Compliance

Products comply with CE Markings according to directives 2014/30/EU (EMC) and 2014/35/EU (Safety)

RoHS

EN 50581:2012

Safety

EU

• EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

• EN62368-1, Ed.2:2014

North America

• UL60950-1, CSA 22.2 No 60950-1

Worldwide

• IEC60950-1:2005 Ed.2 + Am 1:2009 + A2:2013
IEC 62368-1:2014

EMC

• EN 55024:2010+A2016/CISPR24:2015

• EN55032:2015/CISPR 32, Class A

• EN55035:2017/CISPR 35

• EN61000-3-2:2014, Class A

• EN61000-3-3:2013

• FCC CFR 47 Part 15:2010, Class A

• ICES-003, Class A

• VCCI Class A

• CNS 13438

• CNS 13438 Class A

Laser

Transceivers

• EN60825-1:2014 / IEC 60825-1: 2014 Class 1

• Class 1 Laser Products / Laser Klasse 1

Mounting

Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; 2-post and 4-post mounting options available; air duct available for 4-post deployments and sold separately

Documentation:

Aruba CX8360 Series Datasheet (.PDF)
