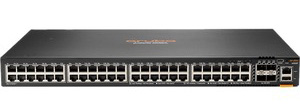

Aruba 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727A)
Cloud-manageable stackable access switch

Aruba CX6200 series

Looking for a better price? Call our Sales team today - 844-356-5141 or click here to request a quote.

Aruba Networks Products
Aruba Wireless Switches
USA: FREE Ground ShippingAruba 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727A)
48 Ports, Manageable, 3 Layer Supported, Modular, 370 W PoE Budget, Twisted Pair, Optical Fiber, PoE Ports, Lifetime Limited Warranty
#JL727A
List Price: $6,559.00
Add to Cart for Our Price

Click here to jump to more pricing!

Overview:

The Aruba CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. Created for game-changing operational efficiency with built-in analytics and automation, the CX 6200 switches provide an enterprise-class access layer solution that’s simple and secure.

Built from the ground up with a combination of cuttingedge hardware, software and analytics and automation tools, the stackable CX 6200 switches are part of the Aruba CX switching portfolio. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the CX 6200 brings industry leading monitoring and troubleshooting capabilities to the access layer

A powerful Aruba Gen7 ASIC architecture delivers reliable performance and enterprise-class feature support with flexible programmability for tomorrow’s applications. The CX 6200 is designed for simple deployment using the intuitive Aruba CX Mobile App that speeds install, configuration and stacking of up to 8 switches. The CX 6200 has built-in high speed uplinks and up to 740W of PoE to support IoT devices such as security cameras and the latest wireless APs.

Aruba Dynamic Segmentation extends Aruba’s foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate

Key Features

  • Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and and common protocols such as static and Access OSPF routing
  • Scalability with 8 member switch VSF stacking
  • Convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE
  • Intelligent monitoring, visibility, and troubleshooting with Aruba Network Analytics Engine
  • Simple, one touch deployment with the Aruba CX Mobile App
  •  Automated configuration and verification with Aruba NetEdit
  • Secure and simple access for users and IoT with Aruba Dynamic Segmentation

Benefits: Stackable access switches

The CX 6200 series brings ease of use and powerful, built-in analytics with troubleshooting capabilities to the access layer.

Reliable performance for your users and IoT

Enterprise-class switching with plenty of built-in PoE, ready to use high-speed uplinks, and automated troubleshooting and insights at the network edge.

Cloud-based management

Designed for campus, branch, remote, and data center networks, Aruba Central delivers full-service AI insights, security, and unified infrastructure management from a cloud-native microservices architecture.

Unparalleled visibility and analytics

Get real-time monitoring and troubleshooting with Aruba Network Analytics Engine (NAE). Embedded in every Aruba CX switch, NAE provides the necessary compute and storage to analyze any event that could impact network health. Offering intelligent pre-processing of data, it can turn raw telemetry into actionable insights.

Secure and simple access with Aruba Dynamic Segmentation

Aruba Dynamic Segmentation extends Aruba’s foundational, wireless, role-based policy capability to Aruba wired switches. That means, regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.

Features:

An enterprise-class access layer solution that’s simple and secure.

This cloud-manageable, stackable access switch series is ideal for enterprise branch offices and campus networks, as well as SMBs.

Enterprise-class connectivity

Supports ACLs, robust QoS, and common protocols such as static and Access OSPF routing.

Power and speed for users and IoT

Built-in 1/10GbE uplinks and up to 740W of Class 4 PoE offers enterprise-class connectivity for all environments.

Scalable growth made simple

Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network to eight members in a single stack using high-performance, built-in SFP ports supporting speeds of 1GbE and 10GbE.

Management flexibility

The fully programmable CX 6200 series supports a choice of management, including cloud-based and on-prem Central, CLI, switch Web GUI and programmability with AOS-CX operating system, and REST APIs.

Product Differentiators:

  • AOS-CX - a modern software system
  • Aruba CX Mobile App – unparalleled deployment convenience
  • Aruba Central - unified single pane of glass management
  • Aruba Network Analytics Engine - advanced monitoring and diagnostics
  • Aruba ASICs - programmable innovation
  • Aruba NetEdit – automated switch configuration and management
  • Aruba Dynamic Segmentation – simple, secure, and scalable segmentation
  • Enterprise-class connectivity for all environments
  • Mobility and IoT performance
  • VSF Stacking - scale and simplicity
  • High availability and resiliency
  • Quality of Service (QoS) features
  • Simplified configuration and management
  • Layer 2 Switching
  • Layer 3 Services
  • Layer 3 Routing
  • Security
  • Multicast
  • Convergence

Specifications:


CX6200 Series Specifications

Aruba 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727A)

Aruba 6200F 48G Class4 PoE 4SFP+ 740W Switch (JL728A)

Description

48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port
4x 1/10G SFP ports
Supports PoE Standards IEEE 802.3af, 802.3at
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
1x Bluetooth dongle to be used with Aruba CX Mobile App

48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port
4x 1/10G SFP ports
Supports PoE Standards IEEE 802.3af, 802.3at
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
1x Bluetooth dongle to be used with Aruba CX Mobile App

Power supplies

Fixed power supply (500W) Up to 370W of Class 4 PoE Power

Fixed power supply (950W) Up to 740W of Class 4 PoE Power

Fans

Fixed fans

Fixed fans

Physical characteristics

Dimensions

(H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73” x 17.4” x 12.9”)

(H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73” x 17.4” x 12.9”)

Configuration Weight

5.05 kg (11.13 lbs)

5.10 kg (11.24 lbs)

Additional Specifications

CPU

Quad Core ARM Cortex™ A72 @ 1.8 GHz

Quad Core ARM Cortex™ A72 @ 1.8 GHz

Memory and Flash

8 GB DDR4 16 GB eMMC

8 GB DDR4 16 GB eMMC

Packet Buffer

8 MB Packet Buffer Memory

8 MB Packet Buffer Memory

Performance

Model Switching Capacity

176 Gbps

176 Gbps

Model Throughput Capacity

Up to 130.9Mpps

Up to 130.9Mpps

Average Latency (LIFO-64-bytes packets)

1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec

1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec

Stack Size

8 members

8 members

Max. Stacking Distance

Up to 10 kms with long range transceivers

Up to 10 kms with long range transceivers

Switched Virtual Interfaces (dual stack)

128

128

IPv4 Host Table (ARP)

8,192

8,192

IPv6 Host Table (ND)

8,192

8,192

IPv4 Unicast Routes

2,048

2,048

IPv6 Unicast Routes

1,024

1,024

MAC Table Capacity

16,000

16,000

IGMP Groups

1,024

1,024

MLD Groups

1,024

1,024

IPv4/IPv6/MAC ACL Entries (ingress)

5,120/1,280/5,120

5,120/1,280/5,120

IPv4/IPv6/MAC ACL Entries (egress)

2,048/512/2,048

2,048/512/2,048

Environment

Operating Temperature

32°F to 113°F (0°C to 45°C) up to 5,000 ft derate -1°C for every 1,000 ft from 5,000 ft to 10,000 ft.

32°F to 113°F (0°C to 45°C) up to 5,000 ft derate -1°C for every 1,000 ft from 5,000 ft to 10,000 ft.

Operating Relative Humidity

15% to 95% @ 104°F (40°C) non‑condensing

15% to 95% @ 104°F (40°C) non‑condensing

Non-Operating

-40°F to 158°F (-40°C to 70°C) up to 15,000 ft

-40°F to 158°F (-40°C to 70°C) up to 15,000 ft

Non-Operating Storage Relative Humidity

15% to 90% @ 149°F (65°C) non‑condensing

15% to 90% @ 149°F (65°C) non‑condensing

Max Operating Altitude

10,000 feet (3.048 km) Max

10,000 feet (3.048 km) Max

Max Non-Operating Altitude

15,000 feet (4.6 km) Max

15,000 feet (4.6 km) Max

Acoustic

Sound Power, LWAd= 4.9 Bel Sound Pressure, LpAm(Bystander) = 32.7 dB

Sound Power, LWAd= 5.3 Bel Sound Pressure, LpAm(Bystander) = 37.1 dB

Primary Airflow

Front and side to back

Front and side to back

Electrical Characteristics

Frequency

50Hz/60Hz

50Hz/60Hz

AC Voltage

100V-120V/200V-240V

100V-127V/200V-240V

Current

7.5A/3.5A

11A/6A

80plus.org Certification

-

80 PLUS Gold

Maximum heat dissipation BTU/hr and kJ/hr

260 BTU/hr

274 kJ/hr

260 BTU/hr

274 kJ/hr

Power Consumption (230 VAC)

Hibernation (0 rpm fan): 10W Idle: 60W 100% Traffic Rate: 76W

Hibernation (0 rpm fan): 12W Idle: 62W 100% Traffic Rate: 76W

Safety

Europe: EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013 EN 62368-1:2014 +A11:2017 US: UL 60950-1 2nd Ed. Canada: CAN/CSA-C22.2 No. 60950-1-07 Worldwide: IEC 60950-1:2005 w/all known National Deviations IEC 62368-1:2014 2nd Ed. Taiwan: CNS-14336-1

Europe: EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013 EN 62368-1:2014 +A11:2017 US: UL 60950-1 2nd Ed. Canada: CAN/CSA-C22.2 No. 60950-1-07 Worldwide: IEC 60950-1:2005 w/all known National Deviations IEC 62368-1:2014 2nd Ed. Taiwan: CNS-14336-1

Emissions

Europe: EN 55032:2015 +AC:2016, Class A EN 55024:2010 EN 55035:2017 EN 61000-3-2:2014 EN 61000-3-3:2013 US: FCC 47 CFR part 15B, Class A Canada: ICES-003 Class A Worldwide: VCCI Class A CISPR 32 Ed 2.0: 2015 + COR1: 2016, Class A CISPR 24:2010 CISPR 35:2016

Europe: EN 55032:2015 +AC:2016, Class A EN 55024:2010 EN 55035:2017 EN 61000-3-2:2014 EN 61000-3-3:2013 US: FCC 47 CFR part 15B, Class A Canada: ICES-003 Class A Worldwide: VCCI Class A CISPR 32 Ed 2.0: 2015 + COR1: 2016, Class A CISPR 24:2010 CISPR 35:2016

Lasers

EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)

EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)

Immunity

Generic

CISPR 35

CISPR 35

EN

EN 55035:2017

EN 55035:2017

ESD

IEC 61000-4-2

IEC 61000-4-2

Radiated

IEC 61000-4-3

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

IEC 61000-4-4

Surge

IEC 61000-4-5

IEC 61000-4-5

Conducted

IEC 61000-4-6

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

IEC 61000-4-11

Harmonics

IEC 61000-3-2, EN 61000-3-2

IEC 61000-3-2, EN 61000-3-2

Flicker

IEC 61000-3-3, EN 61000-3-3

IEC 61000-3-3, EN 61000-3-3

Mounting and Enclosure

Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.

Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.

Documentation:

Aruba CX6200 Series Datasheet (.PDF)
