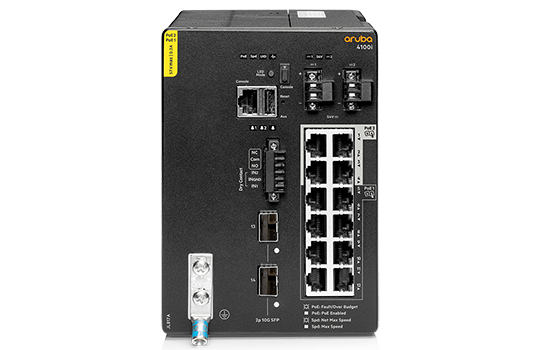

Aruba 4100i 12-port 1GbE (8-port Class 4 POE and 4-port Class 6 POE) 2-port SFP+ DIN Mount Switch (JL817A)
Ruggedized Ethernet access switch

Overview:

The Aruba CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments. Created for high performance, reliable, and secure access, the Aruba CX 4100i switches provide versatile deployment options for enterprise networks extending beyond carpeted areas to challenging outdoor and industrial spaces.

Based on the programmable AOS-CX operating system used across the Aruba CX portfolio for a more efficient operator experience, this IP30 ruggedized series operates in extended temperatures, provides protection for sub-station applications with IEC 61850-3 and IEEE 1613 compliance, and has high tolerances for railway applications.

This Layer 2 access switch has convenient built-in high speed uplinks, supports combination of 30W and 60W PoE with up to a 360W power budget, and relies on passive cooling for the fan less 12 port DIN rail mount model and fan less 24 port 1U rack mount model. With enhanced access security, traffic prioritization, and IPv6 support, the Aruba CX 4100i also implifies ownership and brings peace of mind with no switch software licensing requirements.

As part of Aruba’s Edge Services Platform (ESP), Aruba CX switches play a foundational role in the Unified Infrastructure. Automation, embedded analytics, high availability, and secure segmentation are designed into CX switches with Aruba Central delivering a unified, single view of the network that maximizes operational efficiency across enterprise networks. Aruba Dynamic Segmentation extends Aruba’s foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.

What's New

• Ruggedized Layer 2 switch series provides high performance, fully manageable, and reliable, Ethernet connectivity to IoT, access points, and user devices in harsh environments. Versatile form factors with fast 1/10GbE uplinks deliver both 30W and 60W PoE to improve IoT power.


• Layer 2 feature set with static routing and no switch software licensing required.


• Aruba Dynamic Segmentation 1 enables enhanced security and simplified access for users and IoT.


• Management flexibility with support for Aruba Central, easy-to-use Web GUI, CLI, and Aruba NetEdit.

Features:

Ruggedized Aruba CX Switches

The Aruba CX 4100i Switch Series provides IP30 Ethernet connectivity with high speed uplinks, 30W and 60W PoE, to securely extend the enterprise network and support IoT in harsh environments.

Using Aruba AOS-CX operating system across Aruba CX switching platforms and deployment domains provides a simpler, more consistent operator experience.

Achieve versatile deployment with fan less 12 port DIN rail mount and 24 port 1U rack mount models with built-in 1/10GbE uplinks and up to 360W Class 4 and Class 6 PoE.

Fully-managed enterprise class switches deliver Layer 2 capabilities with support for static routing, ACLs, robust QoS, traffic prioritization, and IPv6 support.

Simplifies ownership with no switch software licensing or subscriptions required.

Performance and Power

The Aruba CX 4100i Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.

Deploy IoT devices and wireless access points in harsh environments with models that support up to 360W IEEE 802.3at Class 4 and IEEE 802.3.bt Class 6 Power over Ethernet.

Built-in wire speed 1/10GbE uplinks remove bottlenecks at the access layer where devices connect.

Operational in extended temperatures from -40°C to 70°C using Aruba's industrial transceivers.

Simplified Configuration and Management

The Aruba CX 4100i Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, easy to use built-in web GUI, or industry standard CLI.

Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.

Software-defined ready with REST APIs for fine-grained programmability of network tasks.

Smarter Segmentation

The Aruba CX 4100i Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.

Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.

Reduces time-consuming and error-prone task of adds, moves and changes.

Product Differentiators:

• AOS-CX - a modern software system
• Aruba ASICs - programmable innovation
• Aruba Central - unified single pane of glass management
• Aruba NetEdit – automated switch configuration and management
• Aruba Dynamic Segmentation – simple, secure, and scalable segmentation
• Mobility and IoT performance
• Ruggedized, enterprise-class connectivity
• Resiliency and availability
• Quality of Service (QoS) features
• Simplified configuration and management
• Layer 2 Switching
• Layer 3 Services
• Layer 3 Routing
• Multicast
• IPv6 capabilities
• Security
• Convergence

Specifications:

CX4100i Series Specifications
	Aruba 4100i 12-port 1GbE (8-port Class 4 POE and 4-port Class 6 POE) 2-port SFP+ DIN Mount Switch (JL817A)	Aruba 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6 POE) 4-port SFP+ Switch (JL818A)
Description	4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port 8x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port 2x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) 1x USB-C Console Port 1x RJ Console 1x USB Type A Host port 1x Alarm socket 2x DC power socket	4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port 20x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port 4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) 1x USB-C Console Port 1x RJ Console 1x USB Type A Host port 1x Alarm socket
Power supplies	Field replaceable Industrial DIN Rail Power Supplies Supported PSUs: JL819A, JL820A and JL821A Supported 2 PSU with redundancy, non sharing See external PSU specification table for available PoE power	Fixed internal power supply (300W) 240W of PoE Power (no de-rating)
Fans	Fanless	Fanless
Physical characteristics
Dimensions	(H) 160 mm x (W) 113 mm x (D) 162.9 mm (173.5 mm w/DIN Rail Bracket) [6.3″ x 4.4″ x 6.4″(6.8″ w/DIN Rail Bracket)]	(H) 44 mm x (W) 444.5 mm x (D) 304.4 mm 1.73″ x 17.5″ x 12.0″
Configuration Weight	3.84 kg (8.46 lbs)	6.50 kg (14.33 lbs)
Additional Specifications
CPU	Dual Core ARM Cortex A9 @ 1016 Mhz	Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash	4 GB DDR3 32 GB eMMC	4 GB DDR3 32 GB eMMC
Packet Buffer	12.38MB (4.5MB Ingress/7.875MB Egress)	12.38MB (4.5MB Ingress/7.875MB Egress)
Performance
Model Switching Capacity	up to 64 Gbps	up to 128 Gbps
Model Throughput Capacity	up to 46 Mpps	up to 95 Mpps
Average Latency (LIFO-64-bytes packets)	1 Gbps: 2.390 μSec , 10 Gbps: 2.038 μSec	1 Gbps: 1.585 μSec , 10 Gbps: 1.243 μSec
Switched Virtual Interfaces (dual stack)	16	16
IPv4 Host Table (ARP)	756	756
IPv6 Host Table (ND)	576	576
IPv4 Unicast Routes	576	576
IPv6 Unicast Routes	576	576
MAC Table Capacity	8,192	8,192
IGMP Groups	512	512
MLD Groups	512	512
IPv4/IPv6/MAC ACL Entries (ingress)	256 / 128 / 256	256 / 128 / 256
Environment
Operating Temperature	-40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM) -40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM) -34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM)	-40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM) -40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM) -34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM)
Non-Operating Storage relative humidity	5% to 95%, non-condensing	5% to 95%, non-condensing
Max Operating Altitude	up to 4.2 km (13800 ft) Max	up to 4.2 km (13800 ft) Max
Max Non-Operating Altitude	4.6 km (15000 ft) Max	4.6 km (15000 ft) Max
Electrical Characteristics
Frequency	N/A	50 / 60 Hz
AC Voltage	Refer to the PSU specification table	100V-240V
DC Input Voltage	54V (switch input voltage, provided by JL819A, JL820A, JL821A)	N/A
Current	JL820A- max 8A (360W PoE) JL819A, JL821A- max 4.4A (180W PoE)	max 3.9A/1.9A (240W PoE)
Maximum heat dissipation BTU/hr	With JL819A PSU: 89 BTU/hr at 230V - Room temperature (25°C) With JL820A PSU: 95 BTU/hr at 230V - Room temperature (25°C) With JL821A PSU: 94 BTU/hr at 48V - Room temperature (25°C)	117 BTU/hr at 230V - Room temperature(25°C)
Power Consumption (JL819A, JL820A- 230VAC) (JL821A- 48VDC)	With JL819A PSU: Idle: 22W 100% Traffic Rate: 26W 100% Traffic Rate (w/ heater): 55W With JL820A PSU: Idle: 24W 100% Traffic Rate: 28W 100% Traffic Rate (w/ heater): 57W With JL821A PSU: Idle: 22W 100% Traffic Rate: 27W 100% Traffic Rate (w/ heater): 56W *Heater will only turn on at extreme low temperature condition	Idle: 23W 100% Traffic Rate: 34W 100% Traffic Rate (w/ heater): 62W *Heater will only turn on at extreme low temperature condition
Safety
	North America: UL 62368-1, 2nd Edition CAN/CSA C22.2 No. 62368-1-14 Worldwide: IEC 60950-1:2005 Ed.2 + Am 1:2009 + A2:2013 IEC 62368-1:2014 EN/IEC 60825-1:2014 Class 1 UL/IEC 61010-2-201 GB 4943.1:2011 CNS 14336-1 K 60950-1	North America: UL 62368-1, 2nd Edition CAN/CSA C22.2 No. 62368-1-14 Worldwide: IEC 60950-1:2005 Ed.2 + Am 1:2009 + A2:2013 IEC 62368-1:2014 EN/IEC 60825-1:2014 Class 1 UL/IEC 61010-2-201 GB 4943.1:2011 CNS 14336-1 K 60950-1
EMC
	US: FCC CFR 47 Part 15: 2018 Class A Worldwide: VCCI Class A, CISPR 11 Class A, CISPR 22 Class A, CISPR 32 Class A	US: FCC CFR 47 Part 15: 2018 Class A Worldwide: VCCI Class A, CISPR 11 Class A, CISPR 22 Class A, CISPR 32 Class A
Lasers
	EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only	EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only
Industry Specific Compliance
Industrial	EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity	EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity
Power Substation	IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking	IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking
Railway Application	EN 50121-3-2 Railway - Apparatus for Rolling Stock EN 50121-4 Railway – Signaling and Telecommunications Apparatus EN 50155/IEC 60571 - Railway applications, Rolling stock, Electronic equipment	EN 50121-3-2 Railway - Apparatus for Rolling Stock EN 50121-4 Railway – Signaling and Telecommunications Apparatus EN 50155/IEC 60571 - Railway applications, Rolling stock, Electronic equipment
Traffic Control System	NEMA TS 2-2016	NEMA TS 2-2016
Protection Standard	EN 60529 IP30	EN 60529 IP30
Immunity
Generic	EN 55035, CISPR 35, KN35	EN 55035, CISPR 35, KN35
EN	EN 55035, CISPR 35	EN 55035, CISPR 35
ESD	EN 61000-4-2 (air – 15kV, contact – 8kV)	EN 61000-4-2 (air – 15kV, contact – 8kV)
Radiated	EN 61000-4-3 (10V/m UTP, 20V/m STP)	EN 61000-4-3 (10V/m UTP, 20V/m STP)
EFT/Burst	EN 61000-4-4 4kV (1kV UTP, 4kV STP) using: - JL819A, JL820A with SPD2-300-2P0-R surge protector - JL821A with SPD2-150-2P0-R surge protector needed. Without surge protector and STP: - JL819A or JL820A PSU: 2kV - JL821A PSU: 1kV	EN 61000-4-4 4kV (1kV UTP, 4kV STP)
Surge	EN 61000-4-5 2kV/4kV(UTP) using: - JL819A, JL820A with SPD2-300-2P0-R surge protector - JL821A with SPD2-150-2P0-R surge protector Without surge protector: - JL819A or JL820A PSU: 1kV/2kV - JL821A PSU: N/A	EN 61000-4-5 2kV/4kV(UTP)
Conducted	EN 61000-4-6 (3Vrms UTP, 10Vrms STP)	EN 61000-4-6 (3Vrms UTP, 10Vrms STP)
Power frequency magnetic field	EN 61000-4-8 (100A/m 1min,1000A/m 1sec)	EN 61000-4-8 (100A/m 1min,1000A/m 1sec)
Damped Oscillatory Magnetic Field	EN 61000-4-10 (100A/m)	EN 61000-4-10 (100A/m)
Conducted CM Disturbances	EN 61000-4-16 (30V, Cont/300V, 1 sec)	EN 61000-4-16 (30V, Cont/300V, 1 sec)
Ripple Immunity DC Power	EN 61000-4-17 (10%)	EN 61000-4-17 (10%)
Damped Oscillatory Wave	EN 61000-4-18 (2.5kV, 1MHz)	EN 61000-4-18 (2.5kV, 1MHz)
Voltage Dips and interruptions	EN 61000-4-29; EN 61000-4-11 (Level 3)	EN 61000-4-29; EN 61000-4-11 (Level 3)
Harmonics	EN 61000-3-2, IEC 61000-3-2	EN 61000-3-2, IEC 61000-3-2
Flicker	EN 61000-3-3, IEC 61000-3-3	EN 61000-3-3, IEC 61000-3-3
Dynamics
Vibration	IEC 60068-2-6 & 64 (operation & nonoperation)	IEC 60068-2-6 & 64 (operation & nonoperation)
Shock	IEC 60068-2-27 (Operational Shock, 30G, 18ms, Half-Sine) IEC 60068-2-27 (Non-operational Shock, 50G, 11ms, Trapezoidal) IEC 60068-2-31 (Non-operational Free Fall, 100mm) IEC 60068-2-31 (Non-operational Topple)	IEC 60068-2-27 (Operational Shock, 30G, 18ms, Half-Sine) IEC 60068-2-27 (Non-operational Shock, 50G, 11ms, Trapezoidal) IEC 60068-2-31 (Non-operational Free Fall, 100mm)
Railway Application	Compliance to EN 50155 (mounting) & IEC 61373	Compliance to EN 50155 (mounting) & IEC 61373
Mounting and Enclosure
	Mounts to JL822A (3U DIN-to-Rack Bracket, puchased separately) which allows the switch to be mounted in an EIA/TIA standard 19″ telco rack. Switch can be directly installed on a DIN rail mounted to a suitable surface to withstand the weight of the switch and power supplies. DIN rail mounting (included). Can be mounted in 90-degree manner to present the cables exiting the side of the switch - see installation guide for details.	Mounts to an EIA/TIA standard 19″ telco rack. Mounting brackets included with product. Can be wall-mounted, flush against wall with ports facing down only - see installation guide for details.
Wire
Power Input	AWG 14 up to 2m	C15 Connector
Alarm connector	AWG 18-16	AWG 18-16
PoE Budget
	User configurable PoE budget - If 2 external power supply units are used concurrently, please set according to PSU with lower PoE capacity. JL819A — Below ambient 50°C: 180W At ambient 60°C: 140W At ambient 70°C: 80W JL820A — Below ambient 50°C: 360W At ambient 60°C: 320W At ambient 70°C: 200W JL821A — With PSU input = 48V-55V DC Below ambient 50°C: 180W At ambient 60°C and 70°C: 150W With PSU input = 24V DC Below ambient 70°C: 150W With PSU input = 12V DC Below ambient 60°C: 60W At ambient 70°C: 50W Does not support PSU Power Sharing. Refer to Installation & Getting Started Guide for the PoE budget setup.	240W no derating

External Power Supply Specifications
Specifications (for use with JL817A Aruba CX 4100i Switch)	Aruba 4000i POE 54VDC 240W 100-240VAC DIN Power Supply (JL819A)	Aruba 4000i POE 54VDC 480W 100-240VAC DIN Power Supply (JL820A)	Aruba 4000i POE 54VDC 240W 12-48VDC DIN Power Supply (JL821A)
Description	Universal AC input voltage 1x Input socket 1x Output socket	Universal AC input voltage 1x Input socket 1x Output socket	DC input voltage 1x micro-USB interface for control and monitoring 1x LCD Display 1x Input socket 1x Output socket
Physical characteristics
Dimensions	(H) 121 mm x (W) 85 mm x (D) 124.1 mm (4.76″ x 3.35″ x 4.88″)	(H) 121 mm x (W) 144 mm x (D) 118.6 mm (4.76″ x 5.67″ x 4.67″)	(H) 115 mm x (W) 40 mm x (D) 110 mm (4.52″ x 1.57″ x 4.33″)
Configuration Weight	0.96 kg (2.12 lbs)	1.37 kg (3.02 lbs)	0.4 kg (0.88 lbs)
Environment
Operating Temperature	-40°C to 49°C no derating Vertical: 50°C de-rate power by 2.5% / °C Horizontal: 40°C de-rate power by 2.5% / °C	-40°C to 49°C no derating > 50°C de-rate power by 2.5% / °C > 70°C de-rate power by 5% / °C	-40°C to 70°C with derating
Operating Relative Humidity	5% to 95%, non-condensing	5% to 95%, non-condensing	5% to 95%, non-condensing
Non-Operating	-40°C to 85°C (-40°F to 185°F )	-40°C to 85°C (-40°F to 185°F )	-40°C to 85°C (-40°F to 185°F )
Non-Operating Storage relative humidity	5% to 95%, non-condensing	5% to 95%, non-condensing	5% to 95%, non-condensing
Max Operating Altitude	up to 4.2 km (13800 ft) Max	up to 4.2 km (13800 ft) Max	up to 4.2 km (13800 ft) Max
Max non-operating Altitude	4.6 km (15000 ft) Max	4.6 km (15000 ft) Max	4.6 km (15000 ft) Max
Electrical Characteristics
Frequency	50Hz/60Hz	50Hz/60Hz	N/A
AC Voltage	100V-240V	100V-240V	N/A
DC Input Voltage	N/A	N/A	12V-48V nominal UL Certified to: 11V-55V
Current	6A/3A	3.5A/1.3A	12A
Dynamics
Vibration	IEC 60068-2-6IEC 60068-2-6	IEC 60068-2-6	IEC 60068-2-6
Shock	IEC 60068-2-27 & 29	IEC 60068-2-27 & 29	IEC 60068-2-27
Mounting and Enclosure
	Mounts to JL822A (3U DIN-to-Rack Bracket, purchase separately) attached to an EIA-standard 19″ telco rack or equipment cabinet which has DIN rail installed. DIN rail mounting. Vertical mounting only	Mounts to JL822A (3U DIN-to-Rack Bracket, purchase separately) attached to an EIA-standard 19″ telco rack or equipment cabinet which has DIN rail installed. DIN rail mounting. Vertical mounting only	Mounts to JL822A (3U DIN-to-Rack Bracket, purchase separately) attached to an EIA-standard 19″ telco rack or equipment cabinet which has DIN rail installed. DIN rail mounting. Vertical mounting only
Wire
Power Input	AWG 16-12	AWG 16-10	AWG 12
Power Output	AWG 14 up to 2m	AWG 14 up to 2m	AWG 14 up to 2m
PoE Budget
Input operating range	AC 100-240V	AC 100-240V	Nominal to 12-48 VDC UL certified to 11-55 VDC
PoE Power Budget below 50°C ambient (-40°C to 50°C)	180W	360W	180W with input = 48V-55V DC 150W with input = 24V DC 60W with input = 12V DC
PoE Power Budget with 60°C ambient	140W	320W	150W with input = 48V-55V DC 150W with input = 24V DC 60W with input = 12V DC
PoE Power Budget with 70°C ambient	80W	200W	150W with input = 48V-55V DC 150W with input = 24V DC 50W with input = 12V DC
De-rating condition for PSU	De-rating for Vertical Mounting Orientation > 50°C de-rate power by 2.5% / °C De-rating for Horizontal Mounting Orientation > 40°C de-rate power by 2.5% / °C	De-rating for Vertical Mounting Orientation > 50°C de-rate power by 2.5% / °C > 70°C de-rate power by 5% / °C

Documentation:

Aruba CX 4100i Switch Series Datasheet (.PDF)
